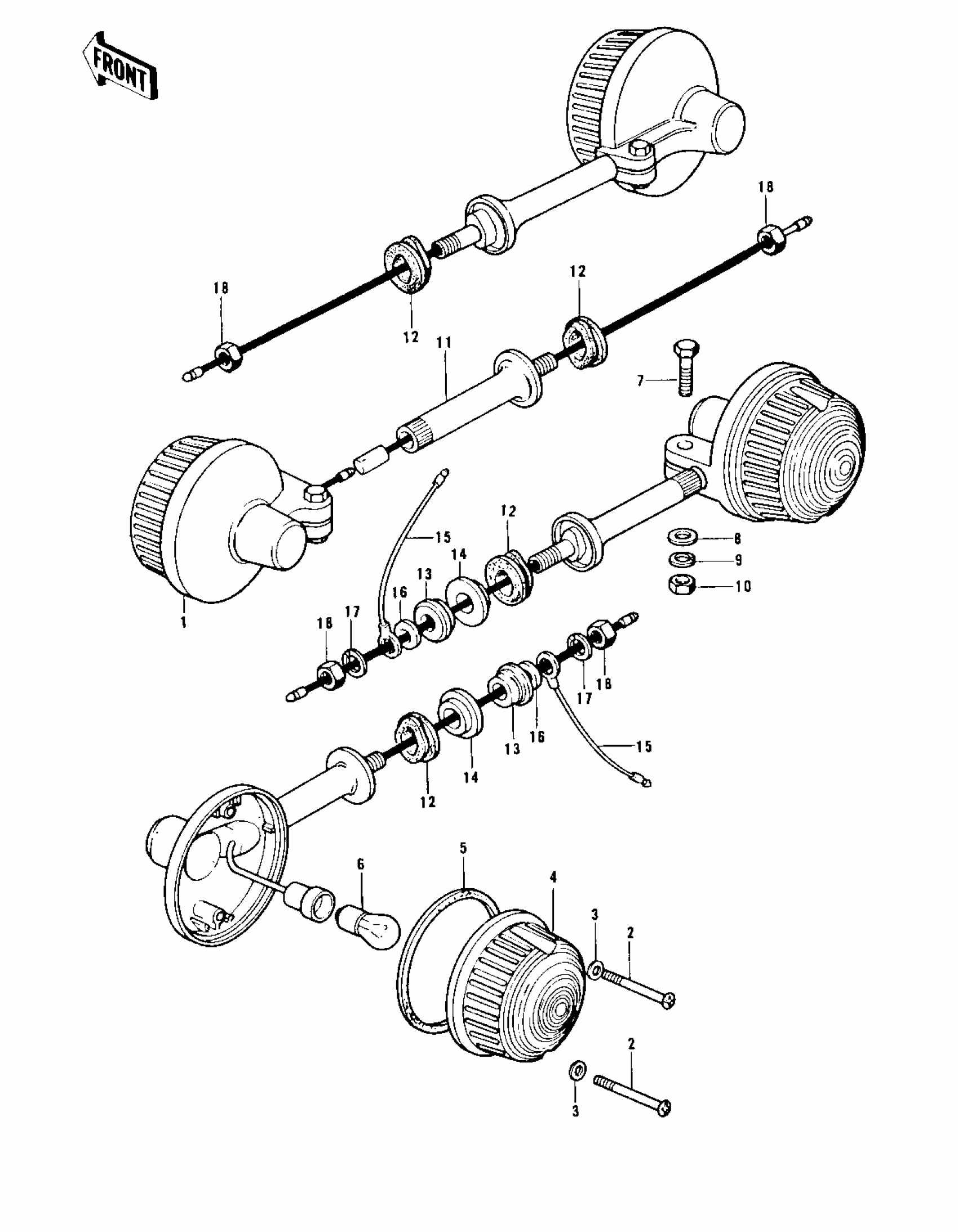

Kawasaki Z1 TURN SIGNAL Diagram

#

Description

Price

1

LAMP ASSY,TURN SIGNAL

23040-034

Unavailable

2

SCREW-PAN HEAD,4X35

220E0435A

Unavailable

3

WASHER,PLAIN,4MM

23058-002

Unavailable

4

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

Unavailable

5

GASKET,TURN SIGNAL LAMP

23050-002

Unavailable

6

BULB,12V 32CP(23W)

92069-055

Unavailable

7

BOLT-UPSET

110N0630

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

310B0600

Unavailable

11

BRACKET-TURN SIG LAMP

23078-001

Unavailable

12

DAMPER,LAMP

92075-128

Unavailable

13

COLLAR

92027-147

Unavailable

14

DAMPER RUBBER,SIG LM

92075-158

Unavailable

15

LEAD WIRE,SIGNAL LAMP

26011-063

Unavailable

16

WASHER,10.5X20X1

92022-239

Unavailable

17

WASHER SPRING 10MM

461F1000

Unavailable

18

NUT-HEX-FINE,10MM

315B1000

Unavailable
