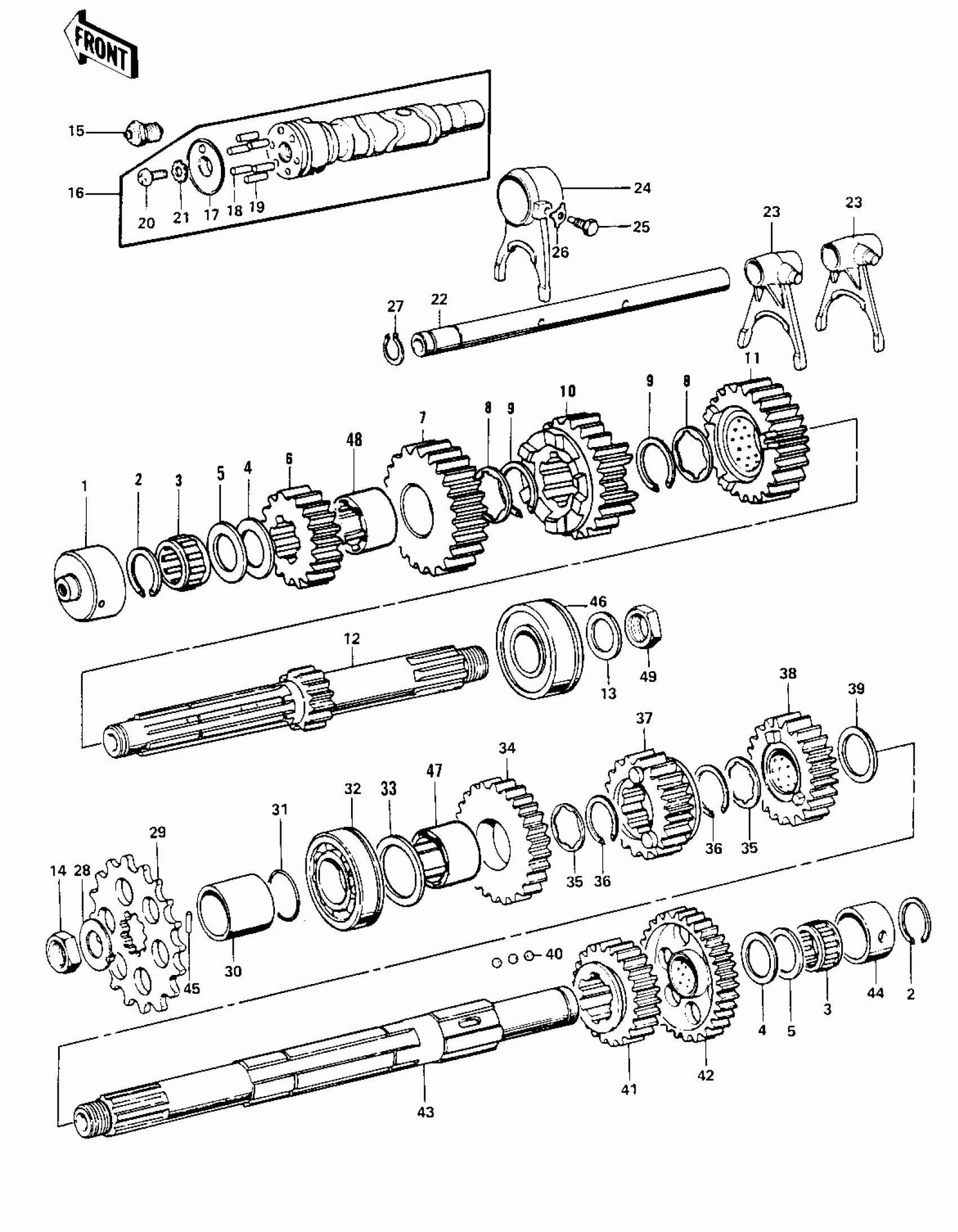

Kawasaki Z1 TRANSMISSION/CHANGE DRUM Diagram
#
1
BUSH,DRIVE SHAFT
92028-122
Unavailable
2
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
3
BEARING-NEEDLE,FWF-223014
92046-031
Unavailable
4
SPACER,22X35.5X1.0
92026-1020
Unavailable
5
WASHER,22.3X35X1.6
92022-212
Unavailable
5
WASHER,22.3X35X1.2
92022-213
Unavailable
6
2ND GER,DRIVE SHAFT
13130-032
Unavailable
7
TOP GEAR,DRIVE SHAFT
13136-042
Unavailable
8
WASHER,TOOTHED,26X35.5X1.5
92024-042
Unavailable
9
CIRCLIP-TYPE-C,28MM
480J2800
Unavailable
10
3RD GEAR,DRIVE SHAFT
13132-030
Unavailable
11
4TH GEAR,DRIVE SHAFT
13134-016
Unavailable
12
SHAFT,DRIVE 12T
13127-042
Unavailable
13
WASHER
92125-002
Unavailable
14
NUT,20MM
92016-043
Unavailable
15
SWITCH,NEUTRAL
13151-018
Unavailable
16
DRUM ASSY,GEAR CHANG
13239-1010
Unavailable
16
DRUM ASSY,GEAR CHANG
13239-1010
Unavailable
17
PLATE,GEAR CHNG DRUM
13142-013
Unavailable
17
HOLDER,CHANGE DRUM PIN
13091-1088
Unavailable
18
PIN,DOWEL,4X17.8
92042-020
Unavailable
19
PIN,DOWEL,4X15.8
92042-014
Unavailable
20
SCREW PAN HEAD 6X12
220B0612
Unavailable
21
WASHER LOCK 6MM
464G0600
Unavailable
22
ROD,SHIFT
13209-011
Unavailable
23
FORK,SELECTOR,4TH&TOP
13140-045
Unavailable
24
FORK,SELECTOR,3RD
13140-046
Unavailable
25
PIN SELECT FORK GUIDE
92043-016
Unavailable
26
WASHER LOCK 10MM
92031-001
Unavailable
27
CIRCLIP-TYPE-C,12MM
480J1200
Unavailable
28
WASHER,LOCK,20MM
92024-044
Unavailable
29
ENGINE SPROCKET 15T
13144-062
Unavailable
29
ENGINE SPROCKET 15T
13144-062
Unavailable
30
COLLAR,ENG SPROCKET
92027-288
Unavailable
31
RING-O
92055-035
Unavailable
32
BEARING,BL305 256217
92045-021
Unavailable
33
WASHER,PLAIN,25MM
92022-210
Unavailable
34
2ND GEAR,OUTPUT SHAF
13131-038
Unavailable
35
WASHER,TOOTHED,30.3X40X1.5
92024-043
Unavailable
36
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
37
TOP GEAR,OUTPUT SHAF
13129-1214
Unavailable
37
TOP GEAR,OUTPUT SHAF
13129-1214
Unavailable
38
3RD GEAR,OUTPUT SHAF
13133-031
Unavailable
39
WASHER,PLAIN,30MM
92022-209
Unavailable
40
BALL-STEEL,3/16
600A0600
Unavailable
41
4TH GEAR,OUTPUT SHAF
13135-020
Unavailable
42
LOW GER,OUTPUT SHAFT
13129-046
Unavailable
43
SHAFT,OUTPUT
13128-5006
Unavailable
43
SHAFT,OUTPUT
13128-5006
Unavailable
44
BUSHING,OUTPUT SHAFT
92028-123
Unavailable
45
PIN
92043-109
Unavailable
46
BEARING-BALL,5305NSH2
92045-1028
Unavailable
47
BUSHING,2ND GEAR
92028-1005
Unavailable
48
BUSHING,TOP GEAR
92028-1124
Unavailable
49
NUT,20MM
92016-043
Unavailable
49
NUT,20MM
92015-1555
Unavailable
49
NUT,20MM
92015-1555
Unavailable
