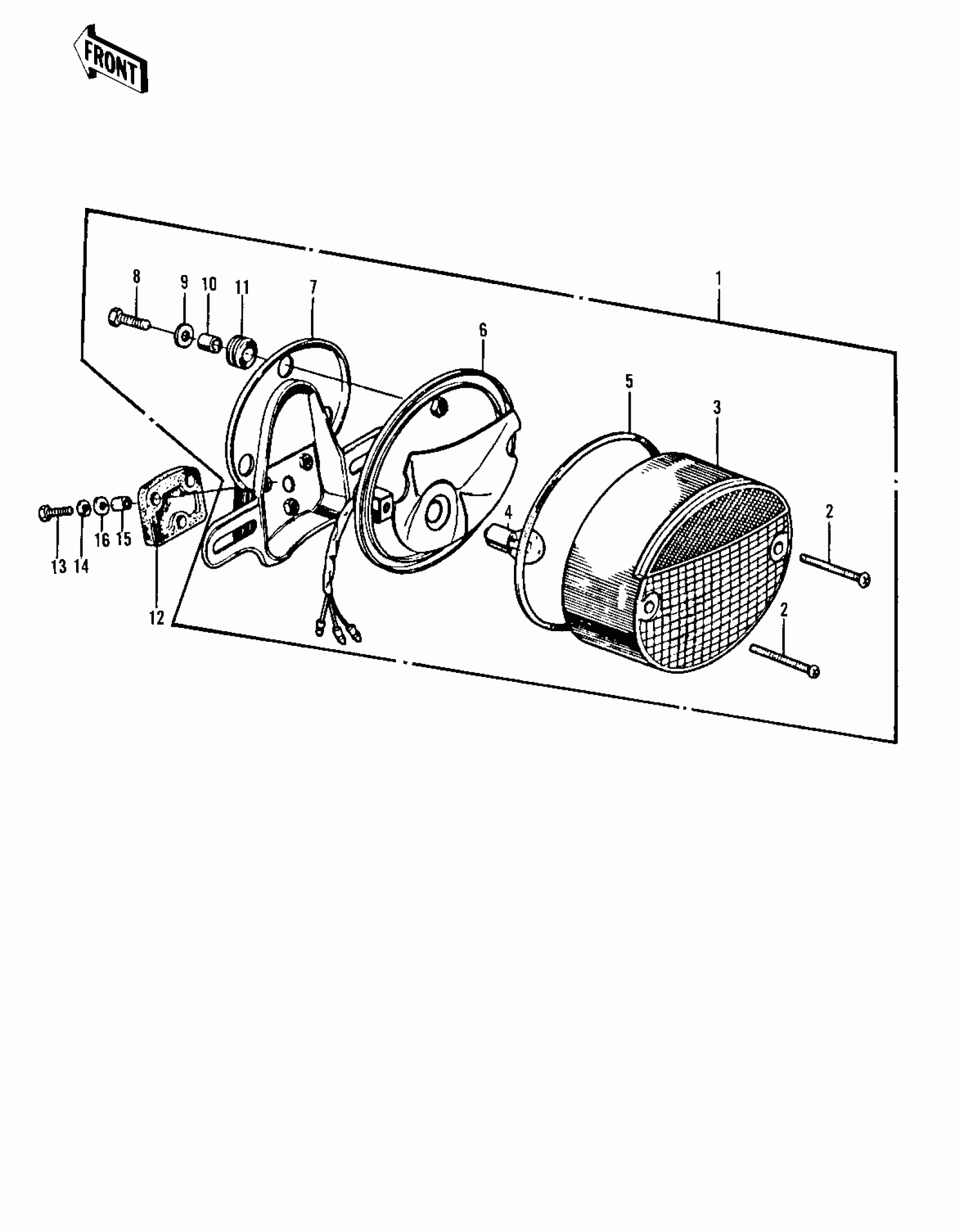

Kawasaki Z1 TAILLIGHT Diagram

#

Description

Price

1

LAMP ASSY,TAIL

23024-018

Unavailable

2

SCREW-PAN HEAD,4X35

220E0435A

Unavailable

3

LENS-TAIL LAMP

23026-023

Unavailable

4

BULB,12V 27/8W

92069-059

Unavailable

5

GASKET-TAIL LAMP LENS

23028-018

Unavailable

6

CASE,TAIL LAMP

23027-030

Unavailable

7

BRACKET,TAIL LAMP

23036-017

Unavailable

8

BOLT-UPSET,6X20

112G0620

Unavailable

9

WASHER,6.5X20X1.6

92022-125

Unavailable

10

COLLAR,6.8X10X8.5

92027-129

Unavailable

11

DAMPER RUBBER

92075-076

Unavailable

12

DAMPER,TAIL LAMP

35039-004

Unavailable

13

BOLT-UPSET

112G0625

Unavailable

14

WASHER SPRING 6MM

461F0600

Unavailable

15

COLLAR,6.8X10X14.5

92027-156

Unavailable

16

DAMPER,FENDER

92075-121

Unavailable
