1975 Kawasaki Z1 Seat/chain Cover Diagram

← All diagrams

Find the part on the Seat/chain Cover diagram for your 1975 Kawasaki Z1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

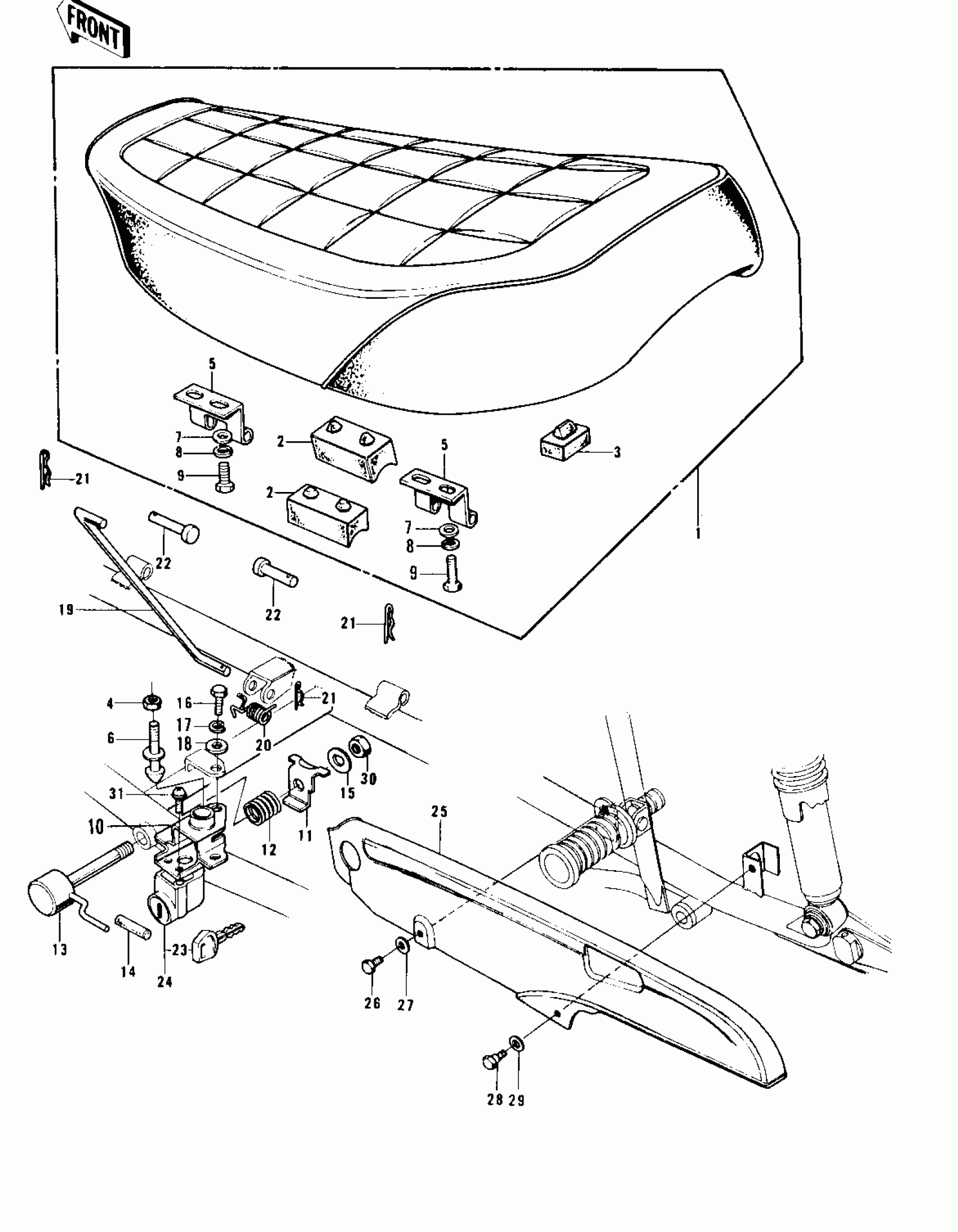

1975 Kawasaki Z1 Seat/chain Cover Diagram

#

Description
Price
Status
Order Qty

1

SEAT-ASSY,DUAL

53001-076

Out of stock

2

DAMPER RUBBER,SEAT

92075-139

Out of stock

3

DAMPER

92075-099

Out of stock

4

NUT 8MM

312B0800

Out of stock

5

HINGE,SEAT

53009-017

$11.02

In stock

6

LOCK,DUAL SEAT

53056-001

Out of stock

7

WASHER PLAIN 6MM

411B0600

Out of stock

8

WASHER SPRING 6MM

461F0600

Out of stock

9

BOLT-UPSET 6X14

116B0614

Out of stock

10

BODY,SEAT LOCK

53050-001

$12.53

In stock

11

PLATE,SEAT LOCK

53051-001

Out of stock

12

SPRING,SEAT LOCK LEVR

53053-001

Out of stock

13

LEVER,SEAT LOCK

53052-001

$118.28

In stock

14

CAP,LEVER

92102-011

Out of stock

15

WASHER,LOCK

92088-017

Out of stock

16

BOLT-HEX HEAD,6X16

110N0616

Out of stock

17

WASHER SPRING 6MM

461F0600

Out of stock

18

WASHER PLAIN 6MM

411B0600

Out of stock

19

HOOK SEAT

53054-001

$14.56

In stock

20

SPRING,SEAT HOOK

53055-001

Out of stock

21

COTTER PIN

92041-003

Out of stock

22

PIN,6X48

53011-002

$4.72

In stock

23

Not Available As Spare Part - Friction Washer

Out of stock

24

LOCK ASSY,SEAT

27030-001

Out of stock

25

CASE-CHAIN

36014-061

$238.99

In stock

26

BOLT HEX HEAD 6X18

110N0618

Out of stock

27

WASHER,6.5X20X1.6

92022-125

Out of stock

28

BOLT,HEAX HEAD,6X14

92001-115

Out of stock

29

WASHER,8.5X20X1.6

92022-1561

Out of stock

30

UNAVAILABLE IN PRICE BOOK

132B0600

Out of stock

31

SCREW PAN HEAD 5X14

220B0514A

Out of stock
