1975 Kawasaki Z1 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1975 Kawasaki Z1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

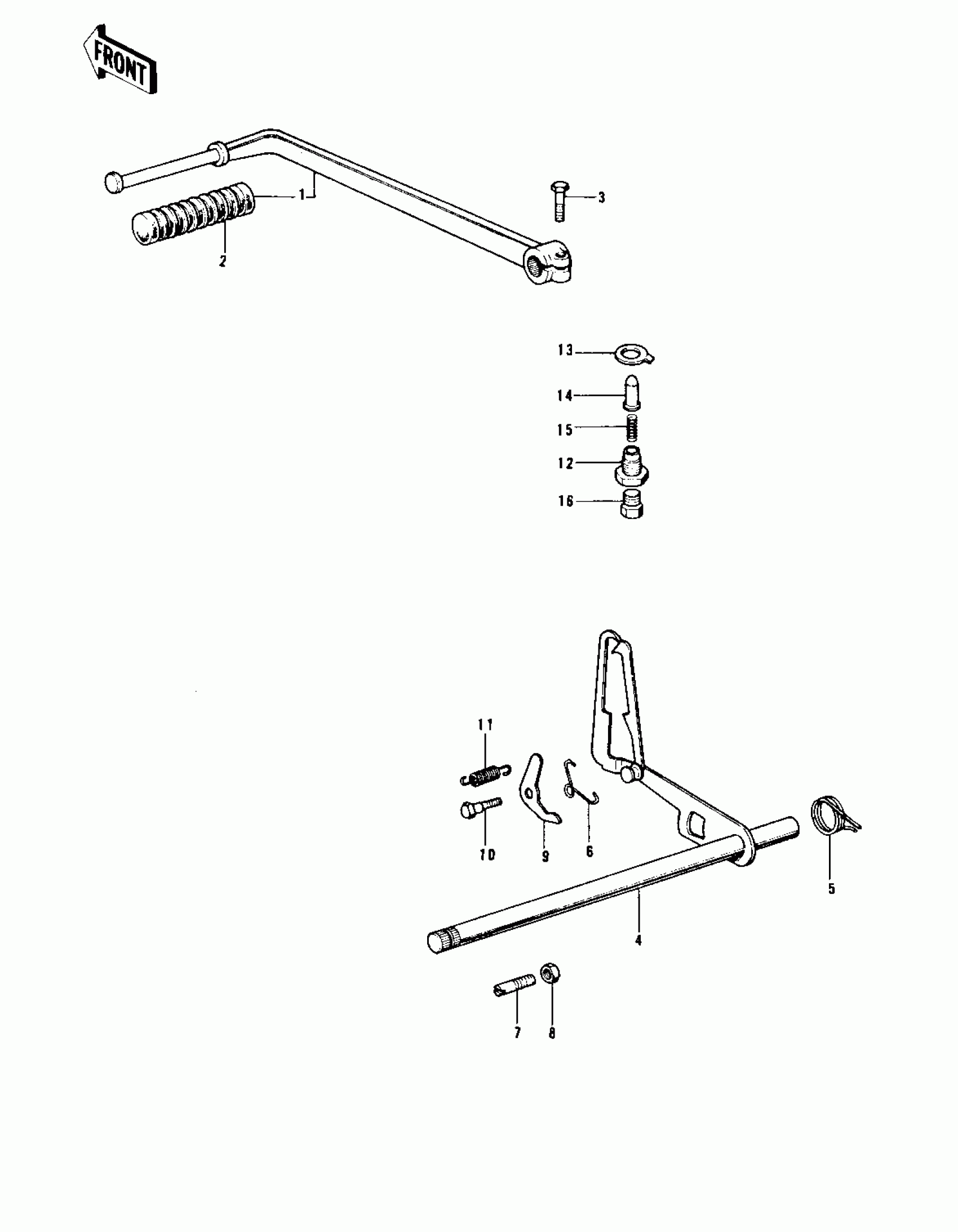

1975 Kawasaki Z1 Gear Change Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL ASSY,GEAR CHAN

13242-006

Out of stock

2

DAMPER,CHANGE PEDAL

13157-004

Out of stock

3

BOLT-UPSET

112N0620

Out of stock

4

LEVER ASSY GEAR CHNG

13161-029

Out of stock

5

SPRING,CHG PEDL RTN

92083-021

Out of stock

5

SPRING,CHG PEDL RTRN

92083-028

Out of stock

6

SPRING

92083-018

Out of stock

7

PIN CHANGE PEDAL SPRG

92043-057

Out of stock

8

NUT 8MM

312B0800

Out of stock

9

LEVER,GEAR CHNG DRUM

13168-024

Out of stock

10

BOLT,CHANGE DRUM LEVER

92150-1450

Out of stock

11

SPRING,NEUTRAL POSITION

92081-051

Out of stock

12

BOLT,CHG DRUM POSITN

92001-112

Out of stock

13

WASHER,LOCK

92024-047

Out of stock

14

PIN

92043-085

Out of stock

15

SPRING

92081-106

Out of stock

16

BOLT

92001-119

Out of stock
