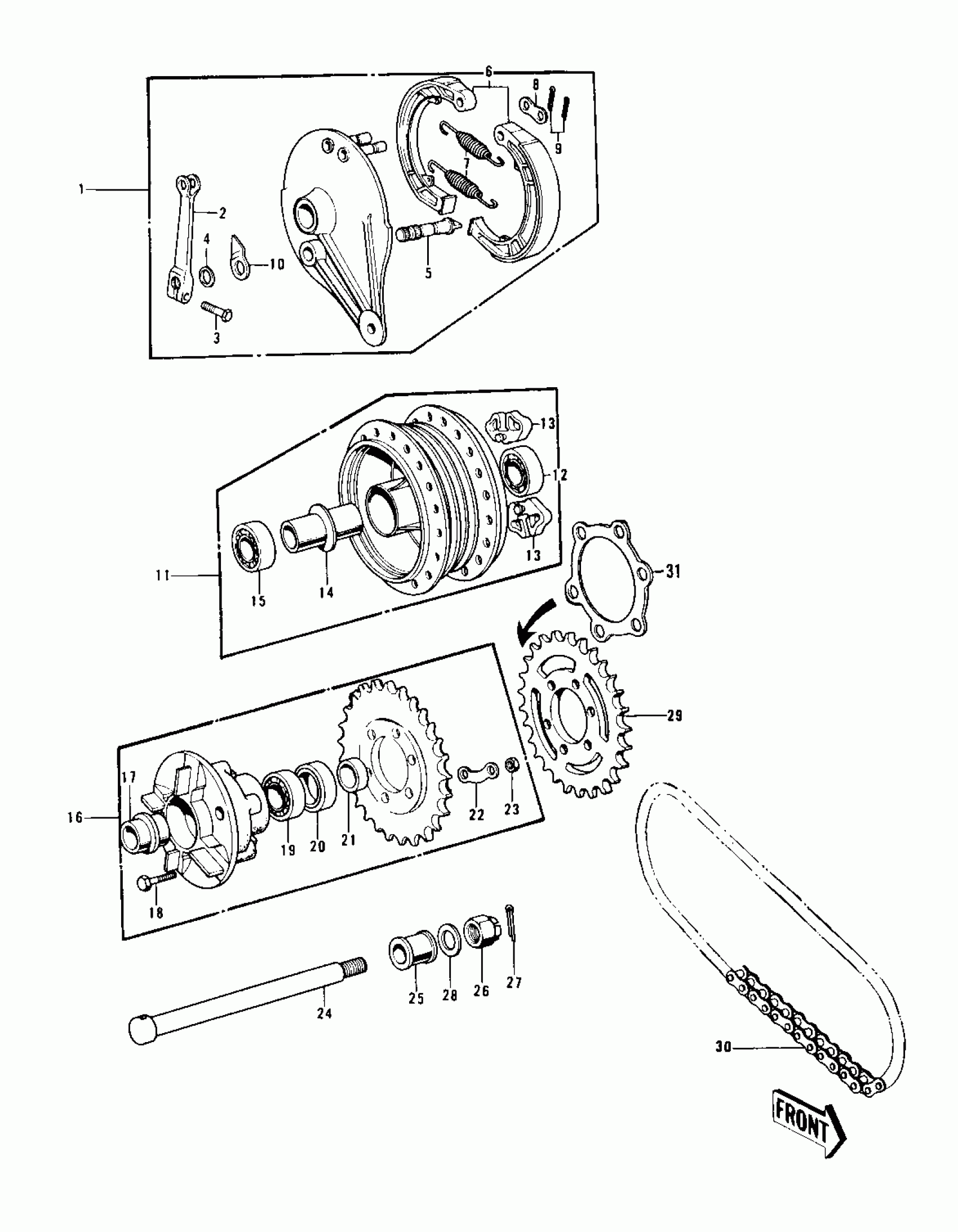

Kawasaki Z1 REAR HUB/BRAKE/CHAIN Diagram
#
1
PANEL ASSY, REAR BRAKE, FLAT BLACK
42006-030-21
Unavailable
1
PANEL ASSY, REAR BRAKE, BUFF FINISH
42006-030-80
Unavailable
1
PANEL ASSY, REAR BRAKE
42006-053
Unavailable
2
LEVER, REAR BRAKE CAM
42029-021
Unavailable
2
LEVER,REAR BRAKE CAM
42029-033
Unavailable
3
BOLT, HEX HEAD, 8 X 25
110B0825
Unavailable
4
SEAL,BRAKE CAM
41051-003
Unavailable
5
CAM SHAFT-BRAKE
41050-011
Unavailable
5
CAM-BRAKE
41050-017
Unavailable
6
SHOE,BRAKE
41048-016
Unavailable
7
SPRING,BRAKE SHOE
41049-007
Unavailable
8
WASHER-BRAKE SHOE
41045-006
Unavailable
9
PIN, COTTER, 3.0 X 25
550D-3025
Unavailable
10
INDICATOR,BRAKE SHOE
41085-004
Unavailable
11
DRUM ASSY,REAR BRAKE
42005-030
Unavailable
12
BEARING BALL #6304
601B6304
Unavailable
13
SHOCK DAMPER
42014-021
Unavailable
14
SPACER-RR HUB BEARING
42010-021
Unavailable
15
BALL BEARING,#6304Z
601B6304Z
Unavailable
16
COUPLING ASSY,RR BRAK
42008-013
Unavailable
17
SLEEV,RR HUB CUPLING
42036-015
Unavailable
18
BOLT, REAR SPROCKET FITTING
92003-100
Unavailable
18
BOLT, REAR SPROCKET FITTING
92003-015
Unavailable
19
BALL BEARING,#6206
601B6206
Unavailable
20
SEAL-OIL,AJN40627
92050-027
Unavailable
21
COLLAR, REAR AXLE SLEEVE
42037-020
Unavailable
21
COLLAR,RR HUB COUPLNG
42037-023
Unavailable
22
WASHER-LOCK
92088-013
Unavailable
23
NUT,10MM
42045-005
Unavailable
24
AXLE,REAR
42031-034
Unavailable
25
COLLAR,REAR AXLE
42032-037
Unavailable
26
NUT,CASTLE,18MM
42045-018
Unavailable
27
PIN-COTTER,4.0X35
550D4035
Unavailable
28
WASHER, PLAIN, 20 MM WHN EXH USE 92
92022-233
Unavailable
28
WASHER,20.3X34X4.5
92022-248
Unavailable
28
WASHER,PLAIN,20MM T-6.0
92022-249
Unavailable
29
REAR SPROCKET 35T
42041-118
Unavailable
30
CHAIN ASSY, DRIVE, 630 X 92L
92057-018
Unavailable
30
DR CHAIN 630X92
92057-107
Unavailable
31
SPACER, REAR HUB COUPLING
92028-108
Unavailable
