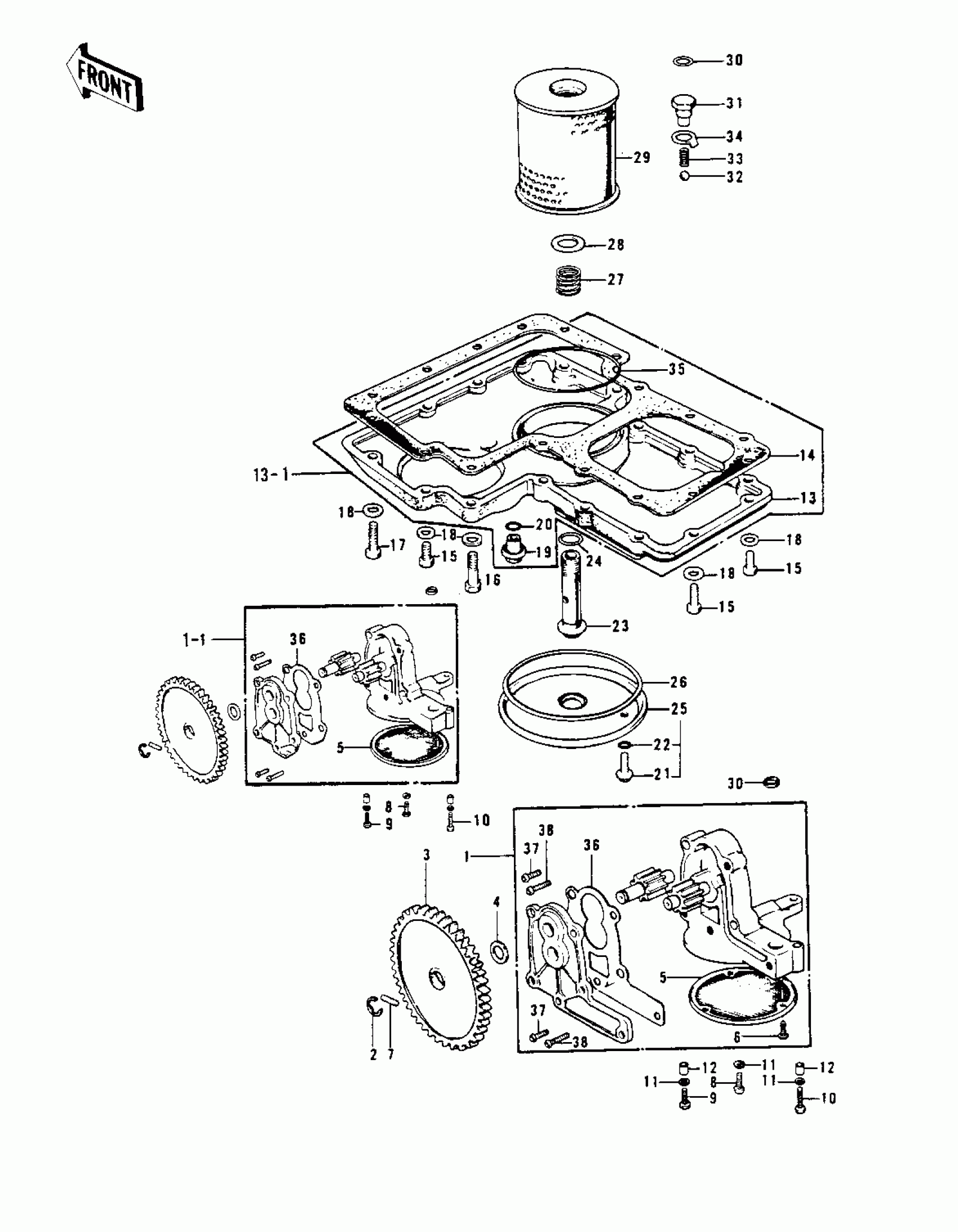

Kawasaki Z1 OIL PUMP/OIL FILTER/OIL PAN Diagram
#
1
OIL PUMP ASSY
16082-036
Unavailable
1-1
PUMP-ASSY-OIL
16082-5001
Unavailable
2
CIRCLIP,7MM
482K7000
Unavailable
3
GEAR,OIL PUMP 49T
16085-019
Unavailable
4
WASHER,LOCK,16MM
92026-080
Unavailable
5
STRAINER,OIL
16111-002
Unavailable
5
FILTER,OIL PUMP
16111-004
Unavailable
6
SCREW PAN HEAD 5X8
220B0508
Unavailable
7
PIN,DOWEL,3X14
551A0314
Unavailable
8
BOLT-UPSET
112G0622
Unavailable
8
BOLT,FLANGED,6X22
92001-1352
Unavailable
9
BOLT-UPSET,6X35
112G0635
Unavailable
9
BOLT,HEX HEAD,6X35
92001-164
Unavailable
10
BOLT-UPSET
112G0645
Unavailable
10
BOLT,FLANGED,6X45
92001-165
Unavailable
11
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
12
PIN,DOWEL,6.3X8X14
92042-007
Unavailable
13
PAN-OIL
49034-5020
Unavailable
13-1
PAN-OIL
49034-5020
Unavailable
14
GASKET,OIL PAN
11060-1074
Unavailable
15
BOLT-UPSET
112G0625
Unavailable
15
BOLT,FLANGED,6X25
130G0625
Unavailable
16
BOLT 6X35
110R0635
Unavailable
16
BOLT, HEX HEAD, 6X34
92003-159
Unavailable
17
BOLT,HEX HEAD,6X50
110G0650
Unavailable
17
BOLT-FLANGED,6X50
130G0650
Unavailable
18
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
19
PLUG,OIL DRAIN
92001-1183
Unavailable
20
O RING,22MM
670B2022
Unavailable
21
PLUG,OIL DRAIN
92066-024
Unavailable
22
O RING,8MM
670B1508
Unavailable
23
BOLT,OIL FILTER
92001-1074
Unavailable
23
BOLT,OIL FILTER
92001-1074
Unavailable
24
O RING,22MM
670B2022
Unavailable
25
COVER,OIL FILTER
14025-1112
Unavailable
26
"0" RING,105MM
671B25105
Unavailable
27
SPRING,OIL FILTER
92081-1018
Unavailable
28
WASHER,20.5X30X1
92022-1012
Unavailable
29
ELEMENT-OIL FILTER
16099-002
Unavailable
30
RING-O,OD=18
92055-048
Unavailable
31
BOLT
92003-095
Unavailable
32
BALL-STEEL,3/8"
600A1200
Unavailable
33
SPRING
92081-109
Unavailable
34
WASHER,LOCK
92024-048
Unavailable
35
RING-O,91.6X3.4
92055-052
Unavailable
36
GASKET,OIL PUMP
16145-001
Unavailable
36
GASKET,OIL PUMP
11009-1029
Unavailable
37
SCREW-PAN-CROS,6X16
220B0616
Unavailable
38
SCREW PAN HEAD 6X28
220B0628
Unavailable
