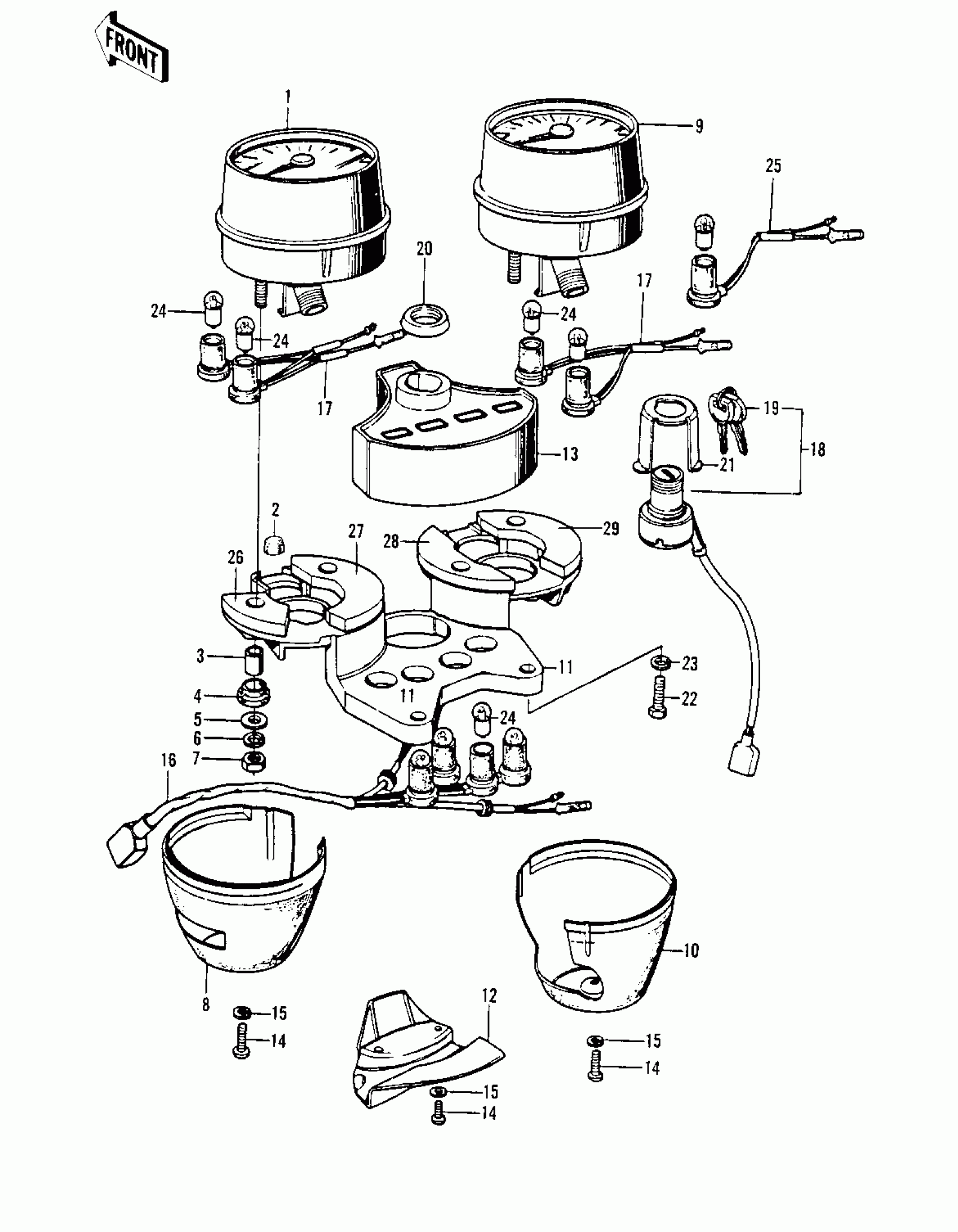

Kawasaki Z1 METERS/IGNITION SWITCH Diagram
#
1
SPEEDOMETER ASSY,MPH
25005-121
Unavailable
1
SPEEDOMETER ASSY,MPH
25005-121
Unavailable
1
SPEEDOMETER ASSY KPH (Canada)
25001-073
Unavailable
2
SHOCK DAMPER,SOCKET
25019-029
Unavailable
3
COLLAR,METER
92027-211
Unavailable
4
RUBBER,METER
92075-172
Unavailable
5
WASHER,PLAIN,5MM
92022-241
Unavailable
6
WASHER SPRING 5MM
461F0500
Unavailable
7
NUT 5MM
312B0500A
Unavailable
8
COVER,SPEEDOMETER
25012-010
Unavailable
9
TACHOMETER ASSY
25015-025
Unavailable
9
TACHOMETER ASSY
25015-025
Unavailable
10
COVER,TACHOMETER
25012-011
Unavailable
11
BRACKET,SPEEDO
25008-044
Unavailable
12
COVER,WIRING HARNESS
25024-001
Unavailable
13
COVER,METER
25023-011
Unavailable
13
COVER,METER
25023-011
Unavailable
14
SCREW PAN HEAD 3X8
220B0308A
Unavailable
15
WASHER SPRING 3MM
461F0300
Unavailable
16
SOCKET ASSY,INDICATOR
25011-026
Unavailable
16
UNAVAILABLE IN PRICE BOOK
25011-042
Unavailable
17
SOCKET ASSY,METER LAM
25011-027
Unavailable
18
SWITCH ASSY,IGNITION
27005-042
Unavailable
19
KEY SET,#751
27008-046-51
Unavailable
19
KEY SET,#752
27008-046-52
Unavailable
19
KEY SET,#753
27008-046-53
Unavailable
19
KEY SET,#754
27008-046-54
Unavailable
19
KEY SET,#755
27008-046-55
Unavailable
19
KEY,BLANK
27008-1013
Unavailable
20
NUT,IGNITION SW LOCK
27007-004
Unavailable
21
HOLDER IGNITION SW
27019-003
Unavailable
22
BOLT HEX HEAD 8X32
110B0832
Unavailable
23
WASHER SPRING 8MM
461F0800
Unavailable
24
BULB 12V 3W
92069-018
Unavailable
25
SOCKET,TACHOMETER
25011-043
Unavailable
26
SHOCK DAMPER A,SPEED
25019-025
Unavailable
27
SHOCK DAMPER B,SPEED
25019-026
Unavailable
28
SHOCK DAMPER A,TACHO
25019-027
Unavailable
29
SHOCK DAMPER B,TACHO
25019-028
Unavailable
