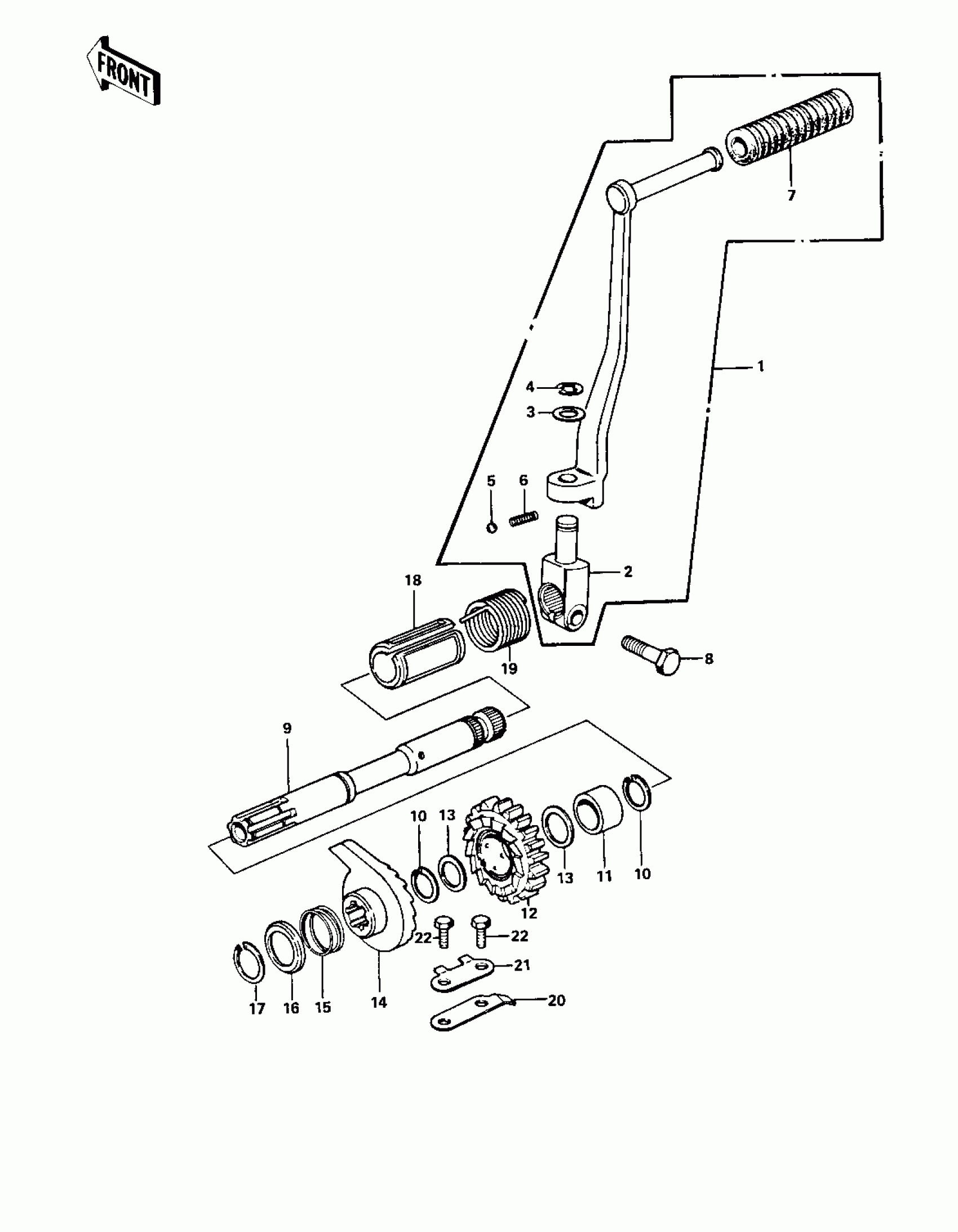

Kawasaki Z1 KICKSTARTER MECHANISM Diagram
#
Description
Price
1
PEDAL,KICKSTARTER
13058-044
Unavailable
2
BOSS-KICK PEDAL
13061-014
Unavailable
3
WASHER BRAKE PEDAL
92022-085
Unavailable
4
CIRCLIP-TYPE-E,10MM
482J0100
Unavailable
5
BALL-STEEL,1/4
600A0800
Unavailable
6
SPRING,KICK PEDAL
92081-020
Unavailable
7
DAMPER,KICK PEDAL
13063-004
Unavailable
8
BOLT-HEX HEAD,10X25
114B1025
Unavailable
9
SHAFT,KICKSTARTER
13066-029
Unavailable
10
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
11
COLLAR,KICKSHAFT
92028-126
Unavailable
12
GEAR,KICKSTARTER 19T
13068-028
Unavailable
13
WASHER,PLAIN,22MM
92022-207
Unavailable
14
RATCHET,KICK SHAFT
13078-011
Unavailable
15
SPRING RATCHET
92081-104
Unavailable
16
CAP,KICKSTARTER
92102-008
Unavailable
17
CIRCLIP-TYPE-C,19MM
480J1900
Unavailable
18
GUID,KICK SHAFT
13070-005
Unavailable
19
SPRING,KICKSTARTER
92082-004
Unavailable
20
STOPPER,KICKSTARTER
13072-012
Unavailable
21
WASHER-LOCK
92024-036
Unavailable
22
BOLT-UPSET 6X14
112B0614
Unavailable
