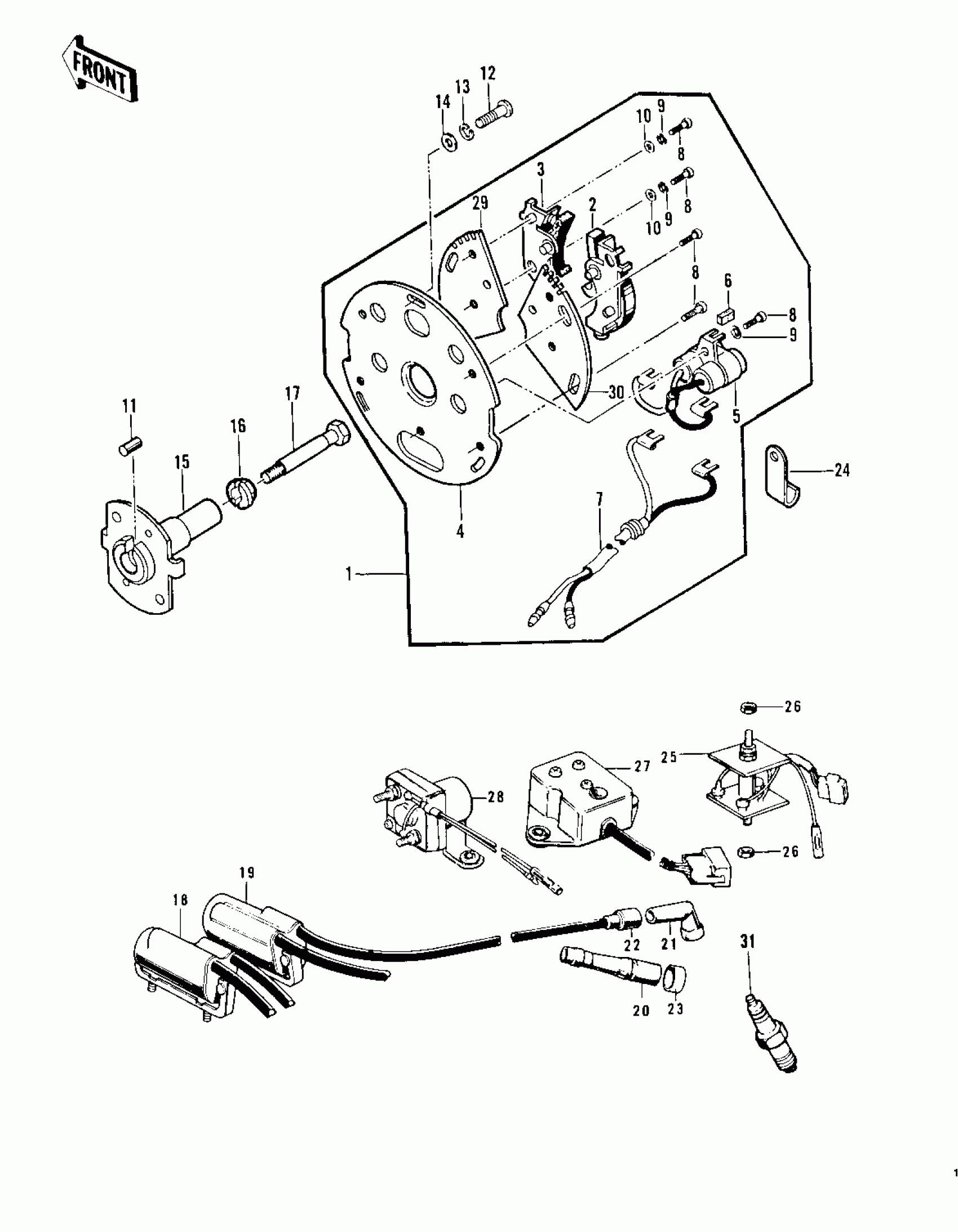

Kawasaki Z1 IGNITION/REGULATOR/RECTIFIER Diagram
#
1
BREAKER,CONTACT
21135-011
Unavailable
1
BREAKER,CONTACT
21135-011
Unavailable
2
BREAKER,CONTACT
21008-027
Unavailable
3
BREAKER,CONTACT
21008-028
Unavailable
4
PLATE,CONTACT BREAKER
21021-003
Unavailable
4
PLATE,CONTACT BREAKE
21021-004
Unavailable
5
CONDENSER
21013-035
Unavailable
6
BRUSH,OIL
21019-005
Unavailable
7
WIRING HARNESS,BRAKE
21029-037
Unavailable
8
SCREW PAN HEAD 4X8
220B0408
Unavailable
9
WASHER SPRING 4MM
461F0400
Unavailable
10
WASHER PLAIN 4MM
410B0400
Unavailable
11
PIN-DOWEL,4X8
551A0408
Unavailable
12
SCREW-PAN-CROS
220B0512
Unavailable
13
WASHER SPRING 5MM
461F0500
Unavailable
14
WASHER PLAIN 5MM
410B0500
Unavailable
15
ADVANCER,SPARK
21148-010
Unavailable
15
ADVANCER,SPARK
21148-010
Unavailable
16
WASHER,BREAKER GOVERNOR
92022-244
Unavailable
17
BOLT,SPARK ADVANCER
92001-113
Unavailable
18
IGNITION COIL
21121-1003
Unavailable
18
IGNITION COIL
21121-1003
Unavailable
19
COIL,IGNITION(W/CAP)
21171-1019
Unavailable
19
COIL,IGNITION(W/CAP)
21171-1019
Unavailable
20
CAP-SPARK PLUG
21130-019
Unavailable
21
CAP SPARK PLUG
21160-1014
Unavailable
22
GROMMET,HIGH TENSION
21131-005
Unavailable
23
GROMMET,PLUG CAP
21131-006
Unavailable
24
CLAMP,WIRING HARNESS
21126-008
Unavailable
25
RECTIFIER
21061-019
Unavailable
25
RECTIFIER
21061-019
Unavailable
26
NUT 6MM
311B0600
Unavailable
27
REGULATOR,VOLTAGE
21066-019
Unavailable
27
REGULATOR,VOLTAGE
21066-019
Unavailable
27
REGULATOR,VOLTAGE
21066-019
Unavailable
28
SWITCH ASSY,MAGNETIC
27010-1023
Unavailable
29
PLATE,CONTACT BREAKER
21156-008
Unavailable
29
PLATE,CONTACT BREAKE
21156-010
Unavailable
30
PLATE,CONTACT BREAKER
21156-009
Unavailable
30
PLATE,CONTACT BREAKE
21156-010
Unavailable
31
SPARK PLUG B8ES
B8ES
Unavailable
