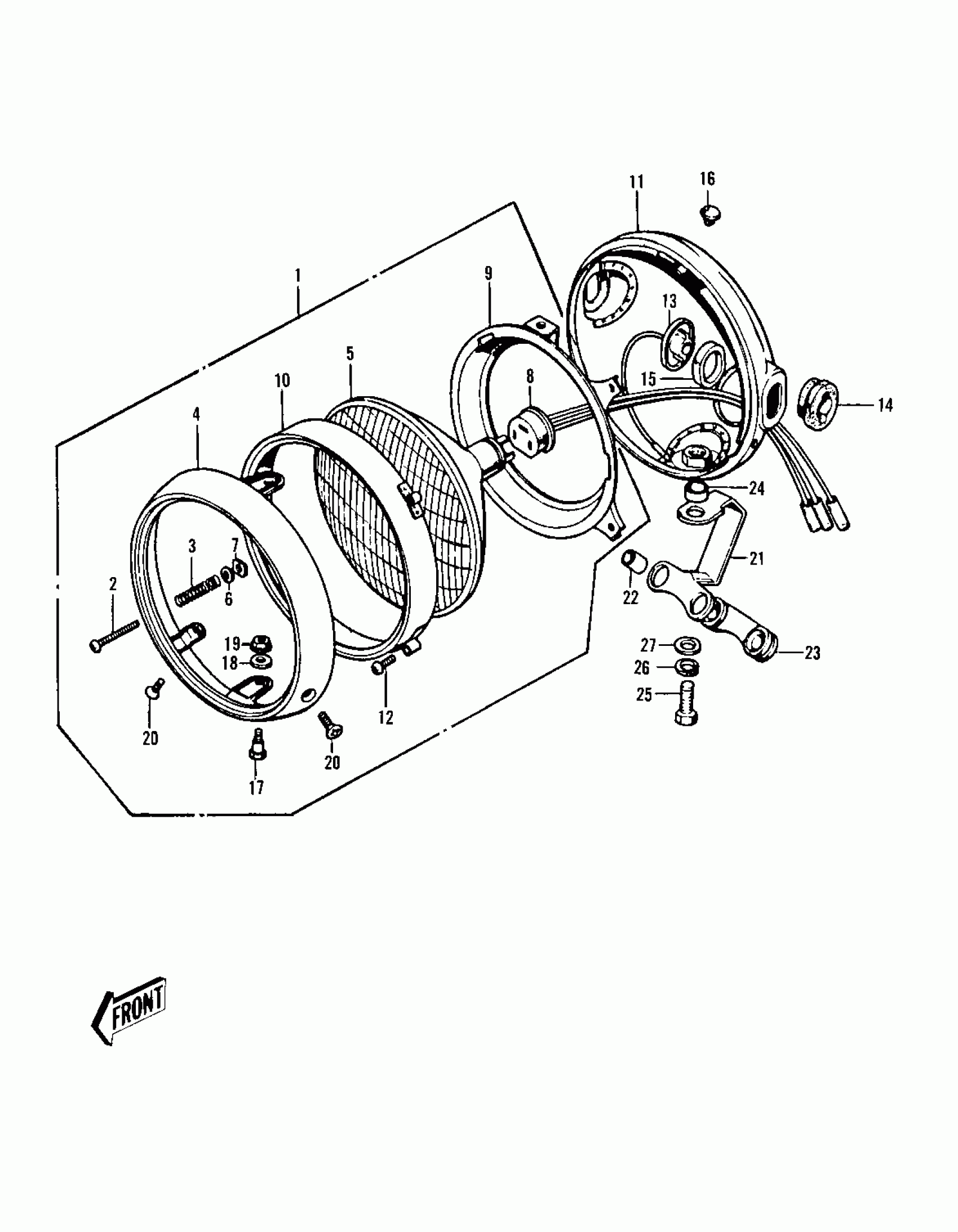

Kawasaki Z1 HEADLIGHT Diagram
#
Description
Price
1
LAMP UNIT,HEAD
23003-017
Unavailable
2
SCREW,FOCUS ADJUSTING
23019-021
Unavailable
3
SPRING,FOCUS ADJUSTING
23014-005
Unavailable
4
RIM,HEAD LAMP
23006-038
Unavailable
5
SEALD BEAM UNIT
23007-041
Unavailable
6
WASHER,4.1X8X0.8
23021-004
Unavailable
7
NUT,4MM,FOCUS ADJUST
23020-018
Unavailable
8
SOCKET ASSY,HEAD LAMP
23008-037
Unavailable
9
RING,HEAD LAMP MOUNT
23074-001
Unavailable
10
RING,HEAD LAMP MOUNT
23072-001
Unavailable
11
BODY-COMP-HEAD LAMP
23005-1015-21
Unavailable
12
SCREW, PAN HEAD 3X12
220B0312A
Unavailable
13
COLLAR
23076-005
Unavailable
14
DAMPER RUBBER A
23066-001
Unavailable
14
DAMPER RUBBER
23066-015
Unavailable
15
DAMPER RUBBER
23066-005
Unavailable
15
DAMPER RUBBER
23066-016
Unavailable
16
PLUG REAR FENDER RUB
92074-006
Unavailable
17
SCREW,PAN HEAD,5X12
23019-023
Unavailable
18
WASHER,PLAIN,5MM
23021-012
Unavailable
19
NUT,5MM
23020-023
Unavailable
20
SCREW,SPECIAL,5X14
23019-022
Unavailable
21
BRAKET,HEAD LAMP
23064-009
Unavailable
22
COLLAR,6.8X10X12
92027-162
Unavailable
22
COLLAR
92027-241
Unavailable
23
DAMPER RUBBER,HD LAMP
92075-127
Unavailable
24
COLLER,HEAD LAMP
92027-167
Unavailable
25
BOLT,HEX HEAD,8X18
110B0818
Unavailable
26
WASHER SPRING 8MM
461F0800
Unavailable
27
WASHER PLAIN 8MM
411B0800
Unavailable
