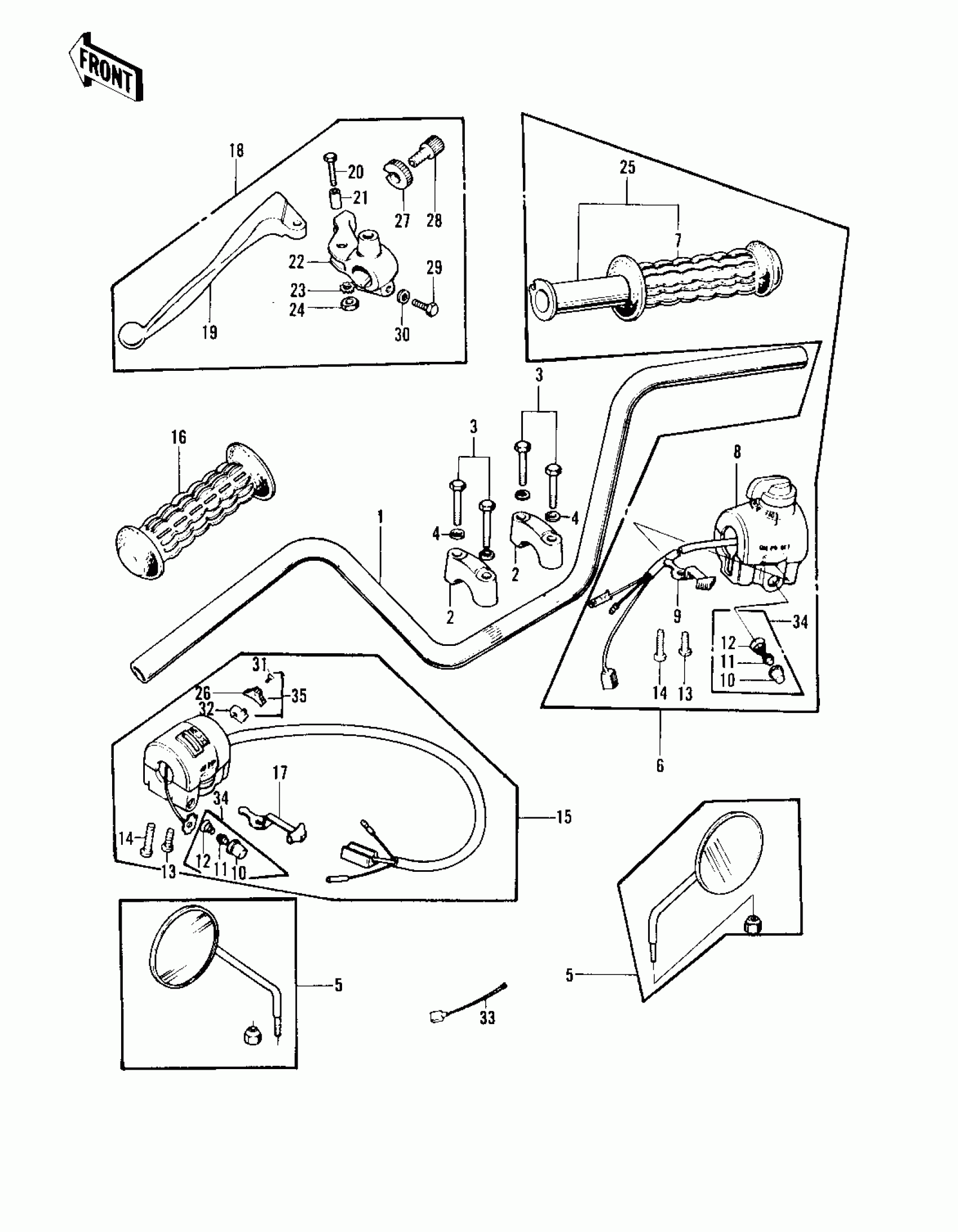

Kawasaki Z1 HANDLEBAR Diagram
#
1
HANDLEBAR
46003-029
Unavailable
2
HOLDER-HANDLE,UPP
46012-008
Unavailable
3
BOLT 8X38
92001-1405
Unavailable
4
WASHER SPRING 8MM
461F0800
Unavailable
5
REAR VIEW MIRROR
56001-1030
Unavailable
6
GRIP ASSY,R.H
46018-025
Unavailable
7
RUBBER-R.H GRIP
46061-012
Unavailable
8
CASE ASSY,R.H SWITCH
46132-001
Unavailable
8
CASE ASSY,R.H
46132-018
Unavailable
8
CASE ASSY R.H
46132-014
Unavailable
9
KNOB,LIGHTING SW R.H
46043-004
Unavailable
10
SWITCH ASSY,HORN BUTN
46028-003
Unavailable
10
BUTTON, HORN PUSH
46028-006
Unavailable
11
SWITCH ASSY,HORN BUTN
46079-003
Unavailable
12
SWITCH ASSY,HORN BUTN
46031-005
Unavailable
13
SCREW PAN HEAD 5X30
220B0530A
Unavailable
14
SCREW, PAN HEAD 5X35
220B0535A
Unavailable
15
CASE ASSY,L.H SWITCH
46091-009
Unavailable
15
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
16
RUBBER-L.H GRIP
46075-017
Unavailable
17
KNOB,LIGHTING SW L.H
46043-005
Unavailable
18
LEVER ASSY,CLUTCH
46076-025
Unavailable
19
LEVER-GRIP,CLUTCH
46092-015
Unavailable
20
BOLT HEX HEAD 5X20
92007-020
Unavailable
21
COLLAR LEVER
46059-011
Unavailable
22
HOLDER,F.BLACK
46094-011-21
Unavailable
23
WASHER LOCK 5MM
464H0500
Unavailable
24
NUT 5MM
312B0500A
Unavailable
25
GRIP ASSY,THROTTLE
46019-025
Unavailable
26
KNOB,LIGHTING SW L.H
46044-013
Unavailable
27
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
28
SCREW ADJUST
46055-006
Unavailable
29
BOLT HEX HEAD 6X25
110N0625
Unavailable
30
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
31
SCREW PAN HEAD 3X5
220B0305A
Unavailable
32
SWITCH ASSY,L.H
46089-016
Unavailable
32
SWITCH,L.H
46089-014
Unavailable
33
WIRE,LEAD
26011-091
Unavailable
34
SWITCH,PUSH BUTTON
27010-1009
Unavailable
35
L.H GRIP SWITCH KIT
99990-530
Unavailable
