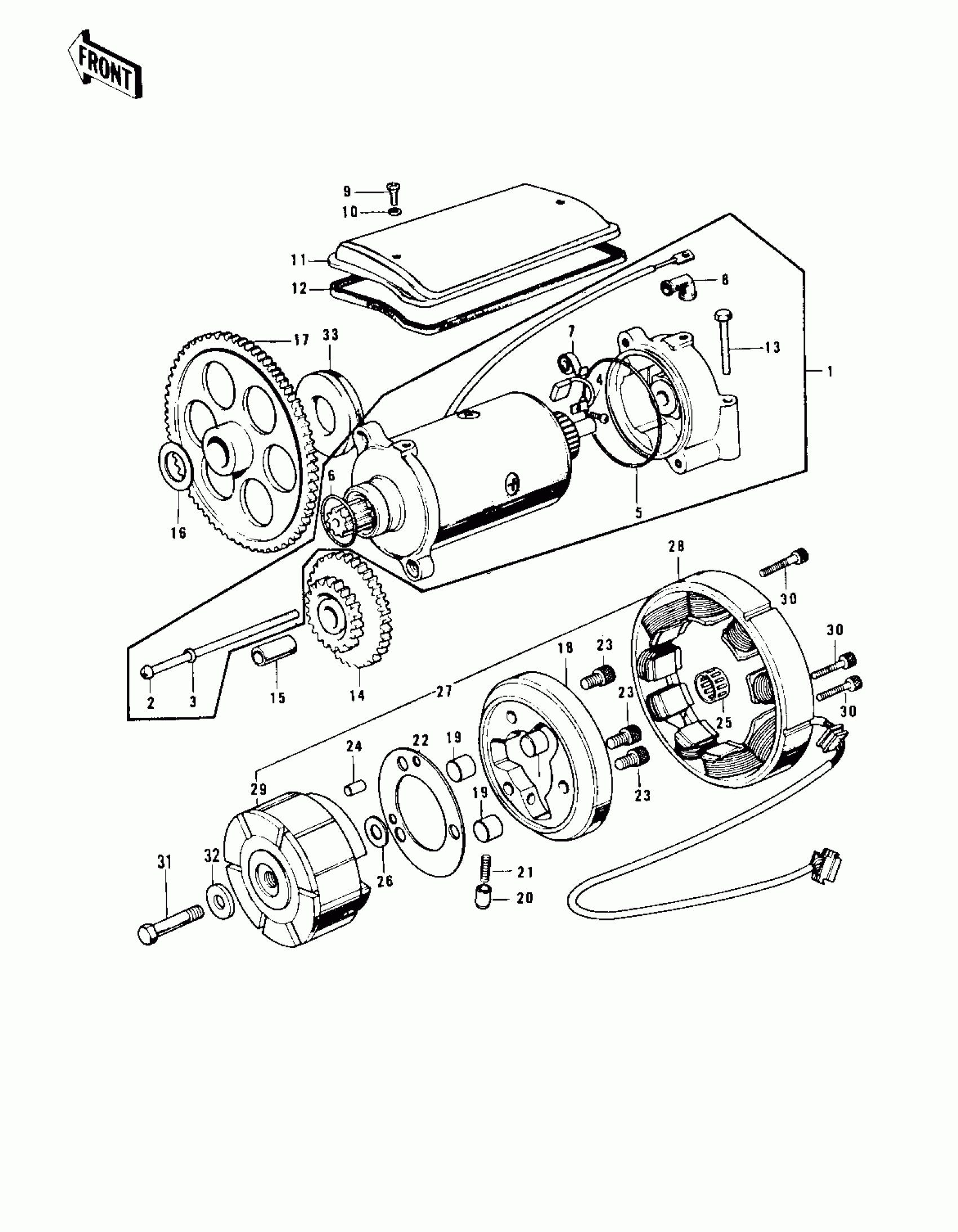

Kawasaki Z1 GENERATOR/STARTER MOTOR Diagram
#
1
MOTOR ASSY,STARTING
21163-001
Unavailable
2
SCREW,PAN HEAD,5X110
21015-005
Unavailable
3
WASHER SPRING 6MM
461F0600
Unavailable
4
BRUSH,CARBON
21039-003
Unavailable
5
RING-O,STARTER MOTOR
21027-003
Unavailable
6
RING-O,STARTER MOTOR,25MM
21027-004
Unavailable
7
SPRING-BRUSH
21040-003
Unavailable
8
GROMMET,STARTER TERMINAL
21017-017
Unavailable
9
BOLT (6X10)
110R0610
Unavailable
10
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
11
COVER,STARTING MOTOR
21165-001
Unavailable
12
GASKET,STARTER COVER
21166-001
Unavailable
13
BOLT HEX HEAD 6X56
110B0656
Unavailable
14
GEAR-SPUR,STARTER MOTOR
21167-002
Unavailable
15
PIN
13002-007
Unavailable
16
WASHER 22.1X30.7X2.0
92026-091
Unavailable
17
GEAR,STARTING CLUTCH
21167-003
Unavailable
17
GEAR,STARTING CLUTCH
21167-003
Unavailable
18
CLUTCH-ASSY-ONEWAY
13193-1006
Unavailable
19
ROLLER,15X14.4
92122-001
Unavailable
20
PIN
92043-087
Unavailable
21
SPRING
92081-110
Unavailable
22
WASHER,FREE WHEEL
92026-082
Unavailable
23
BOLT-SOCKET,8X16
120P0816
Unavailable
24
PIN,DOWEL,6X22
551A0622
Unavailable
25
NEEDLE BEARING, K222620
92046-033
Unavailable
26
SPACER,22X35.5X1.0
92026-092
Unavailable
26
SPACER,22X35.5X1.0
92026-092
Unavailable
27
DYNAMO ASSY
21001-024
Unavailable
28
YOKE ASSY
21076-014
Unavailable
29
ROTOR
21007-029
Unavailable
29
ROTOR
21007-029
Unavailable
30
BOLT-SOCKET,6X35,BLACK
120S0635
Unavailable
31
BOLT,8X40
115G0840
Unavailable
32
WASHER 8.5X23.5X4.5
92022-218
Unavailable
33
DAMPER RUBBER
92075-186
Unavailable
33
UNAVAILABLE IN PRICE BOOK
92075-187
Unavailable
33
DAMPER RUBBER 8.3T
92075-188
Unavailable
33
DAMPER RUBBER 6.3T
92075-192
Unavailable
33
DAMPER RUBBER 7.3T
92075-193
Unavailable
33
DAMPER RUBBER 8.3T
92075-194
Unavailable
