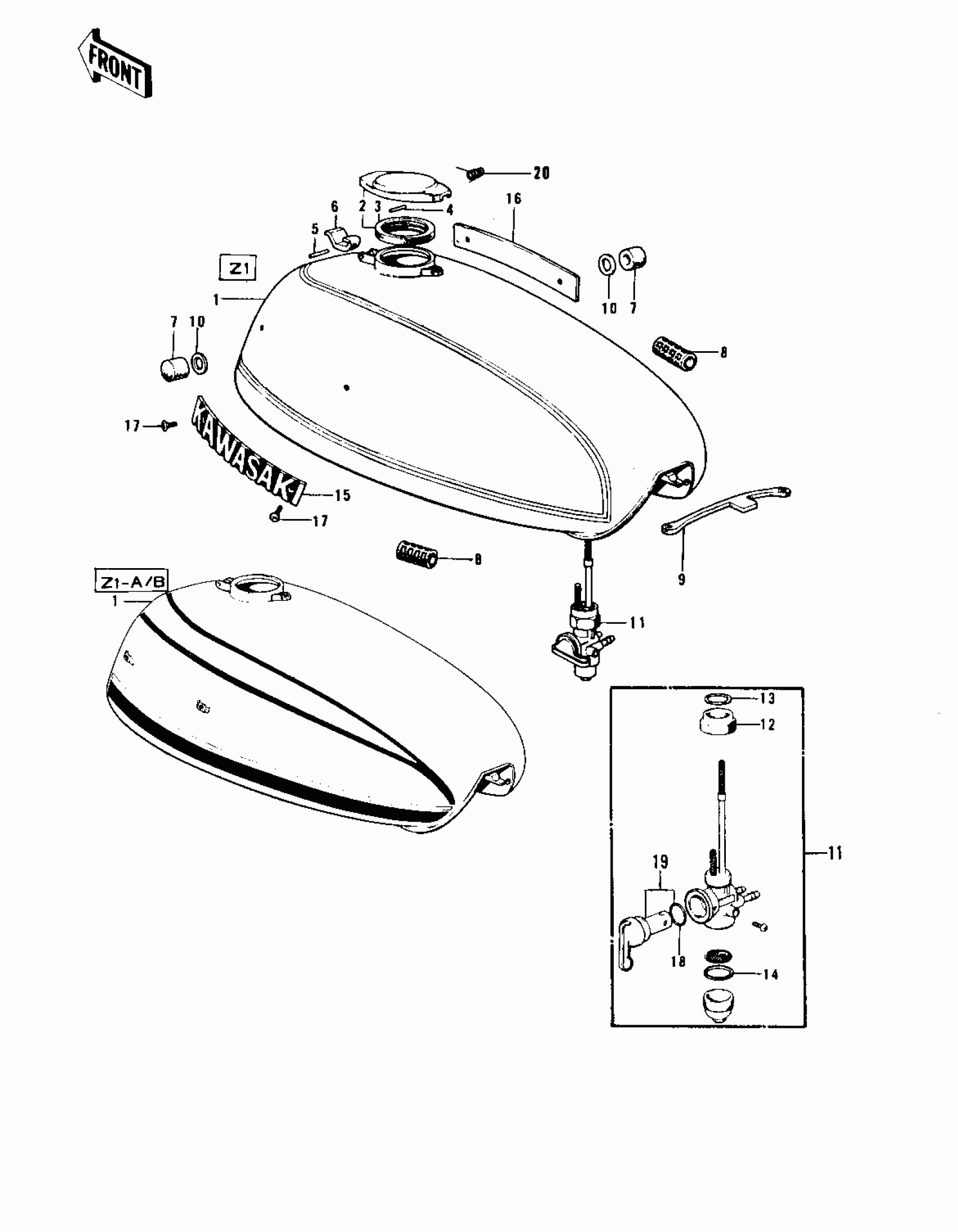

Kawasaki Z1 FUEL TANK Diagram
#
Description
Price
1
TANK-FUEL,C.BROWN
51001-077-96
Unavailable
1
TANK-FUEL,C.ORANGE
51001-096-2E
Unavailable
1
TANK-FUEL,C.YELLOW
51001-096-2F
Unavailable
1
TANK-FUEL,C.S.RED
51001-096-2R
Unavailable
1
TANK-FUEL,C.S.BLUE
51001-096-2S
Unavailable
2
CAP ASSY,FUEL TANK
51048-007
Unavailable
3
GASKET-FUEL TANK CAP
51059-008
Unavailable
4
PIN-TANK CAP FIT
92043-074
Unavailable
4
PIN,TANK CAP FIT
92043-096
Unavailable
5
PIN,TANK CAP
92043-091
Unavailable
6
HOOK,FUEL TANK CAP
51063-002
Unavailable
7
DAMPER,FUEL TANK
92075-125
Unavailable
8
DAMPER,FUEL TANK
92075-084
Unavailable
9
BAND,FUEL TANK
92072-042
Unavailable
10
WASHER,10.5X26X2.3
92022-044
Unavailable
11
FUEL COCK ASSY
51023-055
Unavailable
12
FUEL COCK JOINT NUT
51035-009
Unavailable
13
GASKET-FUEL COCK JNT.
92065-081
Unavailable
14
GASKET FUEL COCK CUP
51037-010
Unavailable
15
EMBLEM,FUEL TANK,L.H
56014-1013
Unavailable
15
EMBLEM,L.H FUEL TANK
56013-054
Unavailable
16
EMBLEM,FUEL TANK,R.H
56014-1014
Unavailable
16
EMBLEM,R.H FUEL TANK
56014-049
Unavailable
17
SCREW-CSK-CROS
92012-003
Unavailable
18
O RING,14MM
670B2014
Unavailable
19
FUEL COCK LEVER SET
51030-001
Unavailable
20
SPRING-HOOK
51053-003
Unavailable
