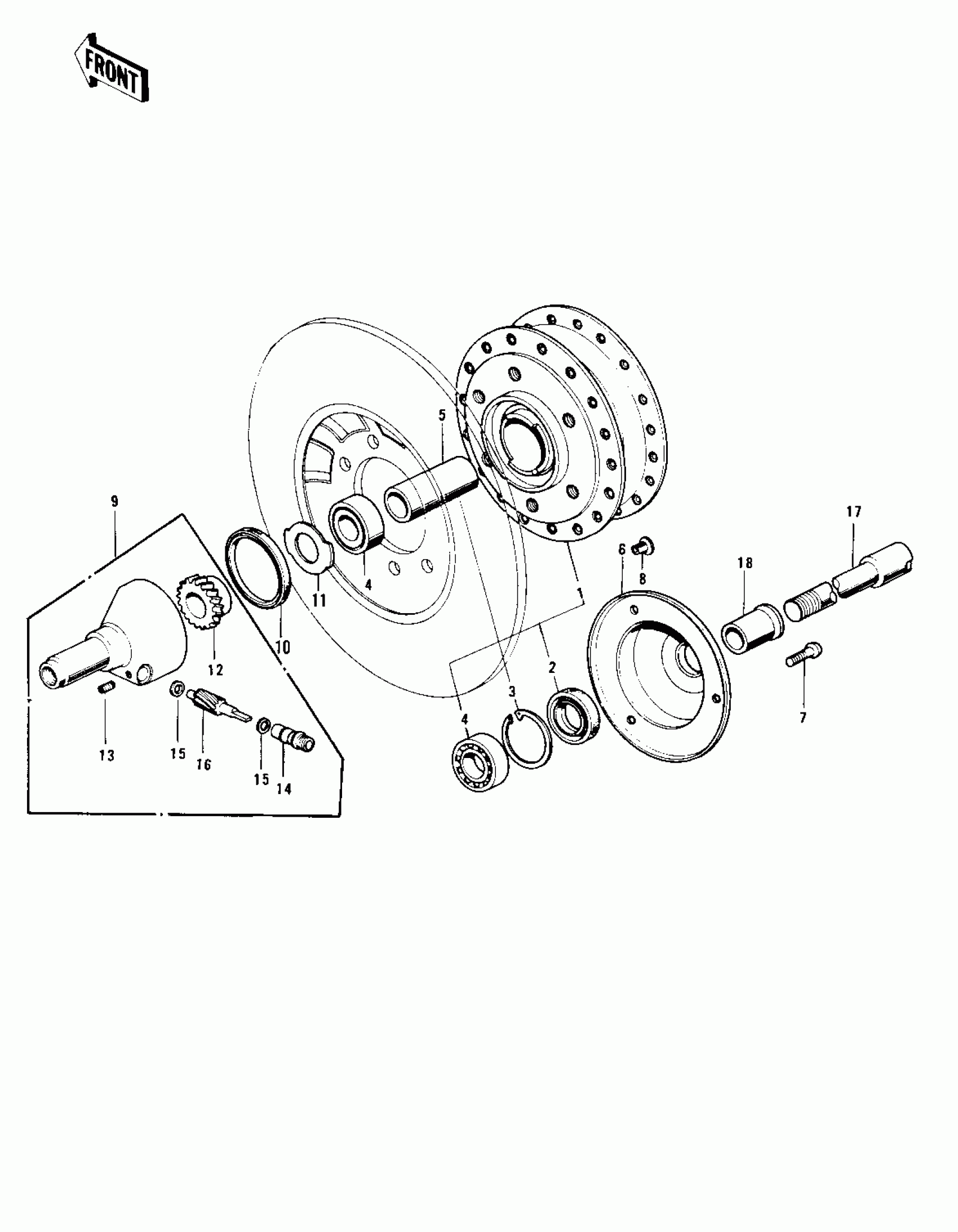

Kawasaki Z1 FRONT HUB Diagram

#

Description

Price

1

DRUM-ASSY,FR BRK,BLK

41034-021-21

Unavailable

2

SEAL-OIL,COUPLING

92052-003

Unavailable

3

RING-SNAP,40MM

92033-1040

Unavailable

4

BEARING-BALL,#6203C3

601B6203

Unavailable

5

COLLAR-FRONT DRUM

41039-019

Unavailable

6

COVER-BRAKE DRUM DUST

41042-009

Unavailable

7

SCREW OVL CNTSNK 5X8

222E0508A

Unavailable

8

CAP-FRONT DRUM HOLE

92102-006

Unavailable

9

CASE ASSY-SPEED GEAR

41078-001

Unavailable

10

OIL SEAL,VC54656

92050-046

Unavailable

11

RECEIVER-SPEEDO GEAR

41064-007

Unavailable

12

GEAR-SPEEDOMETER

41059-016

Unavailable

13

PIN,SPRING

41082-001

Unavailable

14

BUSHING,SPEEDOMETER CABLE

41062-005

Unavailable

15

WASHER,5.1X9X0.4

41063-001

Unavailable

16

PINION-SPEEDOMETER

41060-012

Unavailable

17

AXLE-FRONT HUB

41068-036

Unavailable

18

COLLAR-FRONT AXLE

41069-018

Unavailable
