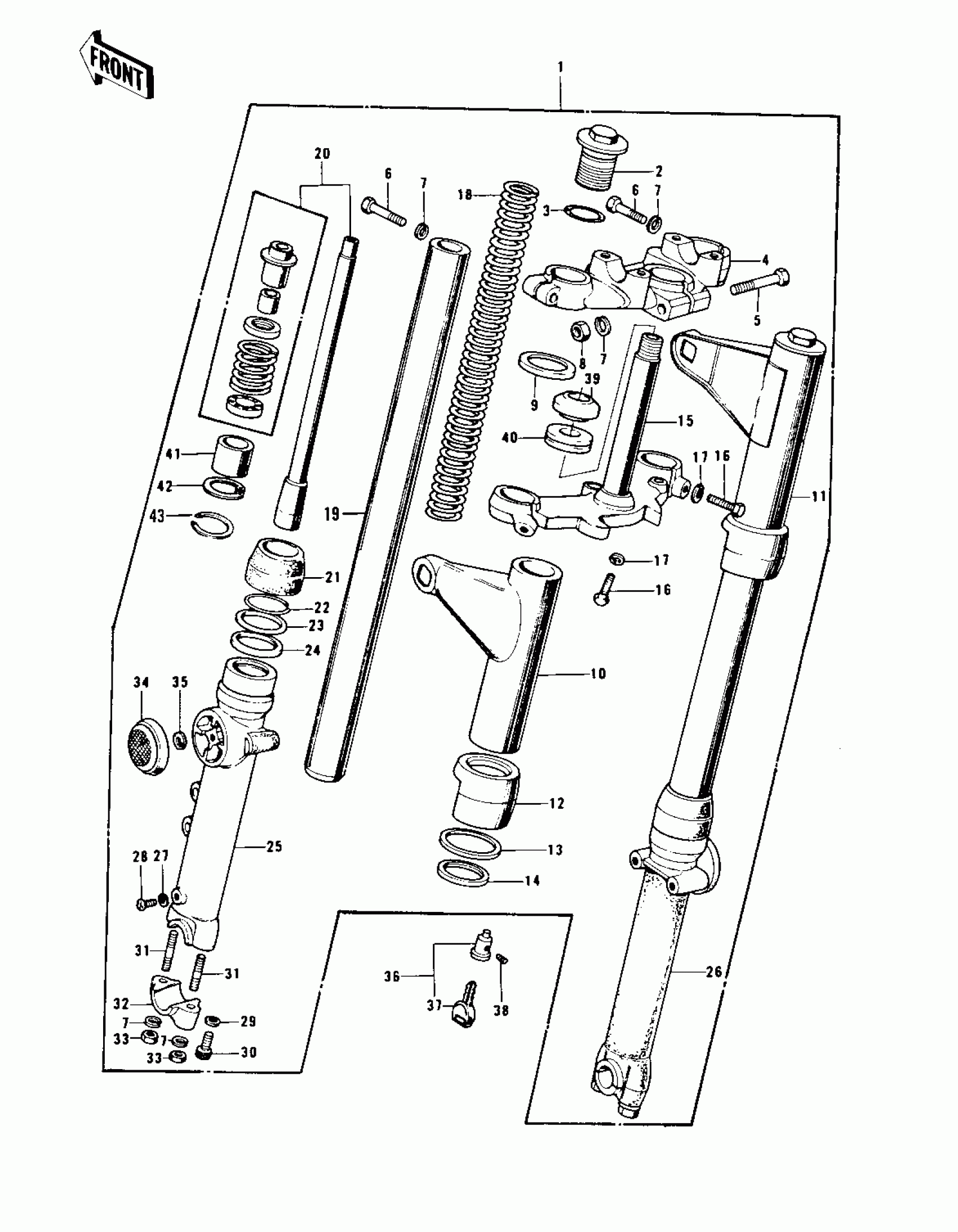

Kawasaki Z1 FRONT FORK Diagram
#
1
FORK-FRONT
44001-162
Unavailable
1
FORK-FRONT
44001-162
Unavailable
1
FORK-FRONT
44001-162
Unavailable
2
BOLT-FORK TOP
44062-003
Unavailable
3
'O' RING FORK TOP
44046-015
Unavailable
4
HEAD,STEERING STEM
44039-045
Unavailable
5
BOLT-HEX HEAD,8X55
44041-038
Unavailable
6
BOLT-HEX HEAD.8M/M
44041-045
Unavailable
6
BOLT-HEX HEAD.8M/M
44041-045
Unavailable
7
WASHER SPRING 8MM
461F0800
Unavailable
8
NUT FUEL TANK FRONT
92020-007
Unavailable
9
WASHER,FORK COVER
44064-005
Unavailable
10
COVER,L.H FORK
44033-072
Unavailable
10
COVER,L.H FORK
44033-072
Unavailable
10
COVER,L.H FORK
44033-072
Unavailable
11
COVER,R.H FORK
44034-072
Unavailable
11
COVER,R.H FORK
44034-072
Unavailable
11
COVER,R.H FORK
44034-072
Unavailable
12
GUIDE,FORK COVER
44064-006
Unavailable
13
WASHER,FORK COU GUID
44064-008
Unavailable
14
GASKET,FORK COVER
44045-038
Unavailable
15
STEM,STEERING
44037-049
Unavailable
16
BOLT-HEX HEAD,12X36
92003-064
Unavailable
17
WASHER-SPRING,12MM
461F1200
Unavailable
18
SPRING,FORK INNER
44026-042
Unavailable
19
TUBE,FORK INNER
44013-037
Unavailable
20
CYLINDER-FORK
44023-007
Unavailable
20
CYLINDER-FORK
44022-028
Unavailable
20
CYLINDER-FORK
44022-028
Unavailable
21
DUST SHIELD-FORK
44010-021
Unavailable
22
CIRCLIP-OIL SEAL FIT
44044-012
Unavailable
23
WASHER-OIL SEAL FIT
44043-044
Unavailable
24
SEAL-OIL,FORK OUTER PIPE
92049-1216
Unavailable
25
TUBE,LH,FORK OUTER
44005-045
Unavailable
26
TUBE,RH,FORK OUTER
44006-043
Unavailable
27
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
28
SCREW PAN HEAD 4X8
220B0408
Unavailable
29
GASKET
44045-057
Unavailable
30
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
31
STUD,8X35
92004-1009
Unavailable
32
HOLDER-FRONT AXLE
44063-003
Unavailable
33
NUT,8MM
311B0800
Unavailable
34
REFLECTOR,REFLEX,REAR
28012-009
Unavailable
35
DAMPER,REFLECTOR
92094-011
Unavailable
36
LOCK ASSY,STEERING
27016-027
Unavailable
38
SCREW,SEAT LOCK
92014-016
Unavailable
39
RACE,STEERING STEM BEARING
92047-012
Unavailable
40
SEAL-OIL,STEERING STEM
92056-003
Unavailable
41
PISTON FORK
44018-003
Unavailable
41
PISTON,FORK
44018-009
Unavailable
42
CIRCLIP FORK PISTON
44044-008
Unavailable
42
CIRCLIP,FORK PISTON
44044-019
Unavailable
43
RING,FORK PISTON
44025-005
Unavailable
