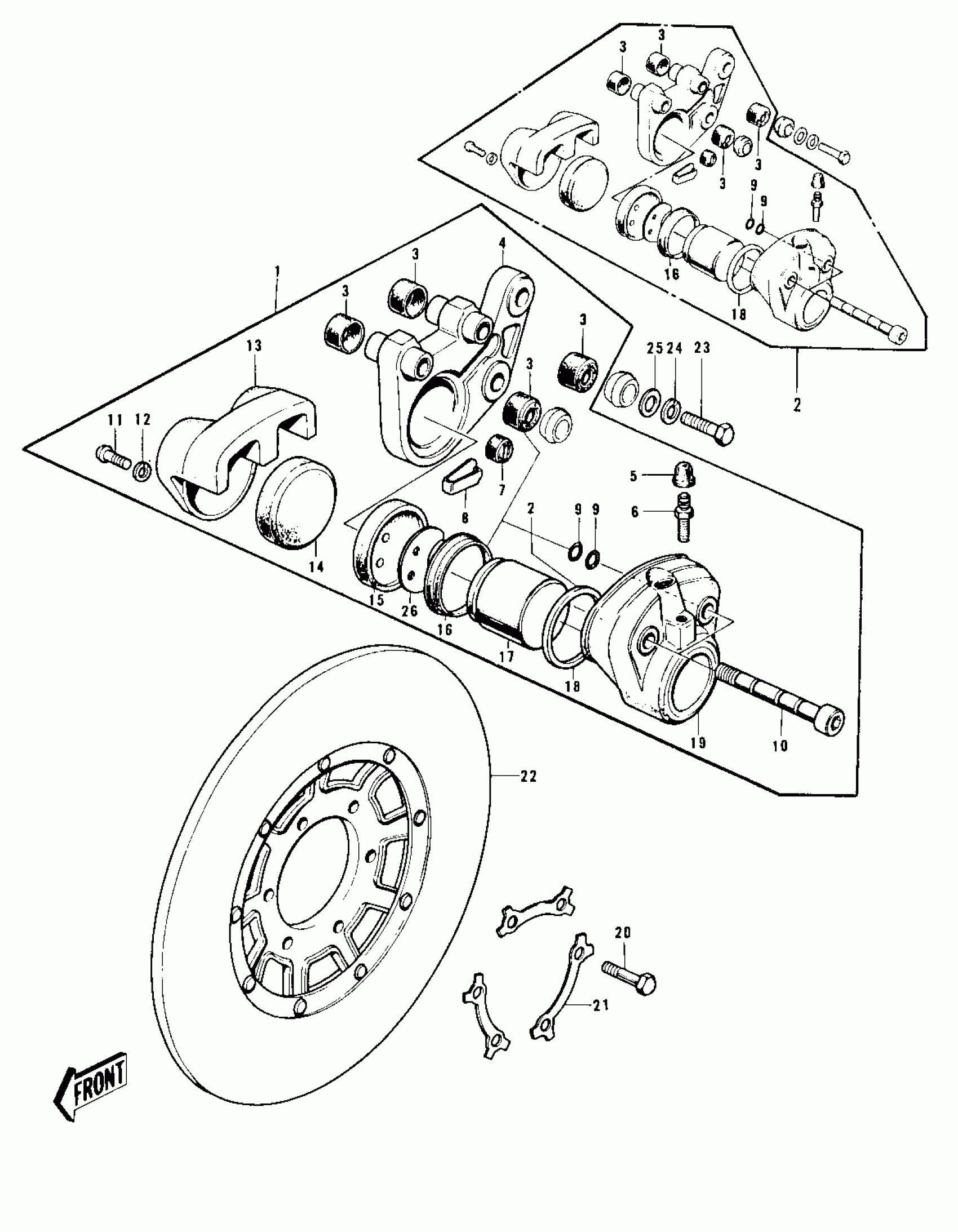

Kawasaki Z1 FRONT BRAKE Diagram
#
Description
Price
1
CALIPER ASSY
43041-004
Unavailable
2
REPAIR,SET,CALIPER
43073-004
Unavailable
3
DUST SEAL,SHAFT
43052-003
Unavailable
4
HOLDER,CALIPER
43044-004
Unavailable
5
BLEEDER SET
43085-001
Unavailable
5
BLEEDER SET
43085-001
Unavailable
6
BLEEDER SET
43085-001
Unavailable
6
BLEEDER SET
43085-001
Unavailable
7
BUSHING-RUBBER
43047-001
Unavailable
8
STOPPER-PAD A
43046-001
Unavailable
9
"0" RING,SHAFT
43053-002
Unavailable
10
SHAFT,CALIPER
43045-003
Unavailable
11
SCREW PAN HEAD 6X12
220B0612
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
CALIPER B
43043-003
Unavailable
14
PAD B
43051-001
Unavailable
15
PAD A
43082-001
Unavailable
16
DUST SEAL-PISTON
43054-002
Unavailable
17
PISTON,CALIPER
43048-002
Unavailable
18
PACKING,PISTON SEAL
43049-002
Unavailable
19
CALIPER A
43042-004
Unavailable
20
BOLT-HEX HEAD,8X28
92001-104
Unavailable
21
UNAVAILABLE IN PRICE BOOK
92068-014
Unavailable
22
DISC PLATE-FRONT BRK
41080-001
Unavailable
23
BOLT-HEX HEAD,10X43
43070-001
Unavailable
24
WASHER SPRING 10MM
461F1000
Unavailable
25
WASHER PLAIN 10MM
410B1000
Unavailable
26
SHIM
43076-001
Unavailable
