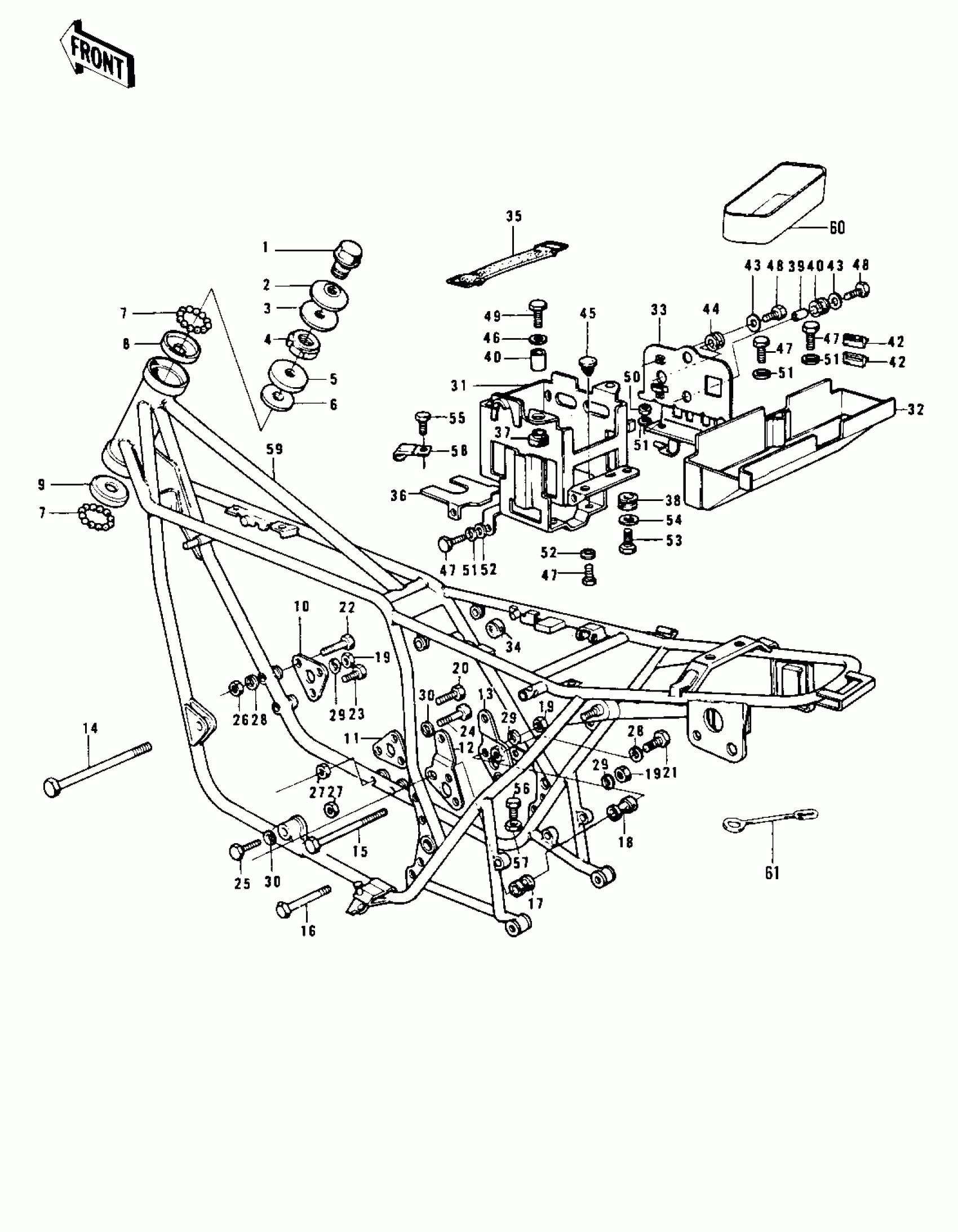

Kawasaki Z1 FRAME/FRAME FITTINGS Diagram
#
1
BOLT,16X25.5
92007-031
Unavailable
2
WASHER,16X41X4
92022-230
Unavailable
3
WASHER,WAVE
46100-003
Unavailable
4
NUT,30MM
92090-007
Unavailable
5
UNAVAILABLE IN PRICE BOOK
45096-010
Unavailable
6
RACE,STEERING STEM BEARING
92047-011
Unavailable
7
BALL-STEEL,1/4
600A0800
Unavailable
8
RACE,STEERING STEM BEARING
92048-006
Unavailable
9
RACE,STEERING STEM BEARING
92048-008
Unavailable
10
PLATE,ENG MOUNT FRON
32030-025
Unavailable
11
PLATE,ENG MOUNT LOWER
32030-026
Unavailable
12
PLATE,ENG MOUNT,L.H
32030-046
Unavailable
12
PLATE,ENG MOUNT,L.H
32030-046
Unavailable
13
PLATE,ENG MOUNT R.H
32030-028
Unavailable
13
PLATE,ENG MOUNT,R.H
32030-045
Unavailable
14
BOLT,ENGINE MOUNTING
92091-022
Unavailable
15
BOLT,ENGINE MOUNTING
92091-023
Unavailable
16
BOLT,ENGINE MOUNTING
92003-099
Unavailable
17
COLLAR,ENG MOUNTING
92027-159
Unavailable
18
COLLAR,ENG MOUNTING
92027-160
Unavailable
19
NUT,10MM
92015-1429
Unavailable
20
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
21
BOLT
92001-1578
Unavailable
21
BOLT,FLANGED,8X35
92001-1577
Unavailable
22
BOLT,8X63
92001-1397
Unavailable
23
BOLT,HEX HEAD,8X59
110G0859
Unavailable
24
BOLT,HEX HEAD,12X70
92001-1265
Unavailable
25
BOLT,HEX HEAD,12X55
92001-1262
Unavailable
26
NUT,8MM
311B0800
Unavailable
27
NUT,12MM
92016-045
Unavailable
28
WASHER SPRING 8MM
461F0800
Unavailable
29
WASHER SPRING 10MM
461F1000
Unavailable
30
WASHER-SPRING,12MM
461F1200
Unavailable
31
CASE,BATTERY
32097-022
Unavailable
32
CASE,TOOL
32098-019
Unavailable
33
BRACKET,ELECTRIC BASE
32129-001
Unavailable
34
DAMPER RUBBER,BTT CAS
92075-141
Unavailable
35
BAND,L=90
92072-045
Unavailable
35
BAND,L=90
92072-045
Unavailable
36
STAY,AIR CLEANER
32105-005
Unavailable
37
DAMPER RUBBER,BTT CA
92075-146
Unavailable
38
DAMPER
92075-161
Unavailable
39
COLLAR
92027-165
Unavailable
40
COLLAR,6.8X10X14.5
92027-156
Unavailable
41
DAMPER RUBBER
92075-149
Unavailable
42
SEAT RECTIFIER RUBBER
32103-003
Unavailable
43
WASHER,6.5X20X1.6
92022-125
Unavailable
44
DAMPER RUBBER
92075-051
Unavailable
45
DAMPER,RUBBER
92075-078
Unavailable
46
WASHER PLAIN
92022-024
Unavailable
47
BOLT-UPSET 6X14
112B0614
Unavailable
48
BOLT-UPSET,6X16
112G0616
Unavailable
49
BOLT-UPSET
112G0625
Unavailable
50
NUT 6MM
312B0600
Unavailable
51
WASHER SPRING 6MM
461F0600
Unavailable
52
WASHER PLAIN 6MM
411B0600
Unavailable
53
BOLT,HEAX HEAD,6X14
92001-115
Unavailable
54
WASHER PLAIN 8MM
410B0800
Unavailable
55
BOLT,6X10
112G0610
Unavailable
56
BOLT-UPSET,6X20
112G0620
Unavailable
57
NUT 6MM
311B0600
Unavailable
58
CLAMP,WIRING HARNESS
21126-008
Unavailable
59
FRAME
32002-1018
Unavailable
60
CASE,BATTERY
32099-015
Unavailable
61
CLAMP,OVER FLOW PIPE
92037-134
Unavailable
