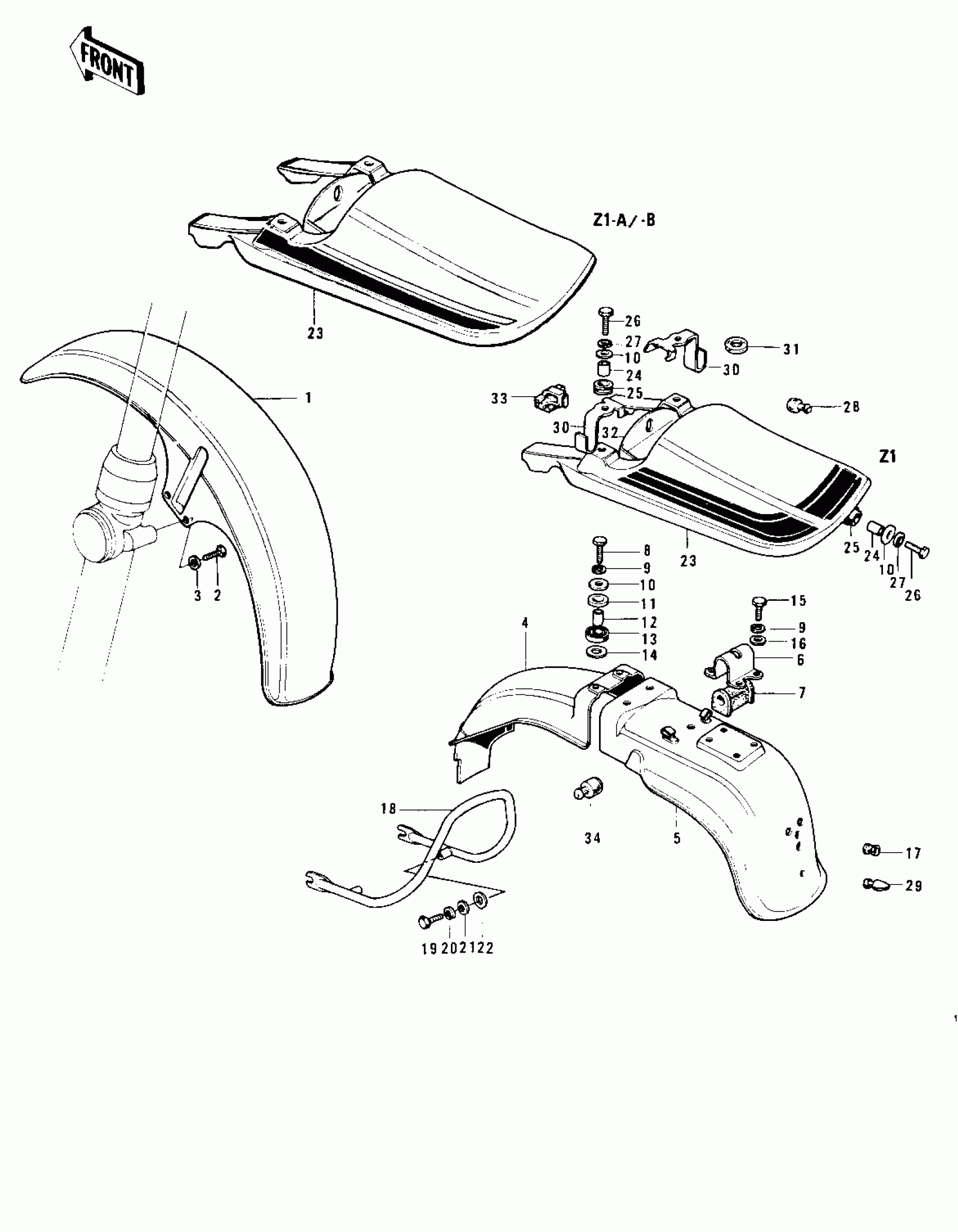

Kawasaki Z1 FENDERS/SEAT COVER Diagram
#
1
FENDER-FR
35003-015
Unavailable
2
BOLT HEX HEAD 8X16
110B0816
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
FENDER-RR
35022-071
Unavailable
5
FENDER-RR
35022-072
Unavailable
6
BRACKET,REAR FENDER
35026-006
Unavailable
7
DAMPER RUBBER,RR FEN
92075-132
Unavailable
8
BOLT 6X32
110B0632
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
WASHER,7X24X1.6
92022-228
Unavailable
11
DAMPER,FENDER
92075-121
Unavailable
12
COLLAR,6.8X10X12
92027-162
Unavailable
13
DAMPER RUBBER,RR FEND
92075-133
Unavailable
14
WASHER,7X27X1.6
92022-227
Unavailable
15
BOLT HEX HEAD 6X16
116B0616
Unavailable
16
WASHER PLAIN 6MM
411B0600
Unavailable
17
GROMMET,10MM
92071-019
Unavailable
18
STAY,REAR FENDER
35032-022
Unavailable
19
BOLT-UPSET,10X22
113B1022
Unavailable
20
WASHER SPRING 10MM
461F1000
Unavailable
21
WASHER-PLAIN,10MM
411B1000
Unavailable
22
WASHER,10.5X26X2.3
92022-044
Unavailable
23
COVER,RR FENDR C,BRWN
53043-004-96
Unavailable
23
BACKREST,SEAT,ORANGE
53043-004-2E
Unavailable
23
BACKREST,SEAT,YELLOW
53043-004-2F
Unavailable
23
COVER,RR FENDER,C.RED
53043-004-2R
Unavailable
23
COVER,RR FENDR,C.BLUE
53043-004-2S
Unavailable
24
COLLAR,6.8X10X12
92027-162
Unavailable
25
RUBBER,FENDER COVER
92075-174
Unavailable
26
BOLT-UPSET
116B0625
Unavailable
27
WASHER SPRING 6MM
461F0600
Unavailable
28
PLUG,BACKREST HOLE
92074-022
Unavailable
29
RUBBER,LICENSE PLATE
92075-176
Unavailable
30
BRACKET,HELMET HOLDER
32122-010
Unavailable
31
DAMPER,FEMALE
92075-175
Unavailable
32
CASE
32099-010
Unavailable
33
PLUG,CASE RUBBER
92074-024
Unavailable
34
DAMPER RUBBER,RR FEN
92075-135
Unavailable
