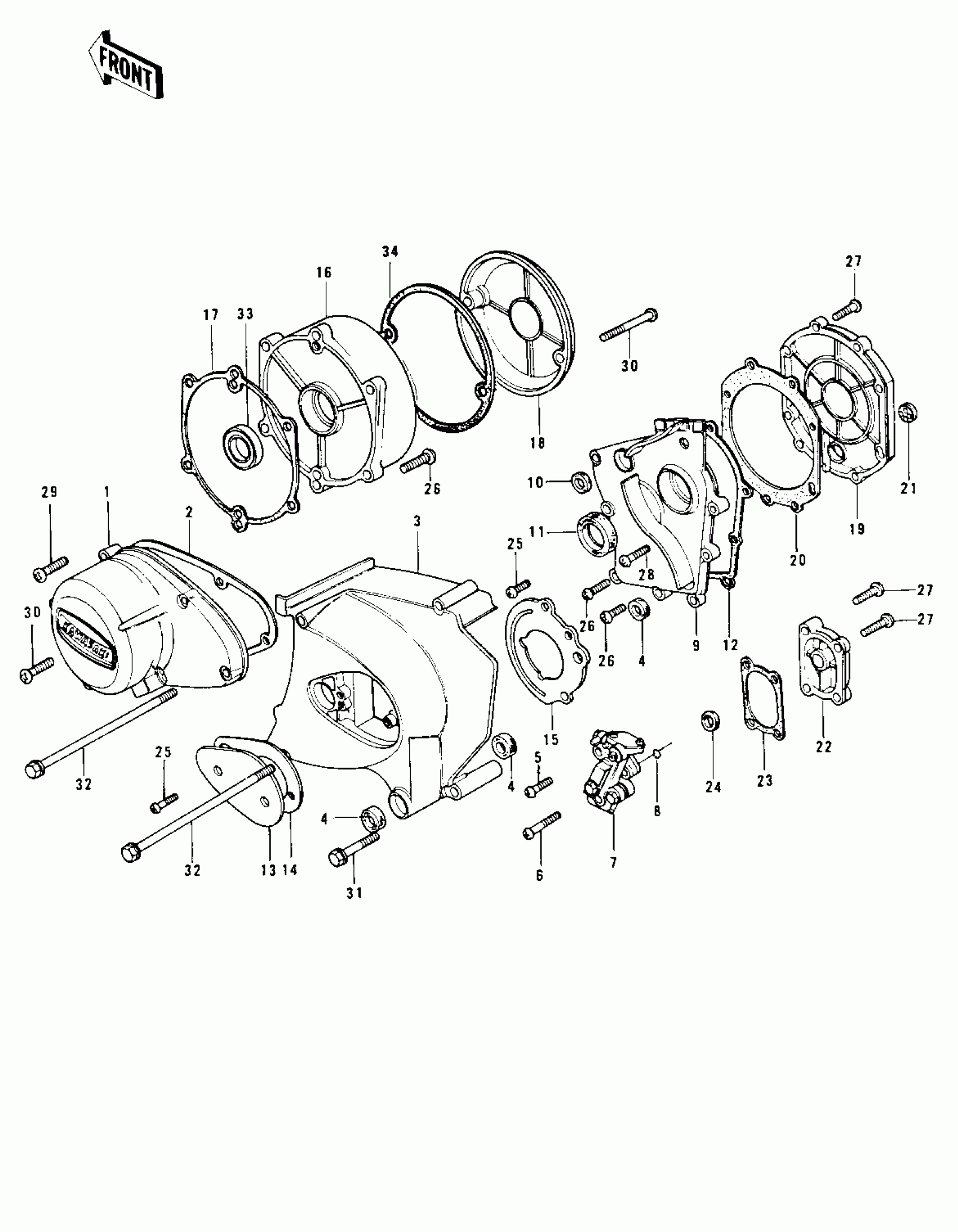

Kawasaki Z1 ENGINE COVERS Diagram
#
1
COVER,L.H ENGINE
14031-1020
Unavailable
2
GASKET,GENERATOR COVER
11060-1075
Unavailable
3
COVER,FRONT CHAIN
14026-026
Unavailable
3
COVER,FRONT CHAIN
14026-026
Unavailable
4
SEAL-OIL,SB12205
92049-004
Unavailable
5
SCREW-PAN-CROS
220B0512
Unavailable
6
SCREW-PAN-CROS
220B0528
Unavailable
7
OIL PUMP ASSY
16082-056
Unavailable
7
OIL PUMP ASSY
16082-056
Unavailable
8
"O" RING,OIL PUMP
92055-053
Unavailable
9
COVER,TRANSMISSION
14025-1106
Unavailable
10
OIL SEAL,TC7187
92050-048
Unavailable
11
SEAL-OIL,SC325210
92050-024
Unavailable
12
GASKET,MISSION COVER
14058-004
Unavailable
13
COVER,OIL PUMP
14026-012
Unavailable
14
GASKET,OIL PUMP,COVER
14045-015
Unavailable
15
COVER,ENGINE SPROCKET
14024-008
Unavailable
16
COVER,R.H ENGINE
14032-083
Unavailable
17
GASKET,RH ENGINE COVER
11060-1071
Unavailable
18
COVER,BREAKER POINT
14027-023-80
Unavailable
19
COVER,CLUTCH
14032-121
Unavailable
20
GASKET,CLUTCH
14046-024
Unavailable
21
GAUGE,OIL LEVEL
52015-004
Unavailable
22
COVER,KICK SHAFT,BAR
14032-075-2H
Unavailable
22
COVER,KICK SHAFT,BAR
14032-075-2H
Unavailable
23
GASKET,KICK COVER
14046-025
Unavailable
24
SEAL-OIL,SC22325
92049-1048
Unavailable
25
SCREW PAN HEAD 6X12
220B0612
Unavailable
26
SCREW PAN HEAD 6X22
220B0622
Unavailable
27
SCREW PAN HEAD 6X25
220B0625
Unavailable
28
SCREW PAN HEAD 6X28
220B0628
Unavailable
29
SCREW PAN HEAD 6X30
220B0630
Unavailable
30
SCREW PAN HEAD 6X40
220B0640
Unavailable
31
BOLT,6X70
110G0670
Unavailable
32
BOLT-UPSET,6X125
112G06125
Unavailable
33
OIL SEAL,S25407R
92050-047
Unavailable
34
GASKET,POINT CAP
14050-006
Unavailable
