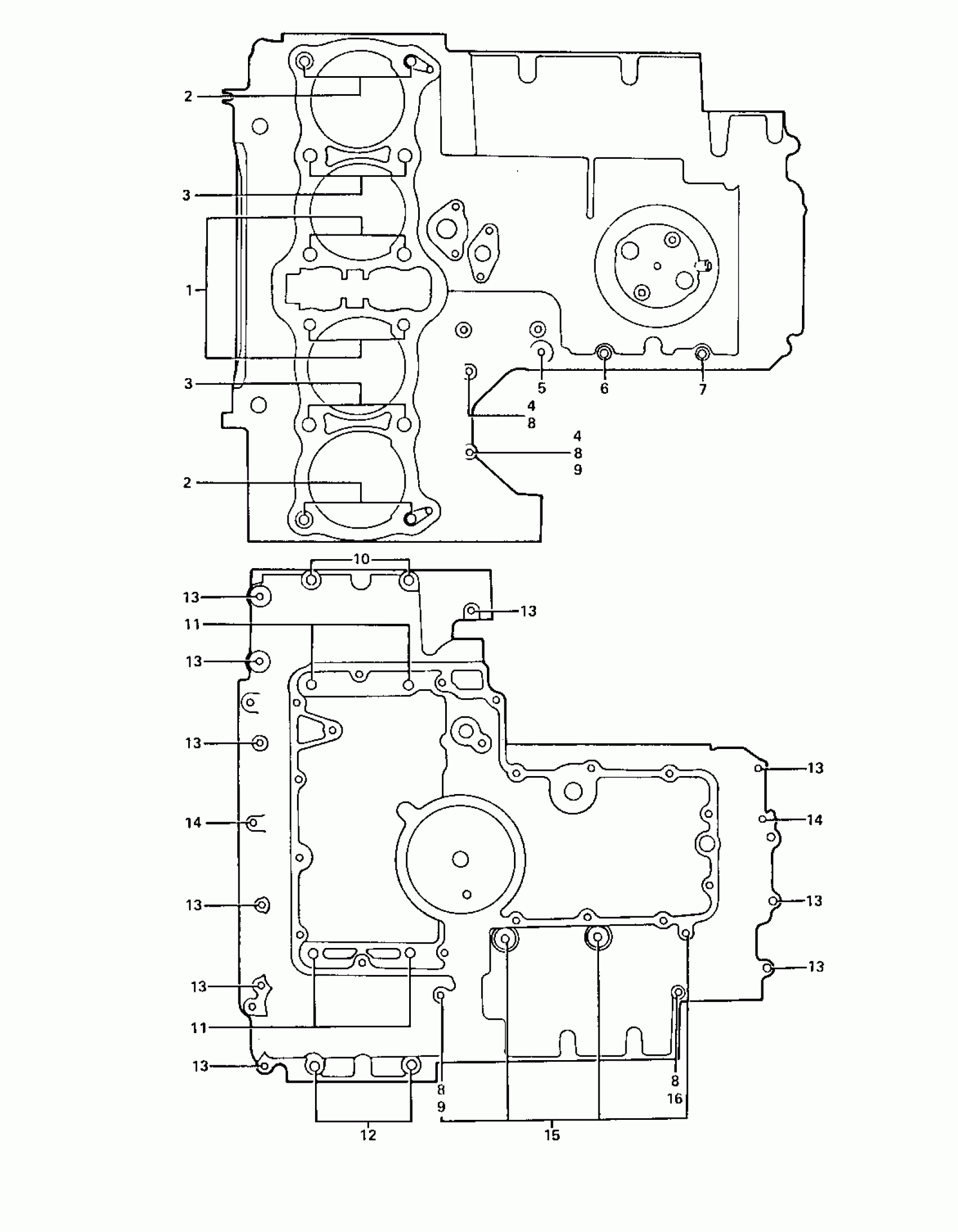

Kawasaki Z1 CRANKCASE BOLT & STUD PATTERN Diagram

#

Description

Price

1

STUD,10X167

92004-1002

Unavailable

1

STUD,10X133

92004-1004

Unavailable

2

STUD,10X158

92004-1003

Unavailable

2

STUD,10X158

92004-1003

Unavailable

3

STUD,10X133

92004-1004

Unavailable

3

STUD,10X167

92004-1002

Unavailable

4

BOLT,HEX HEAD,6X41

92003-109

Unavailable

5

BOLT,HEX HEAD,6X54

92003-110

Unavailable

6

BOLT,HEX HEAD,6X99

92003-111

Unavailable

7

BOLT,HEX HEAD,6X116

92003-113

Unavailable

8

CLAMP,WIRING HARNESS

21126-008

Unavailable

9

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

10

BOLT-FLANGED,8X95

130P0895

Unavailable

11

BOLT,HEX HEAD,8X72

92003-107

Unavailable

12

BOLT,HEX HEAD,8X81

92003-108

Unavailable

13

BOLT,HEX HEAD,6X41

92003-109

Unavailable

14

BOLT,HEX HEAD,6X54

92003-110

Unavailable

15

BOLT-FLANGED,6X95

130G0695

Unavailable

16

BOLT-FLANGED,6X70

130G0670

Unavailable
