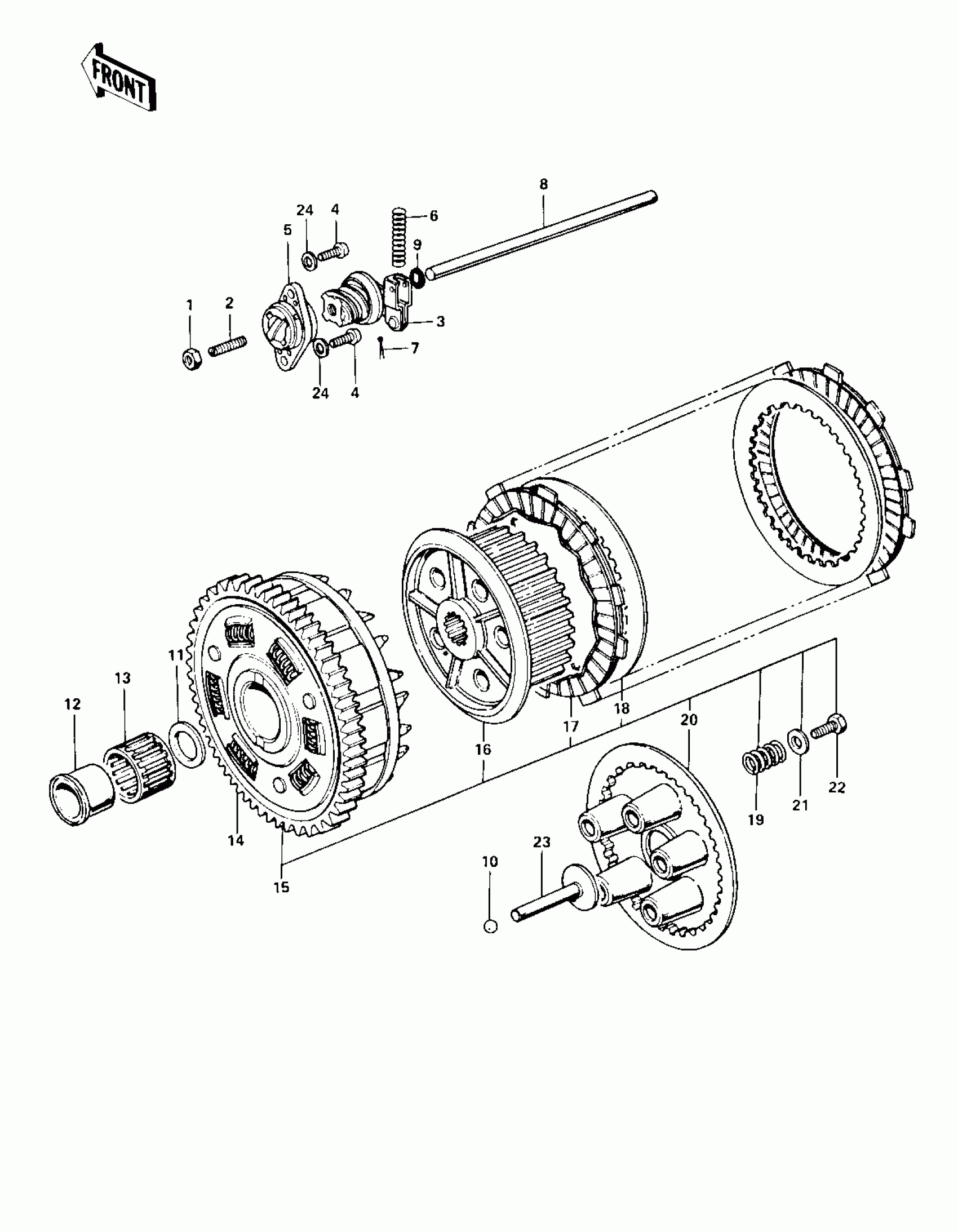

Kawasaki Z1 CLUTCH Diagram
#
Description
Price
1
NUT 8MM
315B0800
Unavailable
2
SCREW,SLOTTED,8X25
92014-014
Unavailable
3
INNER,CLUTCH RELEASE
13102-013
Unavailable
4
SCREW-PAN-CROS,6X16
220B0616
Unavailable
5
OUTER,CLUTCH RELEASE
13118-007
Unavailable
6
SPRING,CLUTCH RELEASE
92081-069
Unavailable
7
PIN-COTTER,1.6X15
550D1615
Unavailable
8
PUSH ROD,CLUTCH
13116-021
Unavailable
9
O RING,7MM
670B1507
Unavailable
10
BALL-STEEL,3/8"
600A1200
Unavailable
11
SPACER,25.5X47X2.5
92026-022
Unavailable
12
BUSHING,CLUTCH
92028-135
Unavailable
12
BUSHING,CLUTCH
92028-135
Unavailable
13
BEARING-NEEDLE,KTV323723
92046-028
Unavailable
14
CLUTCH-ASSY
13081-1367
Unavailable
15
CLUTCH-ASSY
13081-1014
Unavailable
16
CLUTCH-ASSY
13081-1367
Unavailable
17
PLATE,CLUTCH FRICTION
13088-030
Unavailable
18
PLATE,CLUTCH STEEL
13089-022
Unavailable
19
SPRING,CLUTCH
92081-1033
Unavailable
19
SPRING,CLUTCH
92081-1033
Unavailable
20
PLATE,CLUTCH SPRING
13187-006
Unavailable
21
HOLDER,CLUTCH SPRING
13091-011
Unavailable
22
BOLT-UPSET
112G0618
Unavailable
23
PUSHER,CLUTCH SPRG P
13116-022
Unavailable
24
WASHER PLAIN 6MM
411B0600
Unavailable
