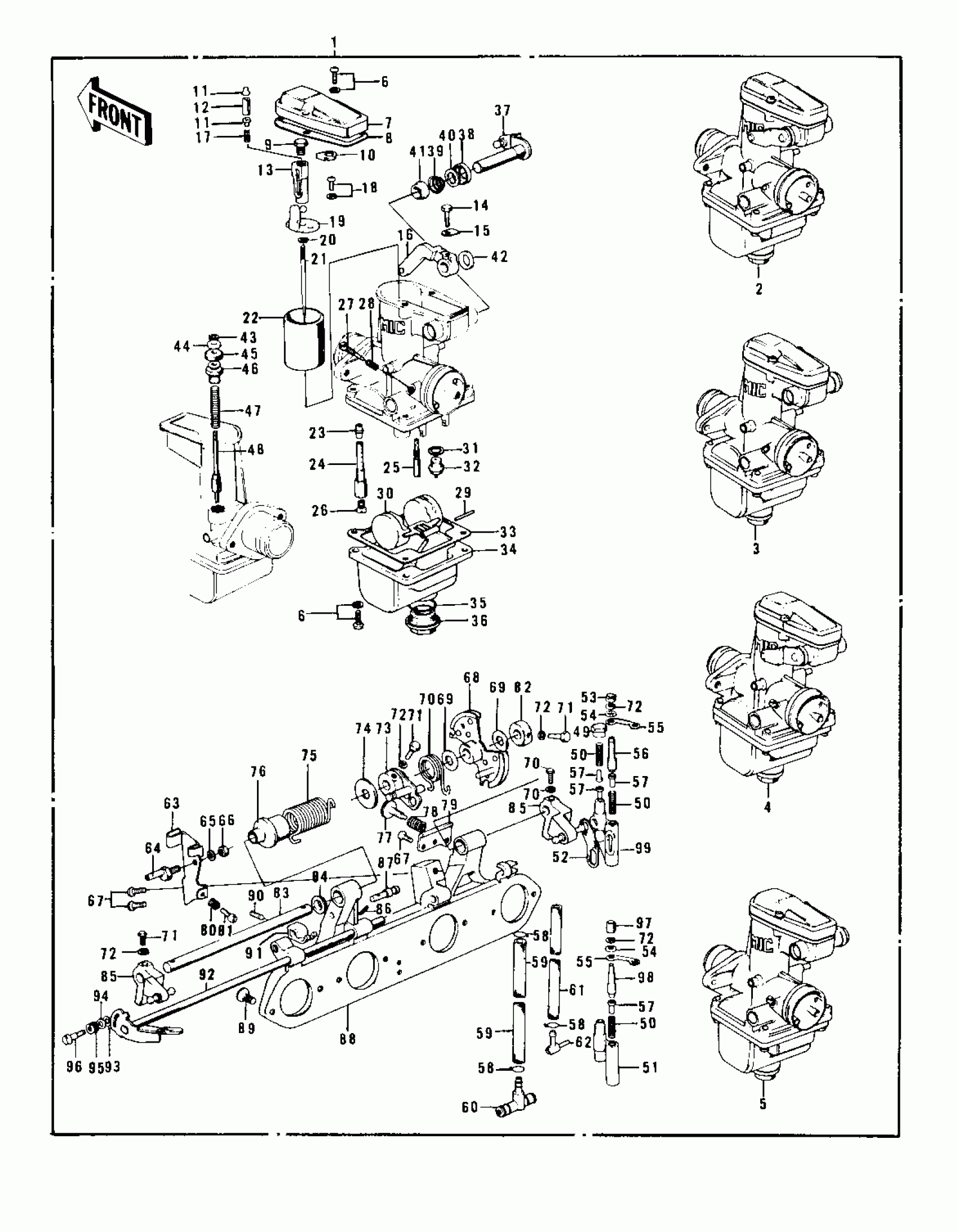

Kawasaki Z1 CARBURETORS ( Diagram
#
1
CARBURETOR ASSY,VM28
16001-217
Unavailable
1
CARBURETOR ASSY,VM28
16001-217
Unavailable
2
CABRETOR ASSY,A
16001-172
Unavailable
2
CARBURETOR,D
16001-229
Unavailable
3
CABRETOR ASSY,B
16001-173
Unavailable
3
CARBURETOR,C
16001-228
Unavailable
4
CABRETOR ASSY,C
16001-174
Unavailable
4
CARBURETOR,B
16001-227
Unavailable
5
CABRETOR ASSY,D
16001-175
Unavailable
5
CARBURETOR,A
16001-226
Unavailable
6
SCREW FLOAT CHAMBER
16033-009
Unavailable
7
TOP,MIXING CHAMBER
16005-023
Unavailable
8
GASKET,CHAMBER TOP
16019-018
Unavailable
9
BOLT,A
16067-003
Unavailable
10
WASHER,LOCK
16054-003
Unavailable
11
SEAT-SPRING
16057-002
Unavailable
12
HOLDER,THROTTLE SHAFT
16065-017
Unavailable
12
HOLDER,THROTTLE SHAFT
16065-038
Unavailable
13
SHAFT,THROTTLE VALVE
16052-003
Unavailable
14
BOLT,B
16067-004
Unavailable
15
WASHER,LOCK,B
16054-004
Unavailable
16
LEVER,A
16068-007
Unavailable
17
SPRING
16040-004
Unavailable
18
SCREW,FLOAT CHAM FIT
16033-027
Unavailable
19
PLATE,THROTTLE VALVE
16007-018
Unavailable
20
CLAMP,E-TYPE
16008-010
Unavailable
21
JET NEEDLE 5J9
16009-055
Unavailable
22
VALVE,THROTTLE CA2.5
16025-051
Unavailable
22
VALVE,THROTTLE CAL,5
16025-075
Unavailable
23
NEEDLE JET P-8
16017-064
Unavailable
23
NEEDLE JET,0-8
16017-086
Unavailable
24
HOLDER,NEEDLE JET
16047-002
Unavailable
24
HOLDER,NEEDLE JET
16047-003
Unavailable
25
PILOT JET #20
92064-035
Unavailable
25
PILOT JET,#17.5
92064-042
Unavailable
26
JET-MAIN NO 112.5R
92063-075
Unavailable
26
JET-MAIN NO 107.5R
92063-073
Unavailable
26
MAIN JET,#110R
92063-1038
Unavailable
26
JET-MAIN NO 115R
92063-076
Unavailable
26
JET-MAIN NO 117.5R
92063-077
Unavailable
27
SCREW,PILOT AIR ADJST
16014-012
Unavailable
28
SPRING,PILOT AIR SCREW
16022-007
Unavailable
29
PIN,FLOAT
16032-003
Unavailable
30
FLOAT
16031-024
Unavailable
31
WASHER FLOAT VLV SEAT
16029-004
Unavailable
32
FLOAT VALVE ASSY,#2.6
16030-025
Unavailable
33
GASKET,FLOAT CHAMBER
16019-019
Unavailable
33
GASKET,FLOAT CHAMBER
16019-025
Unavailable
34
BODY,FLOAT CHAMBER
16020-015
Unavailable
34
BODY,FLOAT CHMBR-1,2
16020-016
Unavailable
34
BODY,FLOAT CHMBR-3,4
16020-017
Unavailable
35
GASKET,MAIN JET COVER
16038-009
Unavailable
35
"0" RING,MAIN JET COV
16038-016
Unavailable
36
COVER,MAIN JET
16049-003
Unavailable
36
SCREW GUIDE
16049-005
Unavailable
37
LEVER,B
16068-008
Unavailable
38
COLLAR,A
16073-002
Unavailable
39
SPRING,B
16040-005
Unavailable
40
WASHER,PLAIN
16039-012
Unavailable
41
COLLAR,B
16073-003
Unavailable
42
WASHER,PLAIN
16039-013
Unavailable
43
CIRCLIP
16076-003
Unavailable
44
WASHER,PLAIN
16039-014
Unavailable
45
CAP,STARTER PLUNGER
16039-015
Unavailable
46
CAP,STARTER PLUNGER
16012-015
Unavailable
47
SPRING,STARTER PLUG
16013-008
Unavailable
48
PLUNGER,STARTER
16016-010
Unavailable
48
PLUNGER SET,STARTER
16016-016
Unavailable
49
BOLT,C
16067-005
Unavailable
50
SPRING-PLUNGER
16013-003
Unavailable
51
HOLDER
16065-018
Unavailable
52
PLATE,DUST
16055-002
Unavailable
53
NUT,6MM
16003-007
Unavailable
54
WASHER,PLAIN
16039-016
Unavailable
55
WASHER,LOCK,C
16054-005
Unavailable
56
ADJUSTER,THROTTLE STP
16021-018
Unavailable
57
SEAT,SPRING
16057-003
Unavailable
58
CLAMP,TUBE
92037-072
Unavailable
59
HOSE,FUEL
92059-144
Unavailable
59
PIPE,FUEL
92059-109
Unavailable
60
JOINT,FUEL PIPE
16046-002
Unavailable
61
PIPE,OVER FLOW
92059-085
Unavailable
61
HOSE,FUEL
92059-144
Unavailable
62
JOINT,OVER FLOW PIPE
16046-003
Unavailable
63
GUIDE,CONTROL CABLE
16077-007
Unavailable
64
PIN,SCREW STOPPER
16042-005
Unavailable
65
WASHER SPRING 6MM
461F0600
Unavailable
66
NUT 6MM
312B0600
Unavailable
67
SCREW,PAN HEAD,5X14
16033-016
Unavailable
68
WHEEL,CONTROL CABLE
16074-001
Unavailable
68
WHEEL,CONTROL
16074-002
Unavailable
68
PULLEY,THROTTLE CABLE
16074-006
Unavailable
69
WASHER,PLAIN
16039-017
Unavailable
70
SPRING,D
16040-007
Unavailable
71
BOLT,HEX HEAD,5X14
16067-006
Unavailable
71
BOLT
110N0516
Unavailable
72
WASHER SPRING 5MM
461F0500
Unavailable
73
LEVER,A
16063-001
Unavailable
73
LEVER A
16063-005
Unavailable
74
WASHER,PLAIN
16039-018
Unavailable
75
SPRING,E
16040-008
Unavailable
75
SPRING,E
16040-010
Unavailable
75
SPRING,E
16040-024
Unavailable
76
COLLER,D
16073-005
Unavailable
76
COLLAR D
16073-009
Unavailable
77
SCREW,THROTTLE STOP
16021-019
Unavailable
78
SPRING,THR STOP SCREW
16022-009
Unavailable
79
PLATE,THOTTLE STOP
16055-003
Unavailable
80
SPRING,THROTTLE ADJST
16022-010
Unavailable
81
ADJUSTER,THROTTLE LEV
16021-020
Unavailable
82
COLLAR,E
16073-006
Unavailable
83
SHAFT
16041-004
Unavailable
83
SHAFT,STARTER LEVER
16041-006
Unavailable
83
SHAFT
16041-020
Unavailable
84
COLLAR,F
16073-007
Unavailable
85
LEVER,B
16063-002
Unavailable
86
COTTER PIN
16023-004
Unavailable
87
PIN,SPRING HOOK
16042-006
Unavailable
88
HOLDER
16065-019
Unavailable
89
SCREW-CSK-CROS,6X12
221B0612
Unavailable
90
SCREW,SLOTTED
16046-004
Unavailable
90
SCREW,PAN HEAD,5X7
16046-007
Unavailable
91
LEVER,STARTER PLUNGER
16063-003
Unavailable
92
SHAFT,STARTER LEVER
16041-005
Unavailable
92
SHAFT,STARTER LEVER
16041-012
Unavailable
93
WASHER,PLAIN,NYLON
16039-019
Unavailable
94
WASHER,PLAIN
16039-020
Unavailable
95
SPRING,F
16040-009
Unavailable
96
SCREW
16046-005
Unavailable
97
NUT,LOCK
16003-008
Unavailable
98
ADJUSTER,THROTTLE STP
16021-5001
Unavailable
99
HOLDER
16065-020
Unavailable
