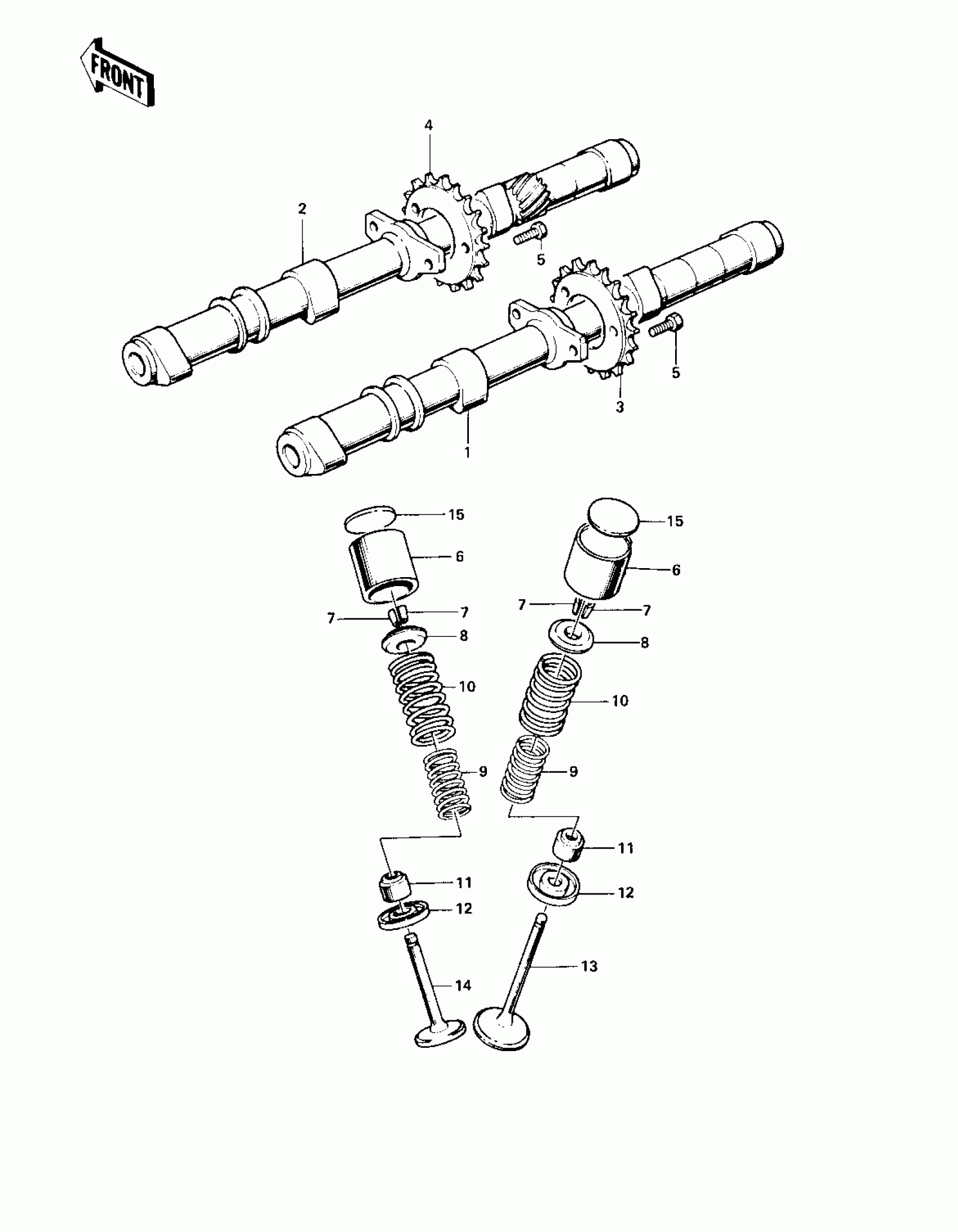

Kawasaki Z1 CAMSHAFTS/VALVES Diagram
#
1
CAMSHAFT,INLET
12044-014
Unavailable
1
CAMSHAFT,INLET
12044-014
Unavailable
2
CAMSHAFT,EXHAUST
12044-015
Unavailable
2
CAMSHAFT,EXHAUST
12044-015
Unavailable
3
SPROCKET,CAM SHAFT IN
12046-001
Unavailable
4
SPROCKET,CAM SHAFT EX
12046-002
Unavailable
5
BOLT,FLANGED,6X11
92003-208
Unavailable
6
TAPPET
12032-005
Unavailable
7
COLLAR,VALUE SPRING
12011-002
Unavailable
8
RETAINER-VALVE SPRING
12009-005
Unavailable
9
SPRING-ENGINE VALVE,INNER
12007-011
Unavailable
10
SPRING-ENGINE VALVE,OUTER
12007-012
Unavailable
11
SEAL-OIL,RV37129.5
92049-016
Unavailable
12
SEAT-SPRING,VALVE
16007-1024
Unavailable
13
VALVE,INLET
12004-012
Unavailable
14
VALVE,EXHAUST
12005-005
Unavailable
15
SHIM,T=2.00
12037-001
Unavailable
15
SHIM,T=2.05
12037-002
Unavailable
15
SHIM,T=2.10
12037-003
Unavailable
15
SHIM,T=2.15
12037-004
Unavailable
15
SHIM,T=2.20
12037-005
Unavailable
15
SHIM,T=2.25
12037-006
Unavailable
15
SHIM,T=2.30
12037-007
Unavailable
15
SHIM,T=2.35
12037-008
Unavailable
15
SHIM,T=2.40
12037-009
Unavailable
15
SHIM,T=2.45
12037-010
Unavailable
15
SHIM,T=2.50
12037-011
Unavailable
15
SHIM,T=2.55
12037-012
Unavailable
15
SHIM,T=2.60
12037-013
Unavailable
15
SHIM,T=2.65
12037-014
Unavailable
15
SHIM,T=2.70
12037-015
Unavailable
15
SHIM,T=2.75
12037-016
Unavailable
15
SHIM,T=2.80
12037-017
Unavailable
15
SHIM,T=2.85
12037-018
Unavailable
15
SHIM,T=2.90
12037-019
Unavailable
15
SHIM,T=2.95
12037-020
Unavailable
15
SHIM,T=3.00
12037-021
Unavailable
15
SHIM,T=3.05
12037-022
Unavailable
15
SHIM,T=3.10
12037-023
Unavailable
15
SHIM,T=3.15
12037-024
Unavailable
15
SHIM,T=3.20
12037-025
Unavailable
