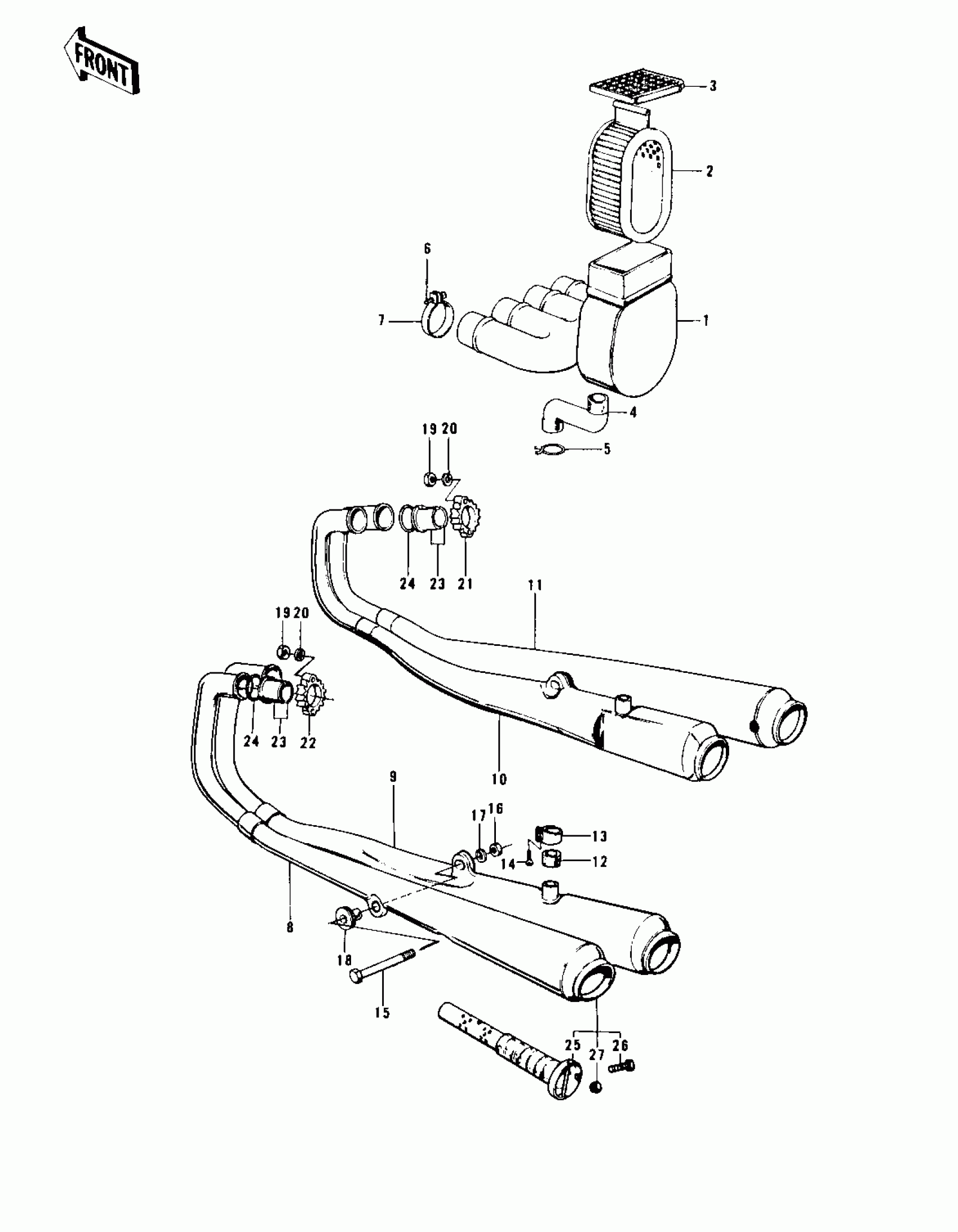

Kawasaki Z1 AIR CLEANER/MUFFLERS Diagram
#
Description
Price
1
BODY,AIR CLEANER
11011-022
Unavailable
2
ELEMENT,AIR,CLNR
11013-034
Unavailable
3
CAP,AIR CLEANER
11012-030
Unavailable
4
PIPE,BREATHER
92059-078
Unavailable
5
CLAMP BREATHER PIPE
92037-028
Unavailable
6
SCREW-PAN-CROS
220B0535
Unavailable
7
CLAMP,AIR INLET
92123-002
Unavailable
8
MUFFLER ASSY,L.H UPP
18001-227
Unavailable
9
MUFFLER ASSY,L.H LOW
18001-228
Unavailable
10
MUFFLER ASSY,R.H LOW
18001-183
Unavailable
11
MUFFLER ASSY,R.H UPP
18001-184
Unavailable
12
PIPE,MUFFLER CONNECT
92059-079
Unavailable
12
PIPE,MUFFLER CONNECT
92059-120
Unavailable
13
CLAMP,MUFFLER CONNECT
92037-103
Unavailable
14
SCREW PAN HEAD 5X16
220B0516
Unavailable
14
SCREW-PAN-CROS,6X16
220B0616
Unavailable
15
BOLT,HEX HEAD,10X104
92003-180
Unavailable
15
BOLT,HEX HEAD,10X104
92003-180
Unavailable
15
BOLT,HEX HEAD,10X104
92003-180
Unavailable
16
NUT,10MM
92015-1429
Unavailable
16
NUT,LOCK,10MM
92019-021
Unavailable
17
WASHER PLAIN 10MM
410B1000
Unavailable
18
BUSHING,MUFFLER FITT
92092-010
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
WASHER SPRING 6MM
461F0600
Unavailable
21
HOLDER,EXHAUST PIPE
18069-045
Unavailable
22
HOLDER,EXHAUST PIPE
18069-046
Unavailable
23
INSERT,EXHAUST PIPE
92027-170
Unavailable
24
GASKET,EXHAUST PIPE
11009-1906
Unavailable
25
BAFFLE TUBE
18033-058
Unavailable
26
BOLT-UPSET,6X16
112G0616
Unavailable
27
NUT 6MM
311B0600
Unavailable
