Description

Price

11012

CAP

11012-1854

$9.43

11060

GASKET,RESERVOIR TANK CAP

11060-1349

$5.46

130

BOLT-FLANGED,6X16

130BA0616

$1.20

39062

HOSE-COOLING,W/PUMP-FITTING

39062-0681

$30.33

39062A

HOSE-COOLING,W/PIPE-W/PUMP

39062-0683

$9.84

39062B

HOSE-COOLING

39062-0863

$7.45

39062C

HOSE-COOLING,OVER FLOW

39062-0865

$13.71

39062D

HOSE-COOLING

39062-0866

$41.26

39062E

HOSE-COOLING

39062-0867

$12.28

39062F

HOSE-COOLING

39062-0868

$11.54

39192

PIPE-WATER

39192-0664

$131.22

39192A

PIPE-WATER

39192-0666

$131.46

43078

RESERVOIR

43078-0606

$66.73

49054

THERMOSTAT

49054-0004

$59.01

92005

FITTING

92005-0721

$9.09

92005A

FITTING,THERMO COVER

92005-0962

$103.89

92005B

FITTING,CYLINDER

92005-0963

$112.58

92015

NUT,WELL,5MM

92015-1757

$7.29

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O

92055-0809

$7.40

92055A

RING-O,54.5X2.6

92055-0810

$3.02

92075

DAMPER,RUBBER

92075-1123

$5.00

92152

COLLAR

92152-2112

$8.05

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X16

92154-1449

$1.19

92154B

BOLT,SOCKET,6X25

92154-1457

$1.48

92154C

BOLT,SOCKET,6X20

92154-1499

$1.48

92171

CLAMP

92171-0720

$1.30

92173

CLAMP,34MM

92173-1360

$3.96

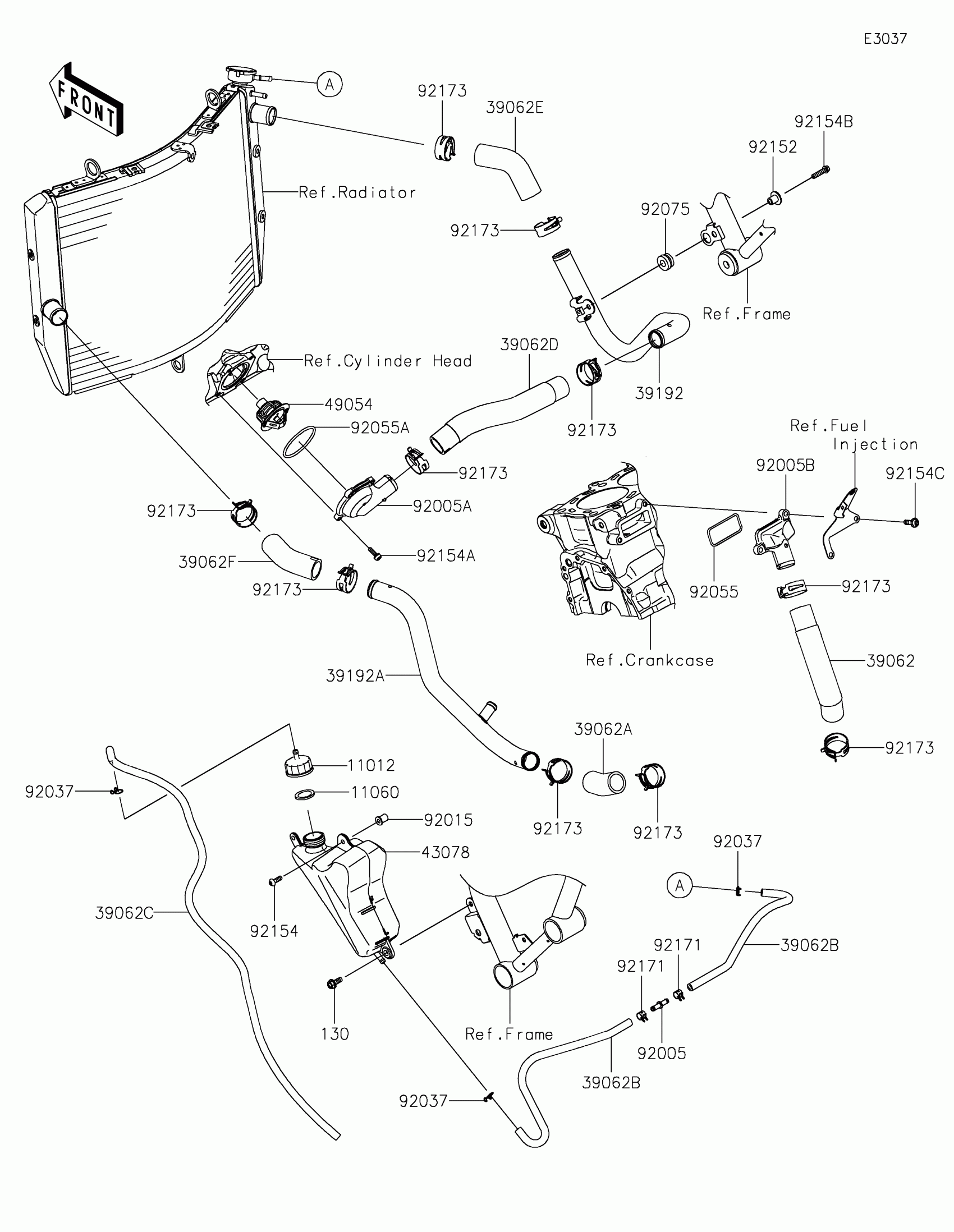

Kawasaki Z H2 Water Pipe Diagram

CAP

GASKET,RESERVOIR TANK CAP

BOLT-FLANGED,6X16

HOSE-COOLING,W/PUMP-FITTING

HOSE-COOLING,W/PIPE-W/PUMP

HOSE-COOLING

HOSE-COOLING,OVER FLOW

HOSE-COOLING

HOSE-COOLING

HOSE-COOLING

PIPE-WATER

PIPE-WATER

RESERVOIR

THERMOSTAT

FITTING

FITTING,THERMO COVER

FITTING,CYLINDER

NUT,WELL,5MM

CLAMP,TUBE

RING-O

RING-O,54.5X2.6

DAMPER,RUBBER

COLLAR

BOLT,SOCKET,5X16

BOLT,SOCKET,5X16

BOLT,SOCKET,6X25

BOLT,SOCKET,6X20

CLAMP

CLAMP,34MM
