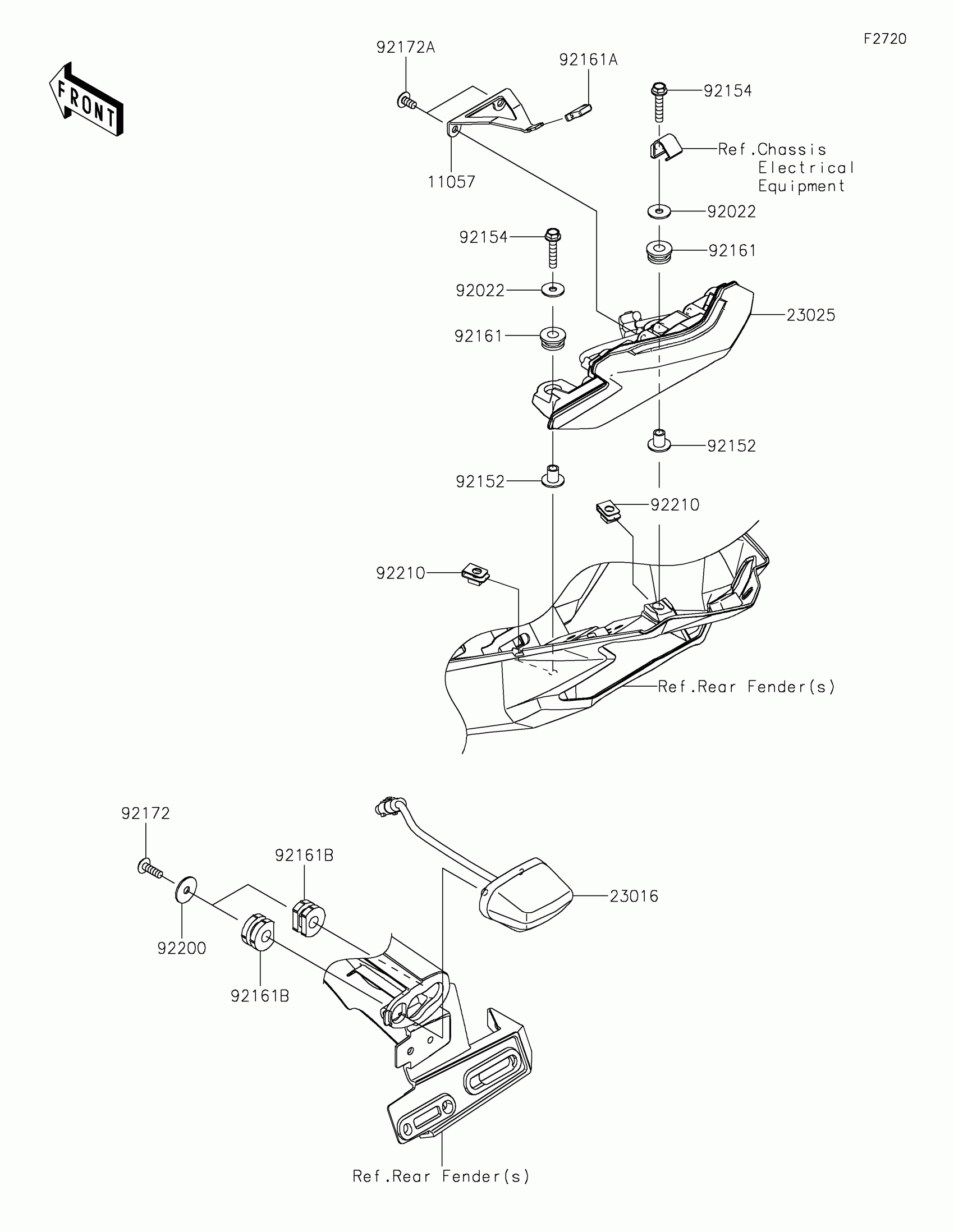

Kawasaki Z H2 Taillight(s) Diagram

Description

Price

11057

BRACKET,TAIL LAMP

11057-0247

$4.31

23016

LAMP-ASSY,LICENSE,LED

23016-0639

$67.09

23025

LAMP-TAIL

23025-0361

$298.53

92022

WASHER,5.2X16X1.2

92022-263

$1.41

92152

COLLAR,5.6X8X11.2

92152-1562

$2.19

92154

BOLT,FLANGED,5X25

92154-2682

$1.10

92161

DAMPER

92161-0317

$2.71

92161A

DAMPER

92161-0365

$4.23

92161B

DAMPER

92161-0776

$4.39

92172

SCREW,TAPPING,5X16

92172-0175

$1.53

92172A

SCREW,TAPPING,5X10

92172-0262

$1.20

92200

WASHER,5.5X20X1.2

92200-0284

$1.81

92210

NUT,PLATE,5MM

92210-0935

$1.68
