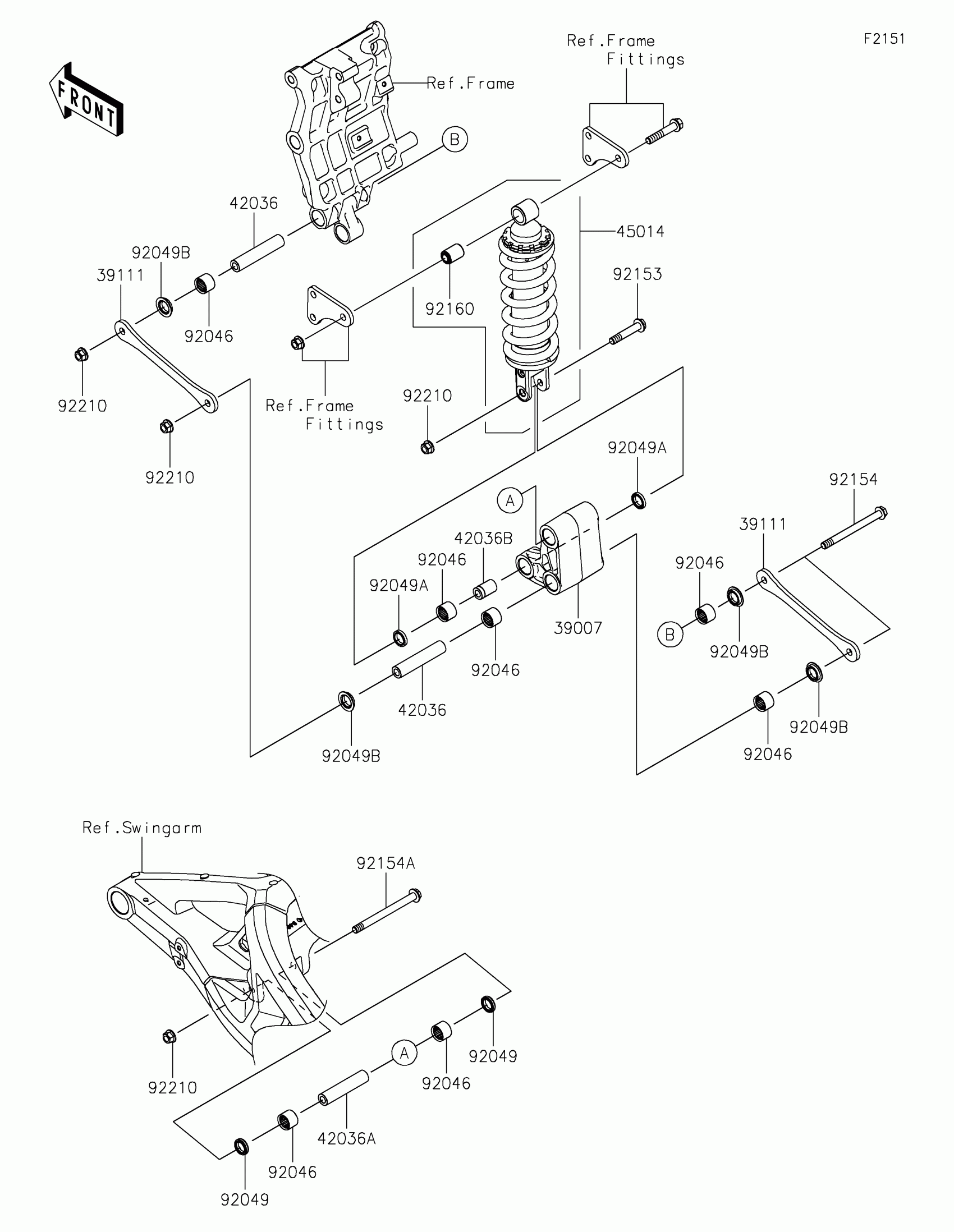

Kawasaki Z H2 Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0443

$251.49

39111

ROD-TIE,SUSPENSION

39111-0375

$35.00

42036

SLEEVE,10.1X16X90.5

42036-0763

$43.89

42036A

SLEEVE,10.1X18X90.5

42036-0828

$29.34

42036B

SLEEVE,10.1X18X83.5

42036-0847

$38.03

42036C

SLEEVE,10.1X18X30

42036-1258

$10.19

45014

SHOCKABSORBER

45014-0656

$899.71

92046

BEARING-NEEDLE,16BM2212

92046-1192

$13.73

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

$12.45

92049

SEAL-OIL,SD0 17 24 5 NS

92049-0158

$7.46

92049A

SEAL-OIL,MHA18244

92049-1225

$7.08

92049B

SEAL-OIL,SD03 16 22 5.7

92049-1466

$11.76

92049C

SEAL-OIL,KCR MF018N1

92049-1493

$7.00

92153

BOLT,FLANGED,10X55

92153-1546

$7.61

92154

BOLT,FLANGED,10X114

92154-1553

$14.36

92154A

BOLT,FLANGED,10X120

92154-4060

$7.57

92160

DAMPER,SHOCKABSORBER

92160-1496

$16.53

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
