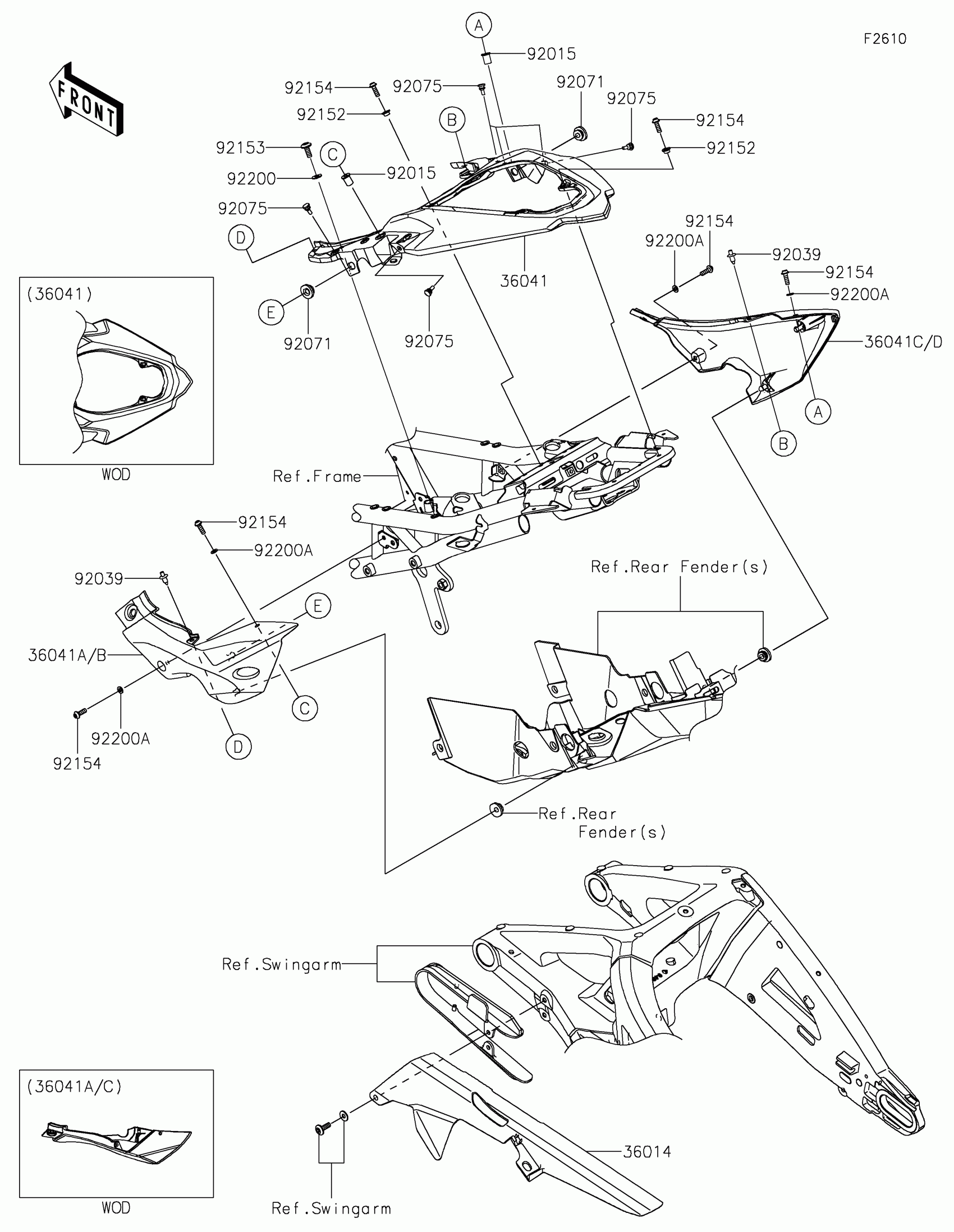

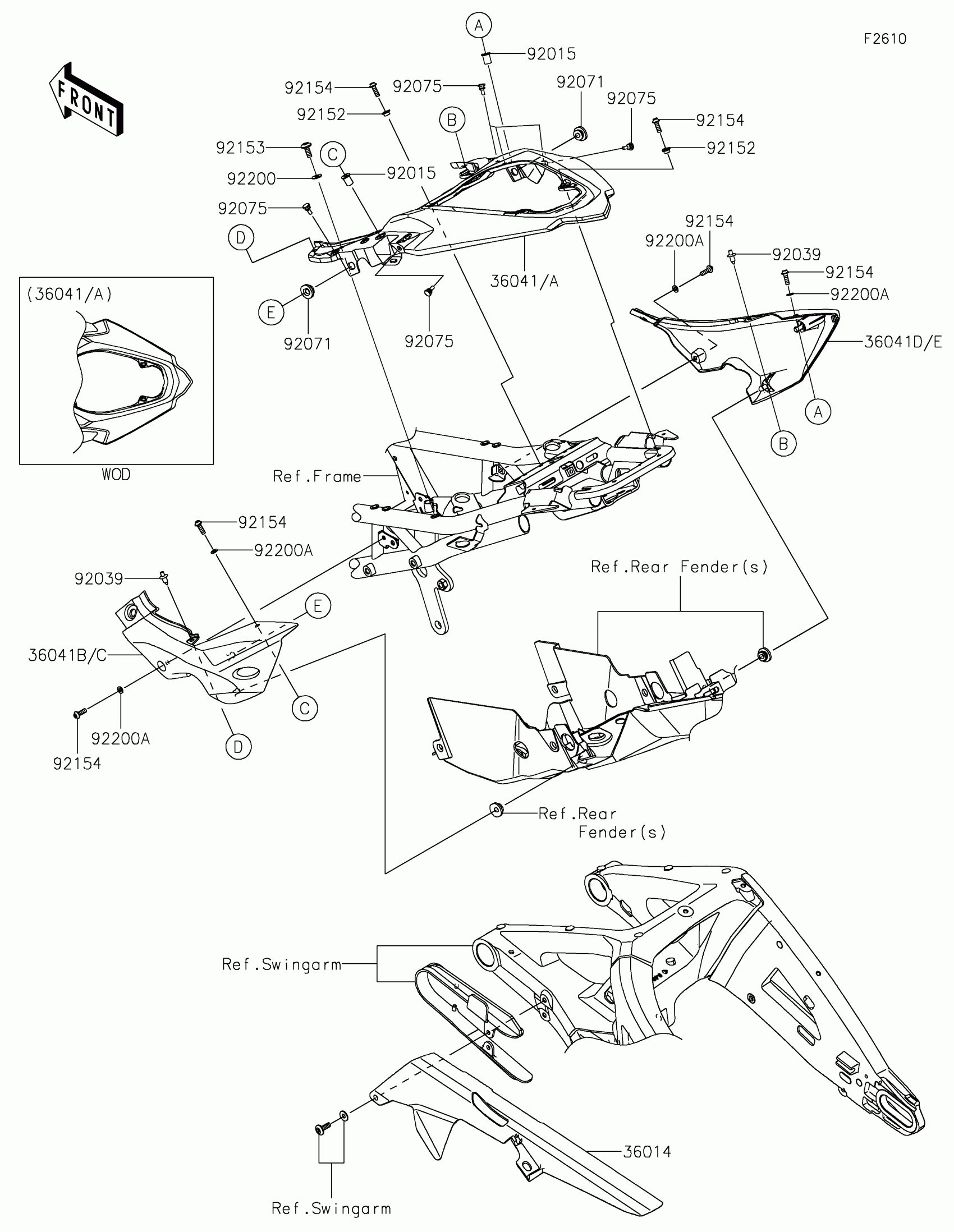

Kawasaki Z H2 Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0574

$54.45

36041

COVER-TAIL,CNT,M.G.GRAY

36041-0057-45W

$117.06

36041A

COVER-TAIL,CNT,M.C.GRAY

36041-0057-51A

$117.05

36041B

COVER-TAIL,LH,M.D.BLACK

36041-0058-17K

$119.73

36041C

COVER-TAIL,LH,M.P.SILVER

36041-0058-GU

$119.72

36041D

COVER-TAIL,RH,M.D.BLACK

36041-0059-17K

$119.73

36041E

COVER-TAIL,RH,M.P.SILVER

36041-0059-GU

$119.72

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92071

GROMMET,20X24X7.5

92071-0766

$1.41

92075

DAMPER,6X10X15

92075-1808

$1.39

92152

COLLAR,5.6X8X5

92152-2339

$3.90

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92200

WASHER,6.5X14X1

92200-1388

$2.46

92200A

WASHER,5.2X10X1.0

92200-1820

$0.63
