Description

Price

14073

DUCT,AIR FUNNEL,#2

14073-0883

$51.80

14073A

DUCT,AIR FUNNEL,#1

14073-0887

$51.80

16073

INSULATOR

16073-0825

$11.51

21176

SENSOR,PRESSURE

21176-0906

$222.28

21176A

SENSOR,PRESSURE

21176-0937

$222.28

26031

HARNESS,SUB

26031-2893

$137.38

31064

PIPE-COMP

31064-0674

$103.74

49033

NOZZLE-INJECTION

49033-0564

$132.97

49056

PIPE-INJECTION

49056-0037

$104.14

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92055A

RING-O

92055-0761

$7.40

92055B

RING-O

92055-0817

$11.07

92055C

RING-O

92055-0840

$2.06

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92154

BOLT,SOCKET,5X16

92154-1568

$2.26

92154A

BOLT,SOCKET,5X28

92154-3882

$0.88

92161

DAMPER

92161-0673

$5.54

92172

SCREW

92172-0156

$15.20

92172A

SCREW,PIPE INJECTION

92172-0828

$3.02

92191

TUBE,3.2X7.4X40

92191-1551

$2.78

92192

TUBE,3.2X7.4X115

92192-0131

$4.11

92192A

TUBE,3.2X7.4X45

92192-1445

$7.52

92192B

TUBE,3.2X7.4X75

92192-1446

$11.40

92192F

TUBE,3.2X7.4X45

92192-1617

$7.52

92192G

TUBE

92192-2479

$38.13

92192H

TUBE

92192-2480

$38.13

92192I

TUBE

92192-2481

$23.31

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

92200A

WASHER

92200-3807

$6.00

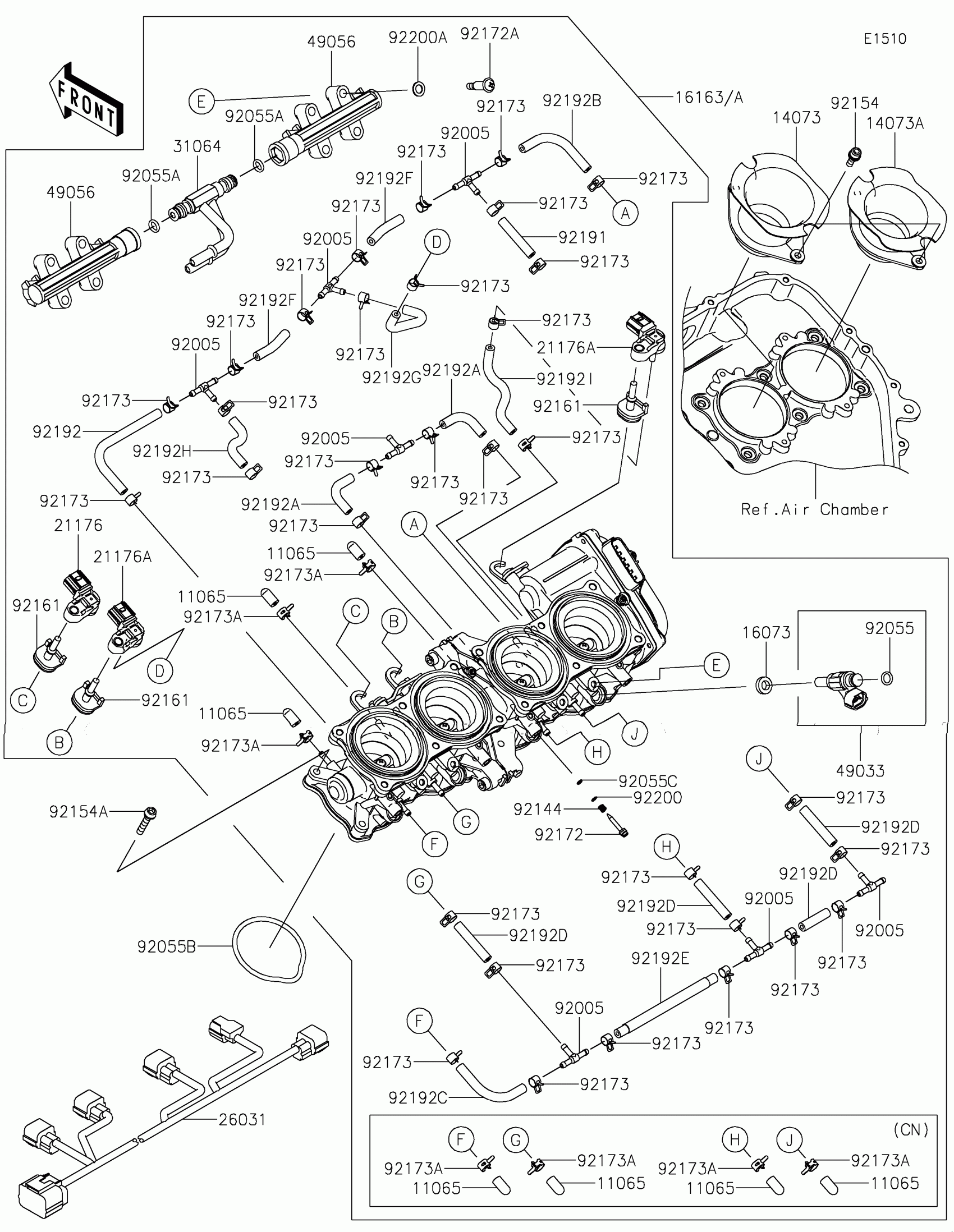

Kawasaki Z H2 SE Throttle Diagram

DUCT,AIR FUNNEL,#2

DUCT,AIR FUNNEL,#1

INSULATOR

SENSOR,PRESSURE

SENSOR,PRESSURE

HARNESS,SUB

PIPE-COMP

NOZZLE-INJECTION

PIPE-INJECTION

RING-O,INJECTION NOZZLE

RING-O

RING-O

RING-O

SPRING,THROTTLE STOP SCREW

BOLT,SOCKET,5X16

BOLT,SOCKET,5X28

DAMPER

SCREW

SCREW,PIPE INJECTION

TUBE,3.2X7.4X40

TUBE,3.2X7.4X115

TUBE,3.2X7.4X45

TUBE,3.2X7.4X75

TUBE,3.2X7.4X45

TUBE

TUBE

TUBE

WASHER,PILOT AIR SCREW

WASHER
