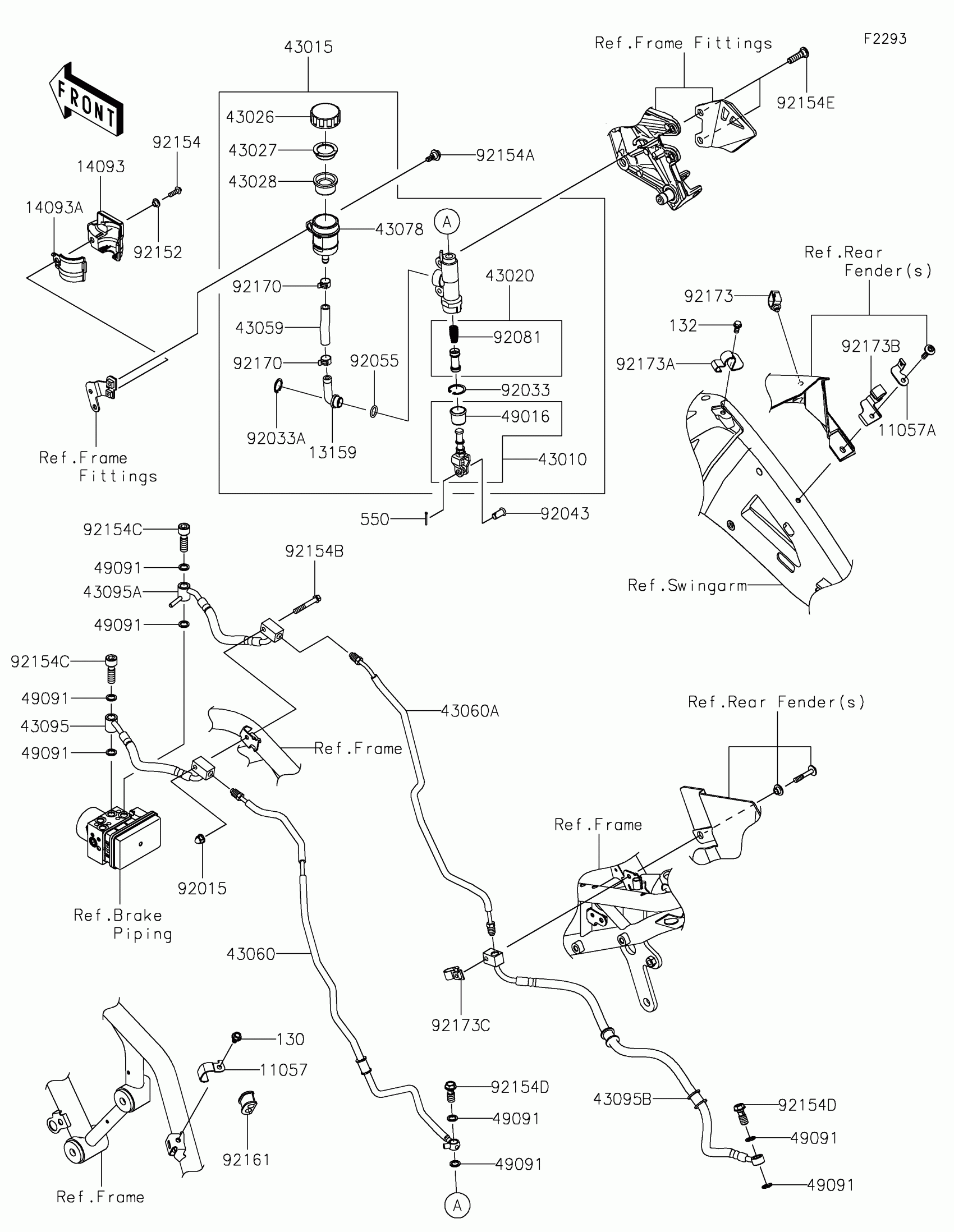

Kawasaki Z H2 SE Rear Master Cylinder Diagram
#
11057
BRACKET,BRAKE PIPE
11057-0419
$7.65
11057A
BRACKET
11057-4260
$4.60
13159
CONNECTOR
13159-1056
$14.10
14093
COVER,RR RESERVOIR,OUTER
14093-0653
$7.36
14093A
COVER,RR RESERVOIR,INNER
14093-0654
$7.36
43010
ROD-ASSY-BRAKE
43010-0020
$29.34
43015
CYLINDER-ASSY-MASTER,RR
43015-0763
$232.77
43020
PISTON-COMP-BRAKE
43020-1057
$65.22
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43059
HOSE-BRAKE
43059-1561
$15.50
43060
PIPE-BRAKE,RR MASTER CYLINDER
43060-0347
$147.66
43060A
PIPE-BRAKE,RR CALIPER
43060-0348
$64.44
43078
RESERVOIR
43078-0060
$32.45
43095
HOSE-BRAKE,ABS UNIT-RR M/C
43095-1707
$101.50
43095A
HOSE-BRAKE,ABS UNIT-RR CALIPER
43095-1708
$108.10
43095B
HOSE-BRAKE,BRAKE PIPE-RR CALI.
43095-1709
$120.54
43095C
HOSE-BRAKE,ABS UNIT-RR M/C
43095-2077
$98.66
49016
COVER-SEAL,BRAKE PISTON
49016-1103
$13.37
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92015
NUT,LOCK 6MM
92015-1262
$5.52
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92043
PIN,8X17
92043-0104
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92152
COLLAR,5.3X7.3X5.3
92152-2190
$3.42
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,FLANGED,6X16
92154-0385
$3.99
92154B
BOLT,FLANGED,6X42
92154-0511
$1.94
92154C
BOLT,BANJO,10X32.3
92154-1122
$30.12
92154D
BOLT,BANJO,10X23
92154-1712
$3.94
92154E
BOLT,SOCKET,8X30
92154-1723
$3.94
92161
DAMPER,BRAKE PIPE
92161-1894
$15.89
92170
CLAMP,HOSE
92170-1091
$5.00
92173
CLAMP,HOLDER CLIP
92173-0868
$3.02
92173A
CLAMP
92173-2185
$10.92
92173B
CLAMP
92173-2186
$10.92
92173C
CLAMP
92173-2313
$8.26
130
BOLT-FLANGED,6X10
130BB0610
$2.49
132
BOLT-FLANGED-SMALL,6X12
132BB0612
$2.06
550
PIN-COTTER,2.0X15
550AA2015
$1.12
