Description

Price

130

BOLT-FLANGED,6X16

130CC0616

$1.94

14041

COVER-COMP,HEAT

14041-0620

$89.55

14093

COVER

14093-0984

$13.48

35063

STAY

35063-1507

$3.58

39060

RADIATOR

39060-0740

$1,119.64

39062

HOSE-COOLING

39062-0869

$15.87

39062A

HOSE-COOLING

39062-0878

$12.74

39156

PAD,20X285X15

39156-1840

$3.96

39156A

PAD,141X15X10

39156-2250

$2.68

39156B

PAD

39156-2251

$4.98

39156C

PAD,80X15X10

39156-2327

$1.52

39156D

PAD

39156-2328

$2.68

39156E

PAD,27X27X3

39156-2525

$0.95

49085

CAP-ASSY-PRESSURE

49085-0006

$50.52

59502

FAN-ASSY

59502-0629

$598.57

92005

FITTING

92005-0721

$9.09

92037

CLAMP,TUBE

92037-1461

$3.88

92075

DAMPER,RUBBER

92075-1123

$5.00

92152

COLLAR,6.5X10X13.1

92152-0332

$5.65

92152A

COLLAR

92152-0439

$3.90

92152B

COLLAR

92152-2111

$5.98

92153

BOLT,FLANGED,8X30

92153-1086

$2.90

92154

BOLT,FLANGED,6X16

92154-0887

$1.63

92154A

BOLT,SOCKET,6X22

92154-1456

$1.48

92154B

BOLT

92154-1648

$1.19

92154C

BOLT,SOCKET,6X10

92154-4209

$2.10

92161

DAMPER

92161-0304

$2.97

92170

CLAMP

92170-1493

$5.00

92170A

CLAMP

92170-1872

$3.98

92210

NUT

92210-1323

$4.18

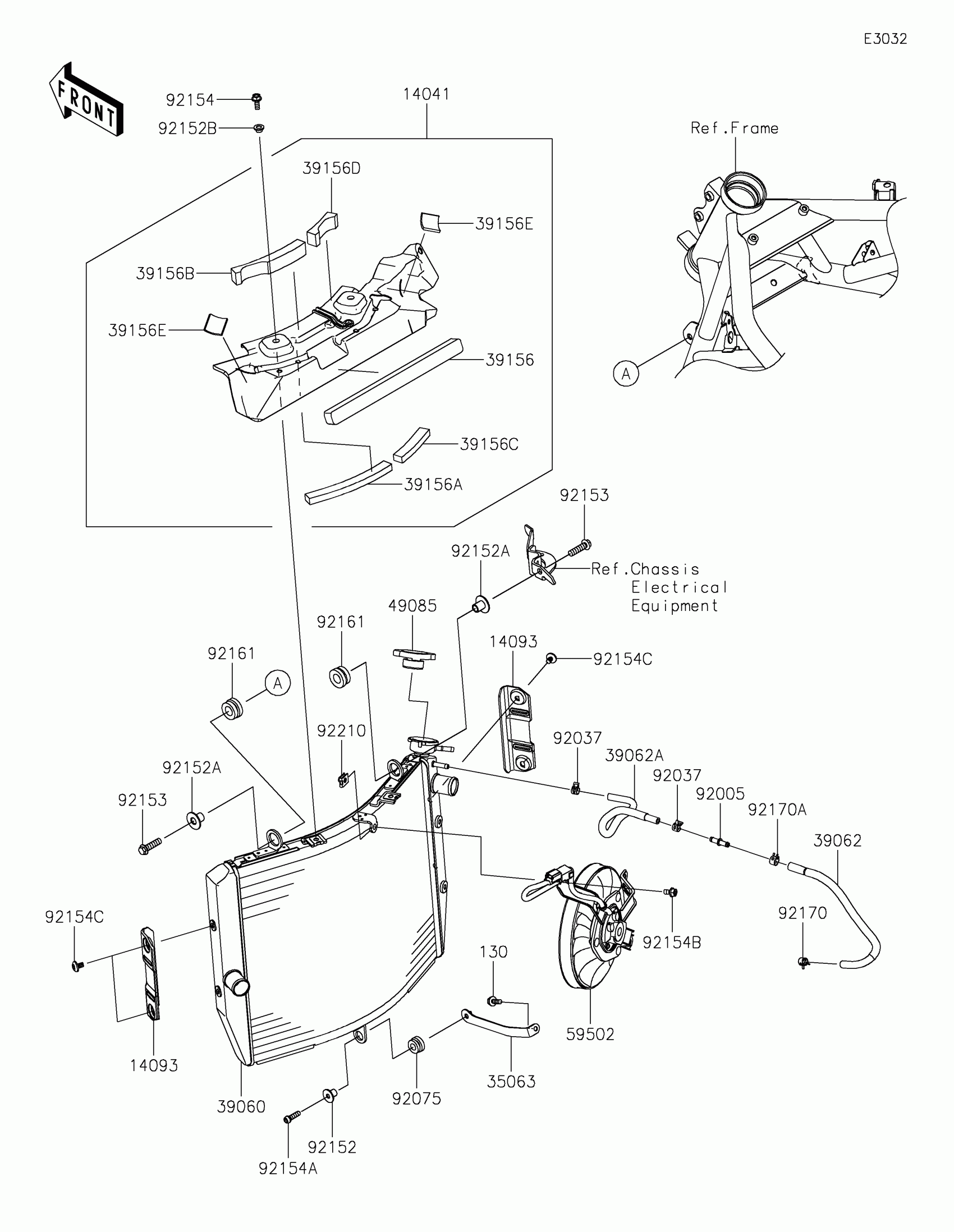

Kawasaki Z H2 SE Radiator Diagram

BOLT-FLANGED,6X16

COVER-COMP,HEAT

COVER

STAY

RADIATOR

HOSE-COOLING

HOSE-COOLING

PAD,20X285X15

PAD,141X15X10

PAD

PAD,80X15X10

PAD

PAD,27X27X3

CAP-ASSY-PRESSURE

FAN-ASSY

FITTING

CLAMP,TUBE

DAMPER,RUBBER

COLLAR,6.5X10X13.1

COLLAR

COLLAR

BOLT,FLANGED,8X30

BOLT,FLANGED,6X16

BOLT,SOCKET,6X22

BOLT

BOLT,SOCKET,6X10

DAMPER

CLAMP

CLAMP

NUT
