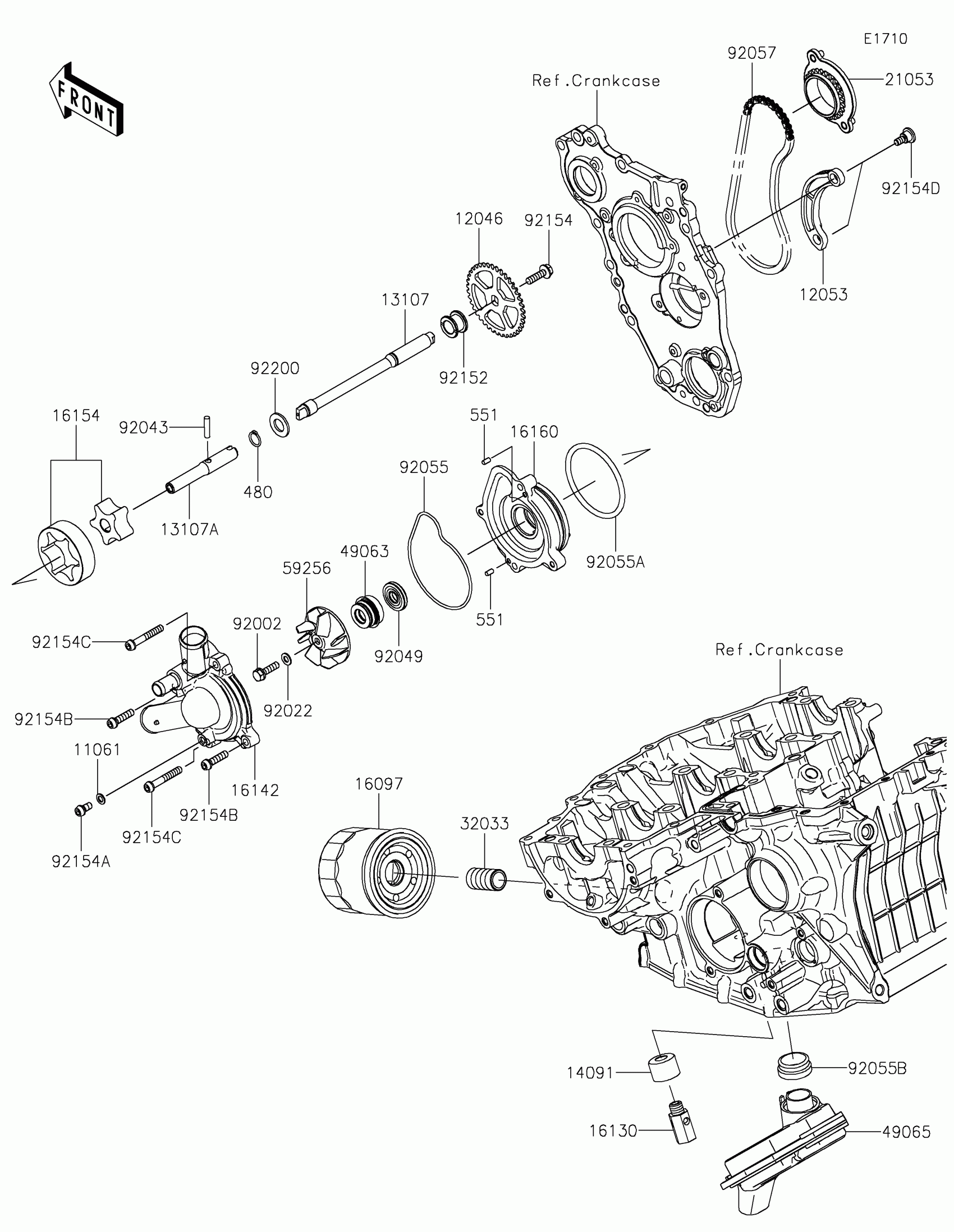

Kawasaki Z H2 SE Oil Pump/Oil Filter Diagram
#
Description
Price
11061
GASKET
11061-0107
$2.58
12046
SPROCKET,PUMP DRIVEN,39T
12046-0602
$67.47
12053
GUIDE-CHAIN
12053-0302
$18.26
13107
SHAFT,RH
13107-0809
$96.85
13107A
SHAFT,LH
13107-0810
$66.25
14091
COVER,VALVE
14091-0497
$5.60
16097
FILTER-ASSY-OIL
16097-0009
$21.76
16130
VALVE-ASSY-RELIEF
16130-0005
$45.75
16142
COVER-PUMP,WATER
16142-0733
$73.50
16154
ROTOR-PUMP,OIL
16154-0723
$79.27
16160
BODY,WATER PUMP
16160-0799
$209.28
21053
SPROCKET-ASSY,PUMP DRIVE,27T
21053-0009
$104.12
32033
PIPE,OIL FILTER
32033-1535
$12.96
49063
SEAL-MECHANICAL
49063-1055
$20.06
49065
FILTER-OIL
49065-0037
$48.26
59256
IMPELLER
59256-0011
$30.64
92002
BOLT,6X22
92002-1154
$4.69
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92043
PIN,5X21.8
92043-1518
$2.78
92049
SEAL-OIL
92049-0778
$28.98
92055
RING-O,WATER PUMP
92055-0208
$9.17
92055A
RING-O,68.2X2.4
92055-1338
$5.52
92055B
RING-O,OIL FILTER
92055-1503
$9.51
92057
CHAIN,92RH2005-76M
92057-0635
$28.88
92152
COLLAR
92152-1935
$45.64
92154
BOLT,FLANGED,6X22
92154-0387
$2.32
92154A
BOLT,SOCKET,6X12
92154-1453
$1.19
92154B
BOLT,SOCKET,6X25
92154-1457
$1.48
92154C
BOLT,SOCKET,6X40
92154-1459
$1.97
92154D
BOLT
92154-1651
$3.54
92200
WASHER,13X24X2
92200-0451
$2.97
480
CIRCLIP-TYPE-C,13MM
480J1300
$3.92
551
PIN-DOWEL,4X8
551A0408
$0.78
