2021 Kawasaki Z H2 SE Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2021 Kawasaki Z H2 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

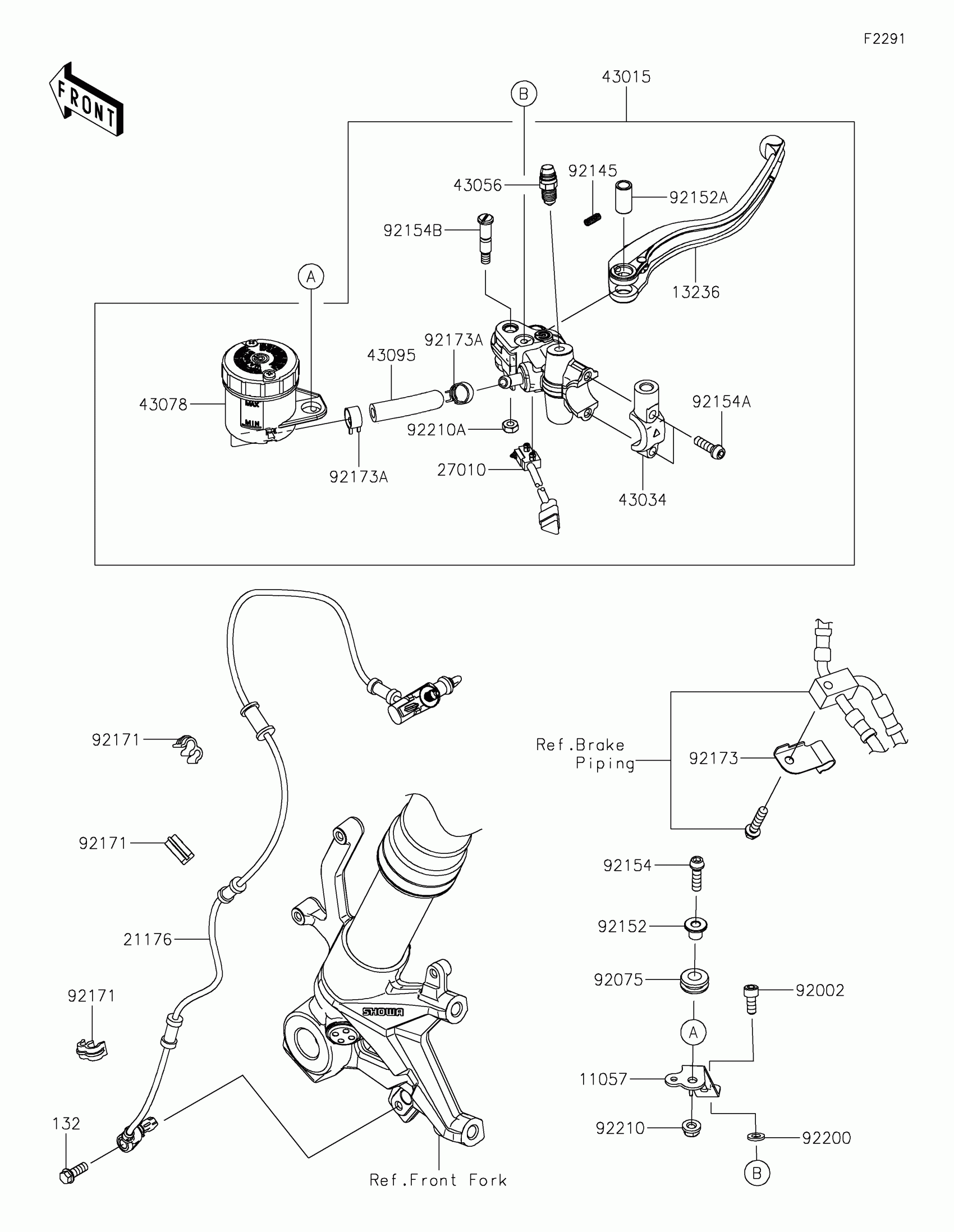

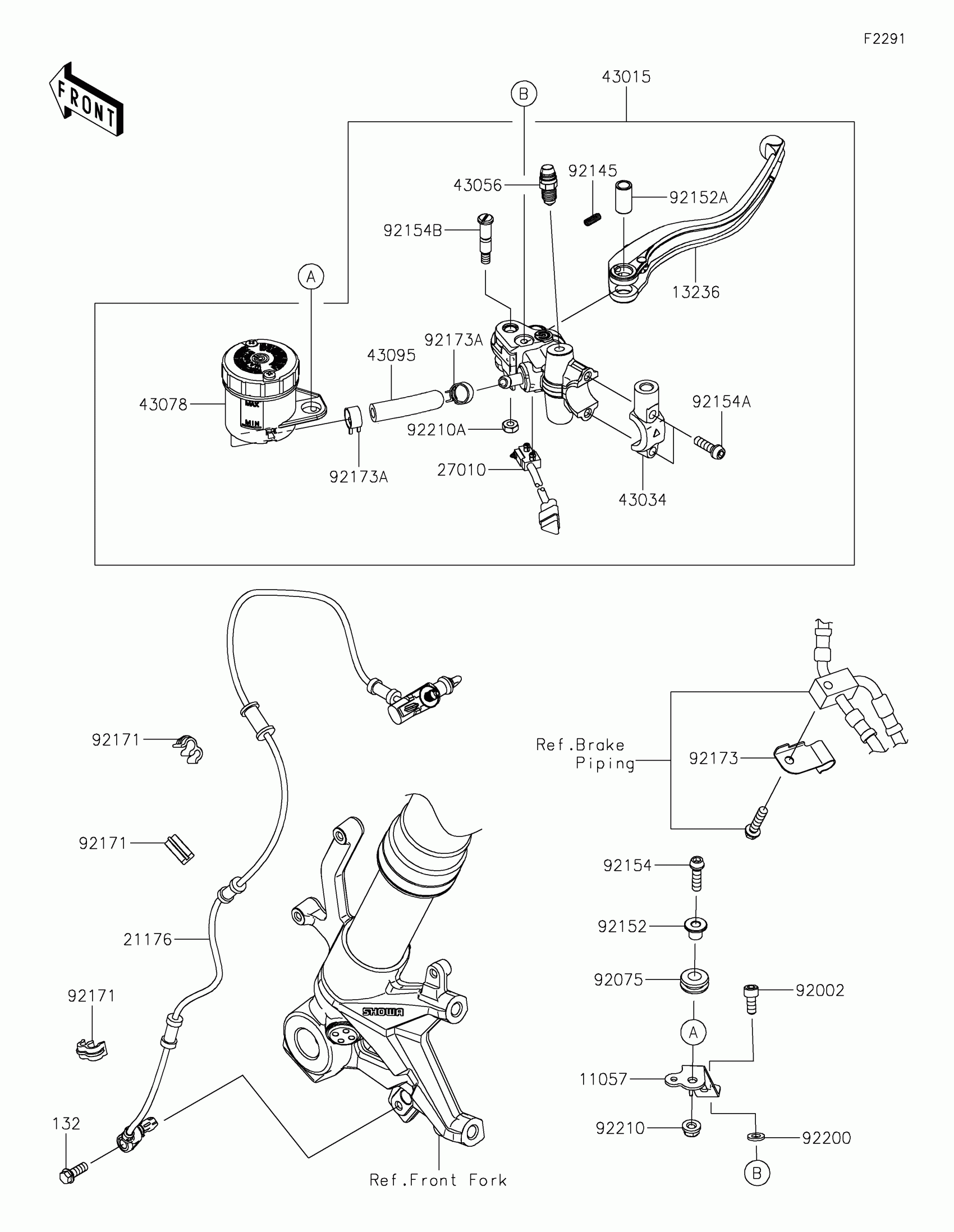

2021 Kawasaki Z H2 SE Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RESERVOIR TANK

11057-7029

1
Out of stock

132

1

$2.05

In stock

13236

LEVER-COMP,BRAKE

13236-0770

1
Out of stock

21176

SENSOR,FR,SPEED

21176-1130

1
Out of stock

27010

SWITCH,BRAKE

27010-0961

1
Out of stock

43015

CYLINDER-ASSY-MASTER

43015-0789

1
Out of stock

43034

HOLDER-BRAKE

43034-0167

1
Out of stock

43056

BREATHER-BRAKE

43056-0019

1
Out of stock

43078

RESERVOIR

43078-0577

1
Out of stock

43095

HOSE-BRAKE

43095-1779

1
Out of stock

92002

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92075

DAMPER

92075-1028

1
Out of stock

92145

SPRING

92145-1683

1
Out of stock

92152

COLLAR,6X16X10.6

92152-2110

1
Out of stock

92152A

COLLAR,LEVER

92152-2151

1
Out of stock

92154

BOLT,SOCKET,6X22

92154-1456

1
Out of stock

92154A

BOLT,SOCKET,6X20

92154-1644

1
Out of stock

92154B

BOLT,LEVER

92154-1809

1
Out of stock

92171

CLAMP

92171-0921

1
Out of stock

92173

CLAMP

92173-0086

1
Out of stock

92173A

CLAMP,HOSE

92173-1498

1
Out of stock

92200

WASHER,6.2X12X1.6

92200-0806

1
Out of stock

92210

NUT,6MM

92210-0991

1
Out of stock

92210A

NUT,U

92210-1424

1
Out of stock
