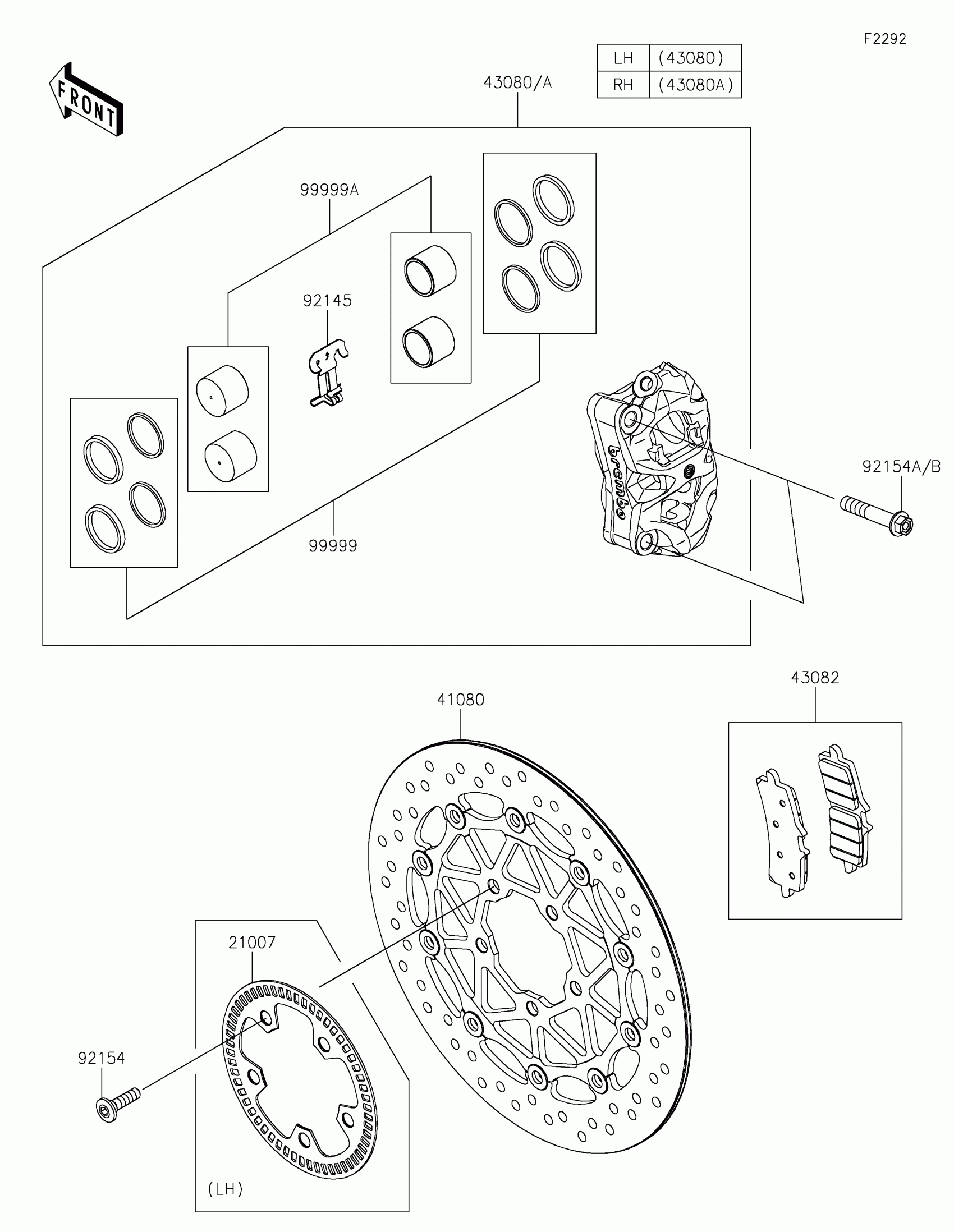

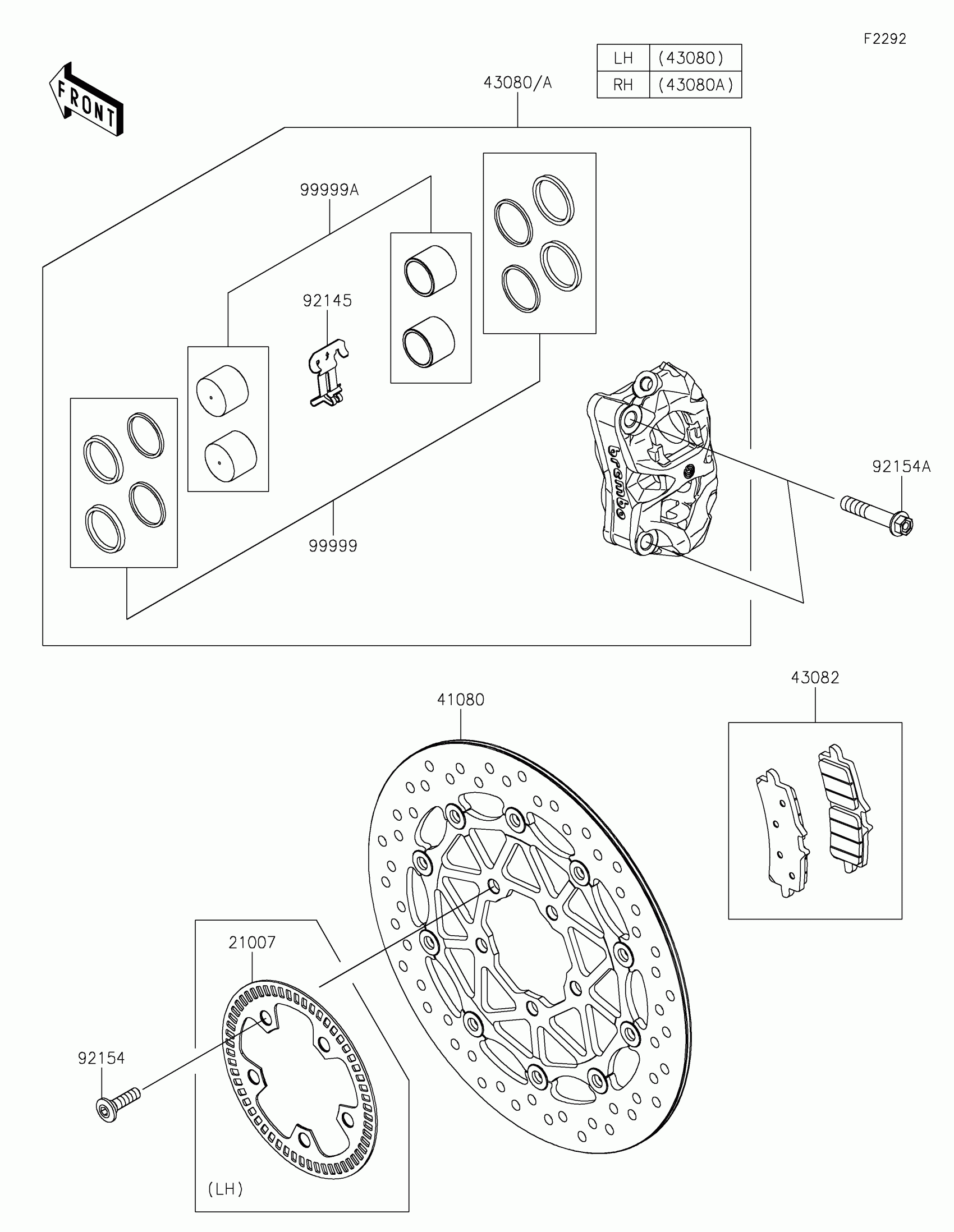

Kawasaki Z H2 SE Front Brake Diagram

#

Description
Price

21007

ROTOR,FR WHEEL

21007-0701

$30.77

41080

DISC,FR,BLACK+BLK

41080-0717-18U

$459.57

43080

CALIPER-SUB-ASSY,FR,LH

43080-0227

$743.53

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0228

$743.53

43082

PAD-ASSY-BRAKE

43082-0190

$130.29

92145

SPRING

92145-1892

$11.34

92154

BOLT,SOCKET,8X30

92154-1865

$3.57

92154A

BOLT,FLANGED,10X55

92154-3894

$5.90

99999

KIT.,DUST SEAL

99999-0557

$47.08

99999A

KIT.,CALIPER PISTON

99999-0698

$75.50
