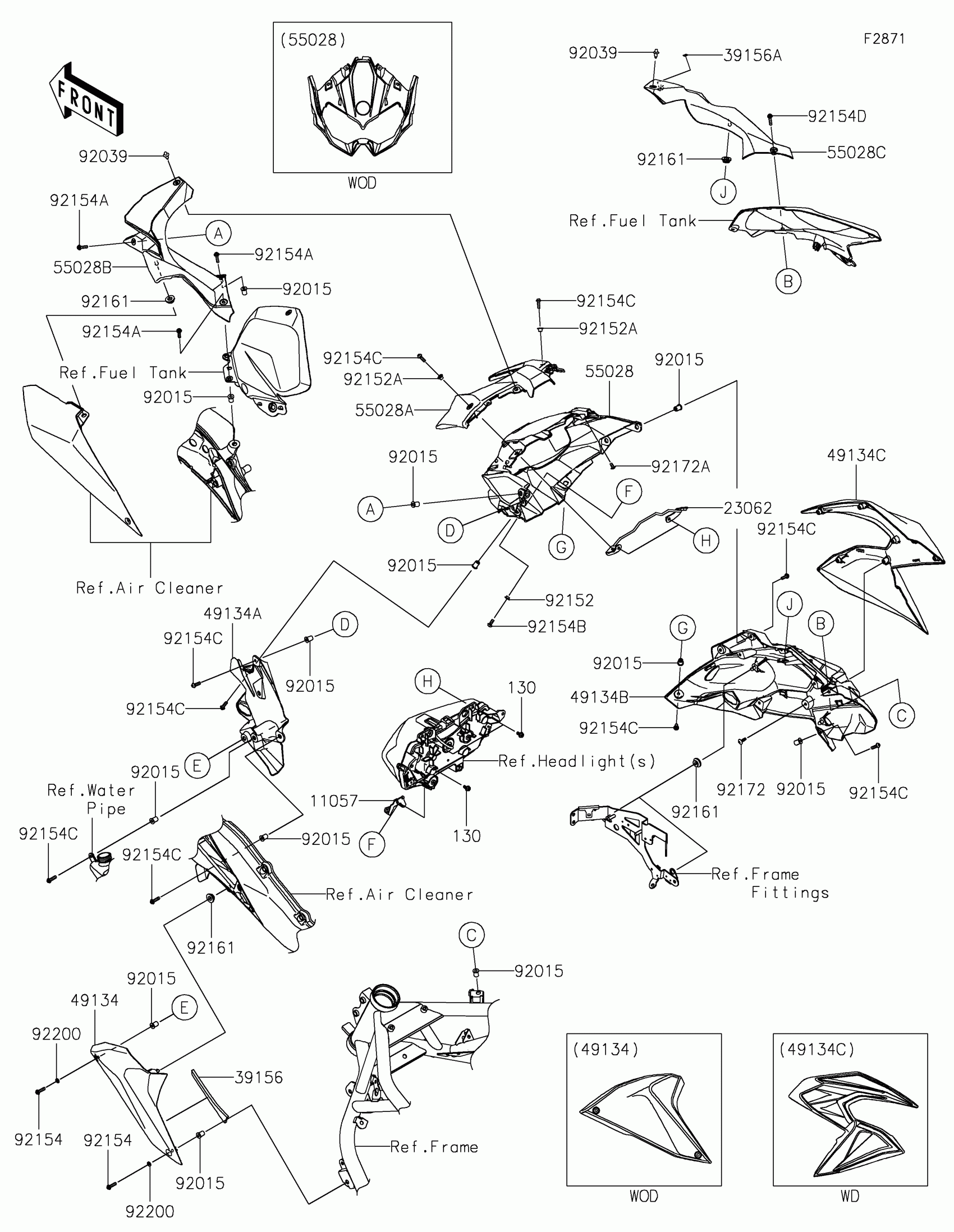

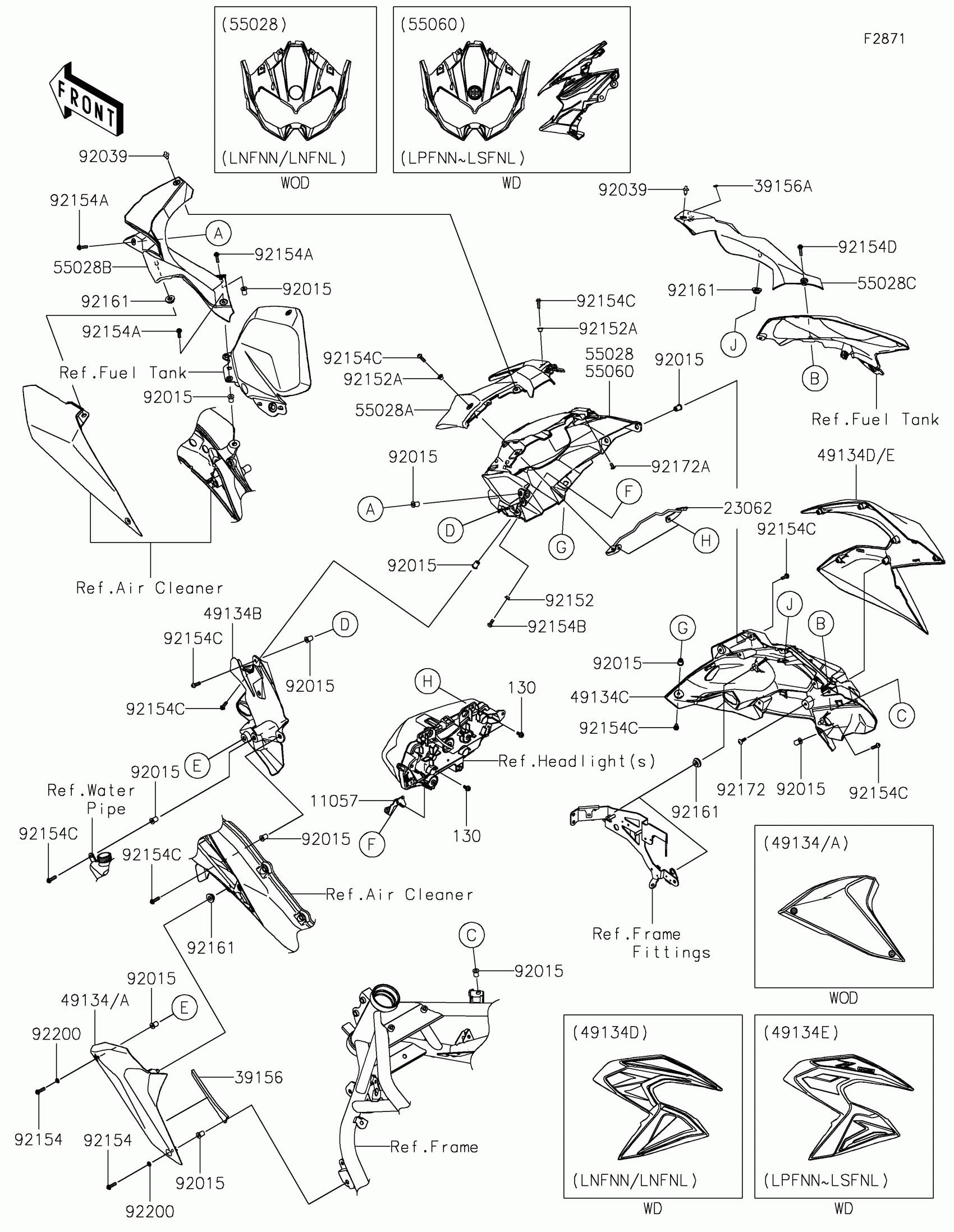

Kawasaki Z H2 SE Cowling Diagram
#
Description
Price
11057
BRACKET,UPP COWL.,LWR
11057-2914
$7.51
23062
BRACKET-COMP,UPP COWL.,UPP
23062-1265
$29.91
39156
PAD
39156-2596
$4.19
39156A
PAD,14.5X6.8X1
39156-2668
$2.53
49134A
SHROUD,OUTER,LH,EBONY
49134-0012-H8
$102.48
49134B
SHROUD,LH
49134-0013
$50.94
49134C
SHROUD,RH
49134-0015
$85.67
49134E
SHROUD,OUTER,RH,M.M.G.GRAY+EBY
49134-5408-69H
$347.91
55028A
COWLING,UPP COVER
55028-0745
$42.52
55028B
COWLING,INNER,LH
55028-0746
$39.22
55028C
COWLING,INNER,RH
55028-0799
$32.10
55060
COWLING,UPP,M.M.G.GRAY
55060-5349-68P
$375.60
92015
NUT,WELL,5MM
92015-1757
$7.29
92039
RIVET
92039-0068
$2.97
92152
COLLAR
92152-0451
$3.90
92152A
COLLAR
92152-2660
$12.14
92154
BOLT,SOCKET,5X20
92154-0210
$2.12
92154A
BOLT,SOCKET,5X20
92154-0919
Unavailable
92154B
BOLT,SOCKET,5X12
92154-1421
$0.95
92154C
BOLT,SOCKET,5X16
92154-1701
$1.19
92154D
BOLT,SOCKET,5X23
92154-3820
$2.95
92161
DAMPER
92161-1531
$3.02
92172
SCREW,TAPPING,5X16
92172-0238
$1.00
92172A
SCREW,TAPPING,5X10
92172-0262
$1.34
92200
WASHER,5.2X10X1.0
92200-1820
$0.63
130
BOLT-FLANGED,5X10
130BA0510
$1.71
