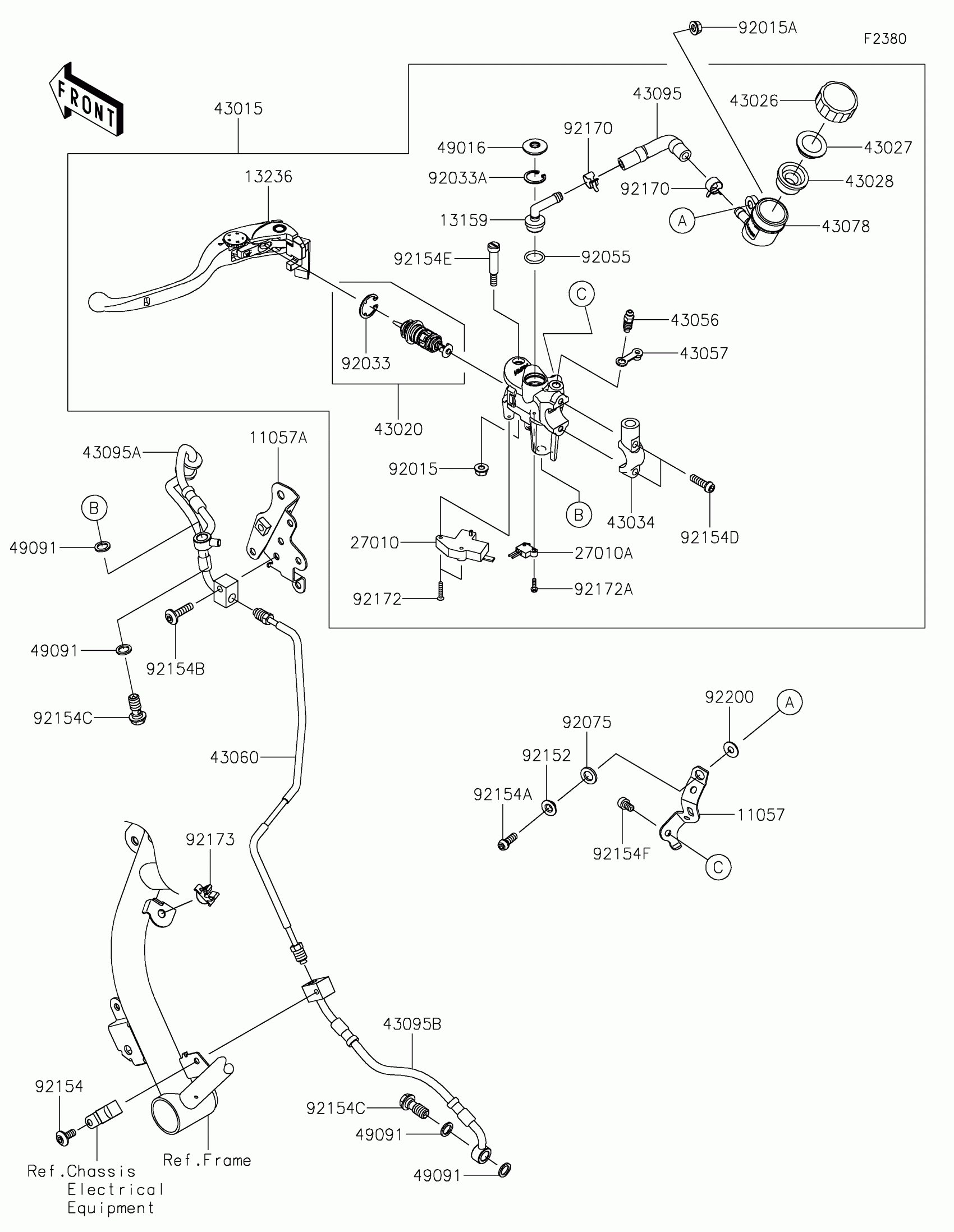

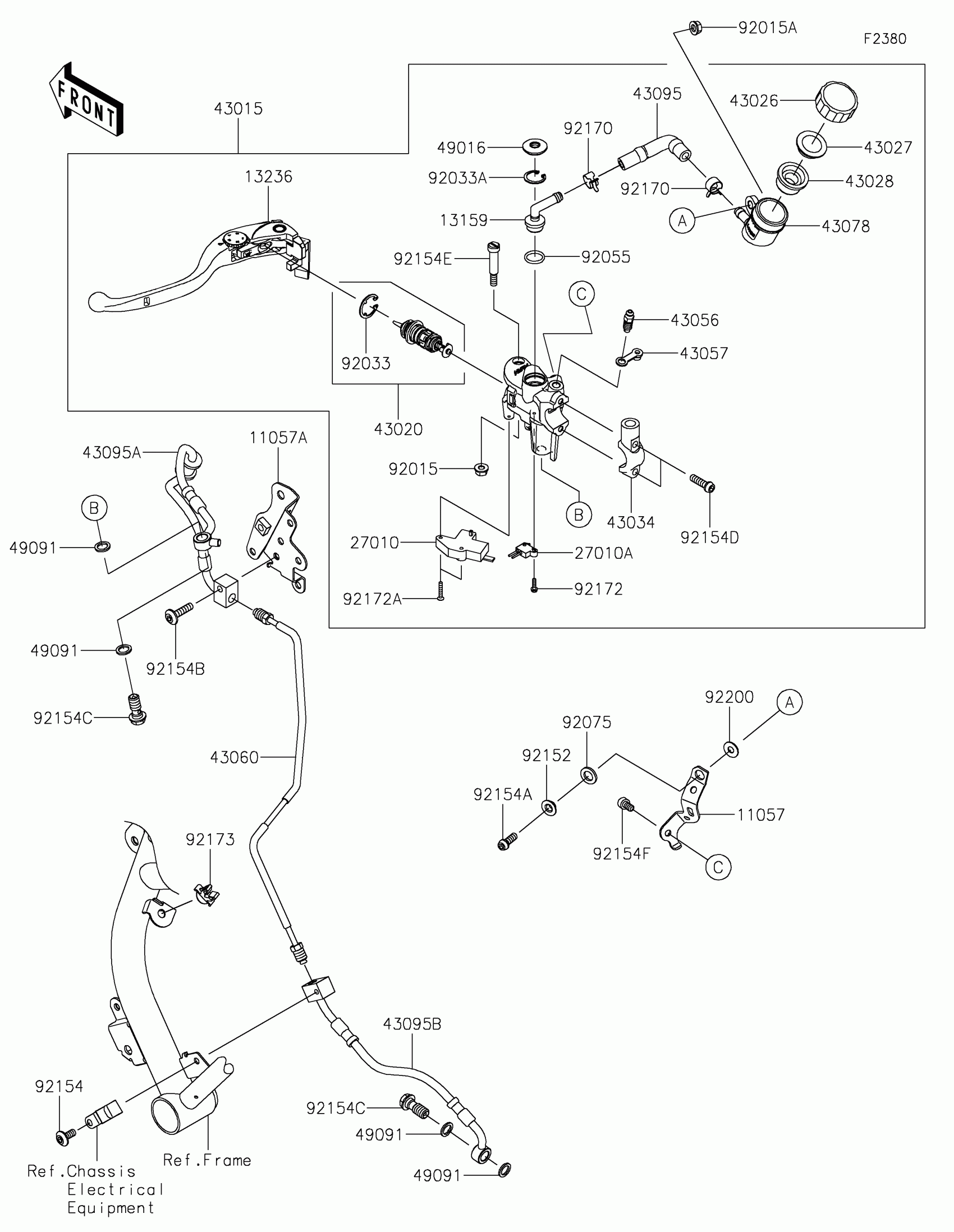

Kawasaki Z H2 SE Clutch Master Cylinder Diagram

#

Description
Price

11057

BRACKET,RESERVOIR TANK

11057-2909

$7.29

11057A

BRACKET,HEAD PIPE

11057-7240

$15.30

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,CLUTCH

13236-0803

$81.42

27010

SWITCH,CLUTCH

27010-0854

$32.97

27010A

SWITCH,CRUISE CONTROL CANCEL

27010-0967

$30.59

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0785

$453.75

43020

PISTON-COMP-BRAKE

43020-0028

$65.94

43026

CAP-BRAKE

43026-1070

$33.90

43027

PLATE-DIAPHRAGM

43027-1054

$5.67

43028

DIAPHRAGM

43028-1073

$19.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0057

$23.99

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43060

PIPE-BRAKE

43060-0346

$48.01

43078

RESERVOIR

43078-0580

$29.89

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0040

$11.98

43095A

HOSE-BRAKE,M/C-BRAKE PIPE

43095-1701

$119.98

43095B

HOSE-BRAKE,BRAKE PIPE-ENG.

43095-1702

$119.98

49016

COVER-SEAL

49016-1147

$6.29

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,14.8X2.4

92055-0741

$3.71

92075

DAMPER

92075-1564

$5.48

92152

COLLAR,6.5X10X5.3

92152-1863

$6.52

92154

BOLT,SOCKET,6X14

92154-0907

$1.97

92154A

BOLT,SOCKET,6X18

92154-1455

$1.48

92154B

BOLT,SOCKET,6X25

92154-1532

$2.34

92154C

BOLT,BANJO,10X23

92154-1712

$3.94

92154D

BOLT,SOCKET,6X22

92154-1724

$2.49

92154E

BOLT,LEVER

92154-1912

$7.83

92154F

BOLT,SOCKET,6X8

92154-2914

$2.17

92170

CLAMP,HOSE

92170-1091

$5.00

92172

SCREW

92172-1242

$1.17

92172A

SCREW

92172-1243

$0.64

92173

CLAMP

92173-2180

$3.26

92200

WASHER,6.5X16X1.0

92200-3712

$3.73
