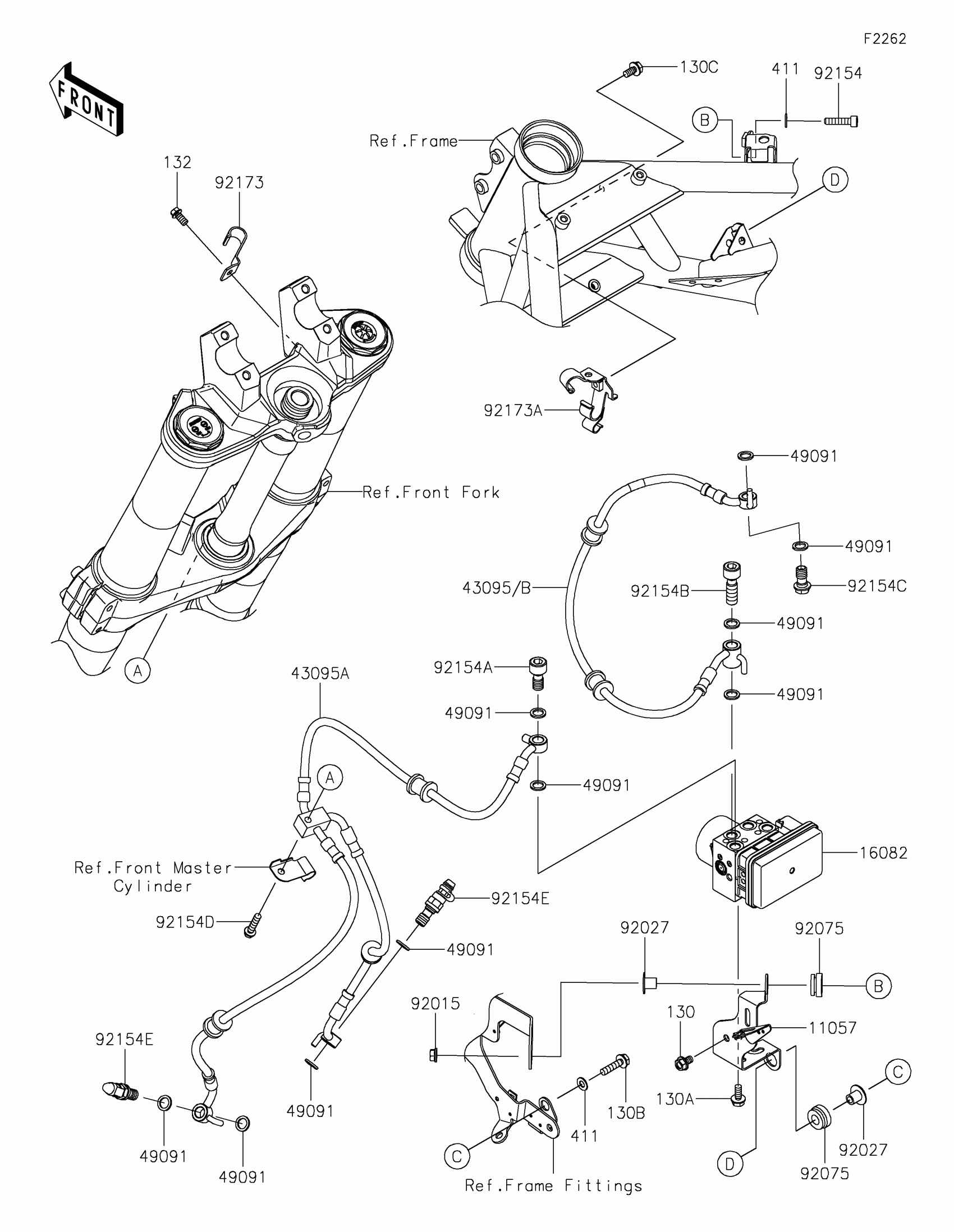

Kawasaki Z H2 SE Brake Piping Diagram
#
Description
Price
11057
BRACKET,ABS PUMP UNIT
11057-2929
$15.30
16082
PUMP-ASSY-OIL,ABS,BOSCH,9.1MP
16082-0854
$1,563.45
43095
HOSE-BRAKE,ABS UNIT-FR M/C
43095-1710
$116.15
43095A
HOSE-BRAKE,ABS UNIT-FR CALIPER
43095-1711
$216.99
43095B
HOSE-BRAKE,FR M/C-ABS UNIT
43095-2075
$110.54
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92027
COLLAR,L=12
92027-1062
$7.34
92075
DAMPER
92075-277
$2.84
92154
BOLT,SOCKET,6X25
92154-0477
$1.94
92154A
BOLT,BANJO,10X20.8
92154-1121
$26.28
92154B
BOLT,BANJO,10X32.3
92154-1122
$30.12
92154C
BOLT,BANJO,10X19
92154-1554
$23.53
92154D
BOLT,FLANGED,6X25
92154-1849
$2.15
92154E
BOLT,BANJO,10X19
92154-4032
$45.34
92173
CLAMP
92173-2182
$5.57
92173A
CLAMP
92173-2183
$21.84
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
130B
BOLT-FLANGED,6X25
130BA0625
$1.20
130C
BOLT-FLANGED,6X12
130BB0612
$2.34
132
BOLT-FLANGED-SMALL,6X12
132BB0612
$2.06
411
WASHER-PLAIN,6MM
411AA0600
$2.92
