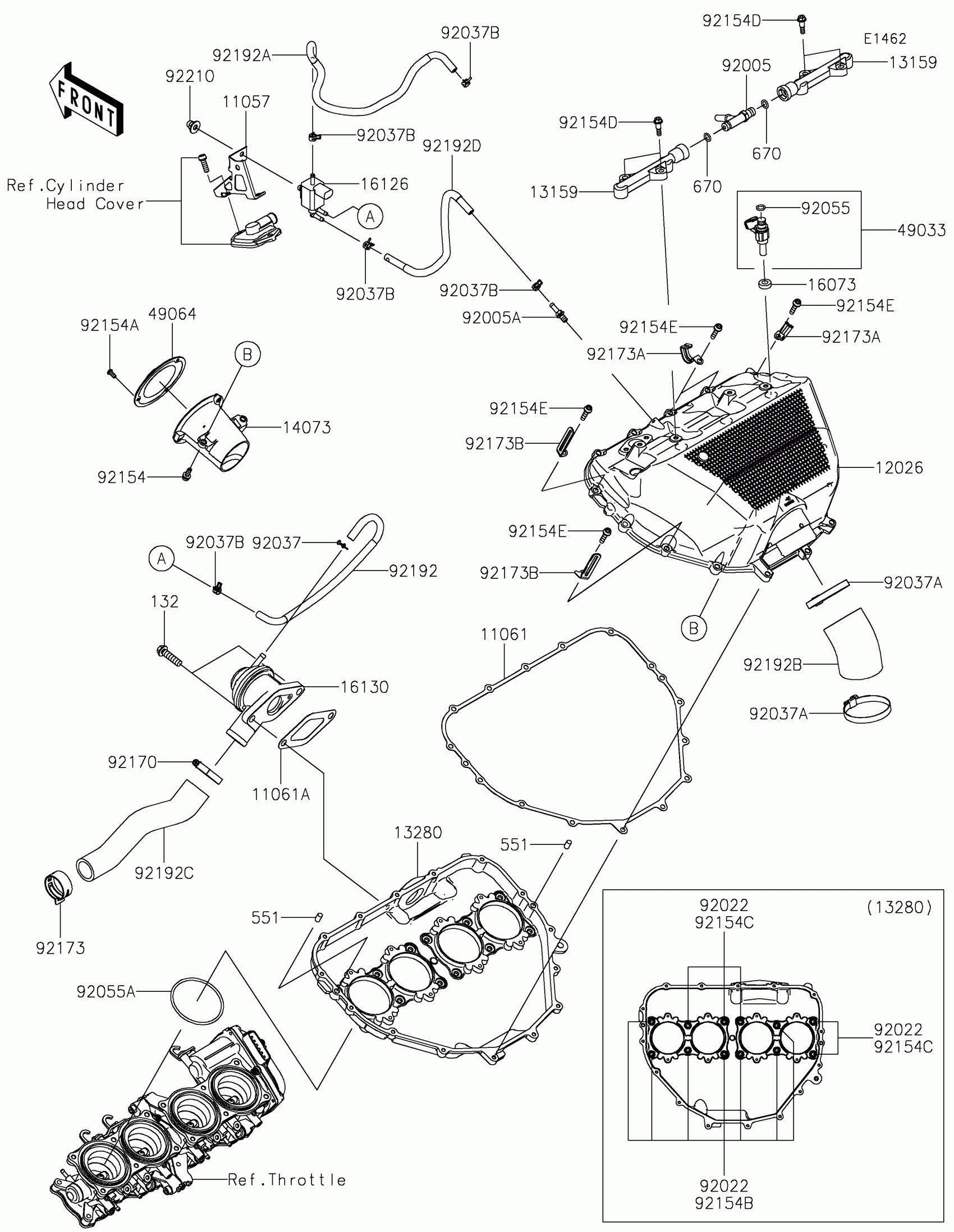

Kawasaki Z H2 SE Air Chamber Diagram
#
11057
BRACKET,SOLENOID VALVE
11057-3820
$6.28
11061
GASKET,CHAMBER
11061-0949
$36.37
11061A
GASKET,BLOWOFF VALVE
11061-0950
$3.96
12026
CHAMBER,INTAKE
12026-0023
$638.69
13159
CONNECTOR
13159-0016
$24.31
13280
HOLDER,CHAMBER
13280-0905
$290.56
14073
DUCT,DIFFUSER
14073-0884
$88.77
16073
INSULATOR
16073-0129
$6.00
16126
VALVE,SOLENOID
16126-0751
$80.80
16130
VALVE-ASSY-RELIEF
16130-0010
$468.82
49033
NOZZLE-INJECTION
49033-0565
$132.64
49064
FILTER-AIR
49064-0007
$24.91
92005
FITTING
92005-0125
$11.34
92005A
FITTING
92005-0826
$10.21
92022
WASHER,5.5X10.5X0.8
92022-037
$3.92
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,RESERVE TANK
92037-1586
$12.54
92037B
CLAMP,7.8MM
92037-2116
$1.39
92055
RING-O,INJECTION NOZZLE
92055-0124
$2.97
92055A
RING-O,65.8X3
92055-0815
$11.71
92154
BOLT,SOCKET,5X16
92154-1568
$2.26
92154A
BOLT,TORX,4X10
92154-1790
$2.49
92154B
BOLT,FLANGED,5X14
92154-3884
$2.49
92154C
BOLT,FLANGED,5X95
92154-3886
$7.78
92154D
BOLT,SHOULDER,5X20
92154-3971
$4.20
92154E
BOLT,SOCKET,5X22
92154-4055
$7.78
92170
CLAMP
92170-1036
$8.72
92173
CLAMP,35.5MM
92173-1432
$3.56
92173A
CLAMP
92173-2305
$4.60
92173B
CLAMP
92173-2307
$5.31
92192
TUBE,SOLENOID-BLOWOFF VALVE
92192-1841
$17.64
92192A
TUBE,SOLENOID-THROTTLE BODY
92192-1842
$20.57
92192B
TUBE,DIFFUSER
92192-1865
$111.62
92192C
TUBE,BLOWOFF VALVE-AIR FILTER
92192-2290
$45.11
92192D
TUBE,SOLENOID-CHAMBER
92192-2497
$16.02
92210
NUT,CAP,6MM
92210-0170
$2.90
132
BOLT-FLANGED-SMALL,8X30
132BC0830
$3.90
551
PIN-DOWEL,6X12
551A0612
$0.94
670
O RING,8MM
670E1508
$1.82
