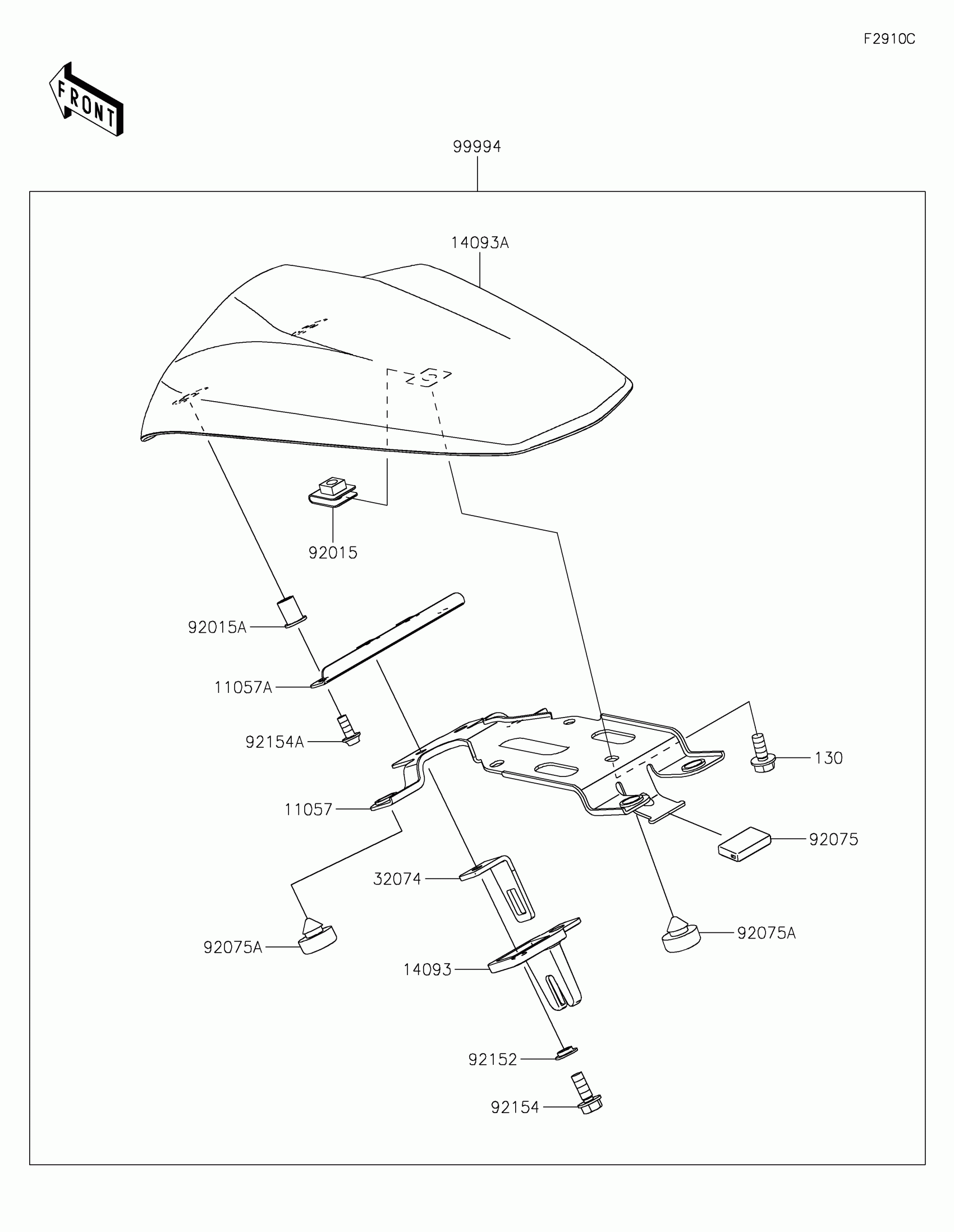

Kawasaki Z H2 SE Accessory(Pillion Seat Cover) Diagram

Description

Price

11057

BRACKET,MOUNT

11057-0270

$79.27

11057A

BRACKET

11057-2941

$9.47

130

BOLT-FLANGED,6X14

130BA0614

$1.20

14093

COVER

14093-0515

$6.33

14093A

COVER,PILLION SEAT,G.B.GREEN

14093-0974-40R

$322.19

32074

BRACKET-LOCK

32074-0017

$5.55

92015

NUT,CLAMP,6MM

92015-1531

$5.52

92015A

NUT,WELL,5MM

92015-1757

$7.29

92075

DAMPER

92075-1446

$4.69

92075A

DAMPER,10X20X8

92075-1927

$4.39

92152

COLLAR

92152-0250

$2.97

92154

BOLT,FLANGED,6X16

92154-0899

$2.32

92154A

BOLT,SOCKET,5X12

92154-0917

$4.72

99994

PILLION SEAT COVER,G.B.GREEN

99994-1387-40R

$344.31
