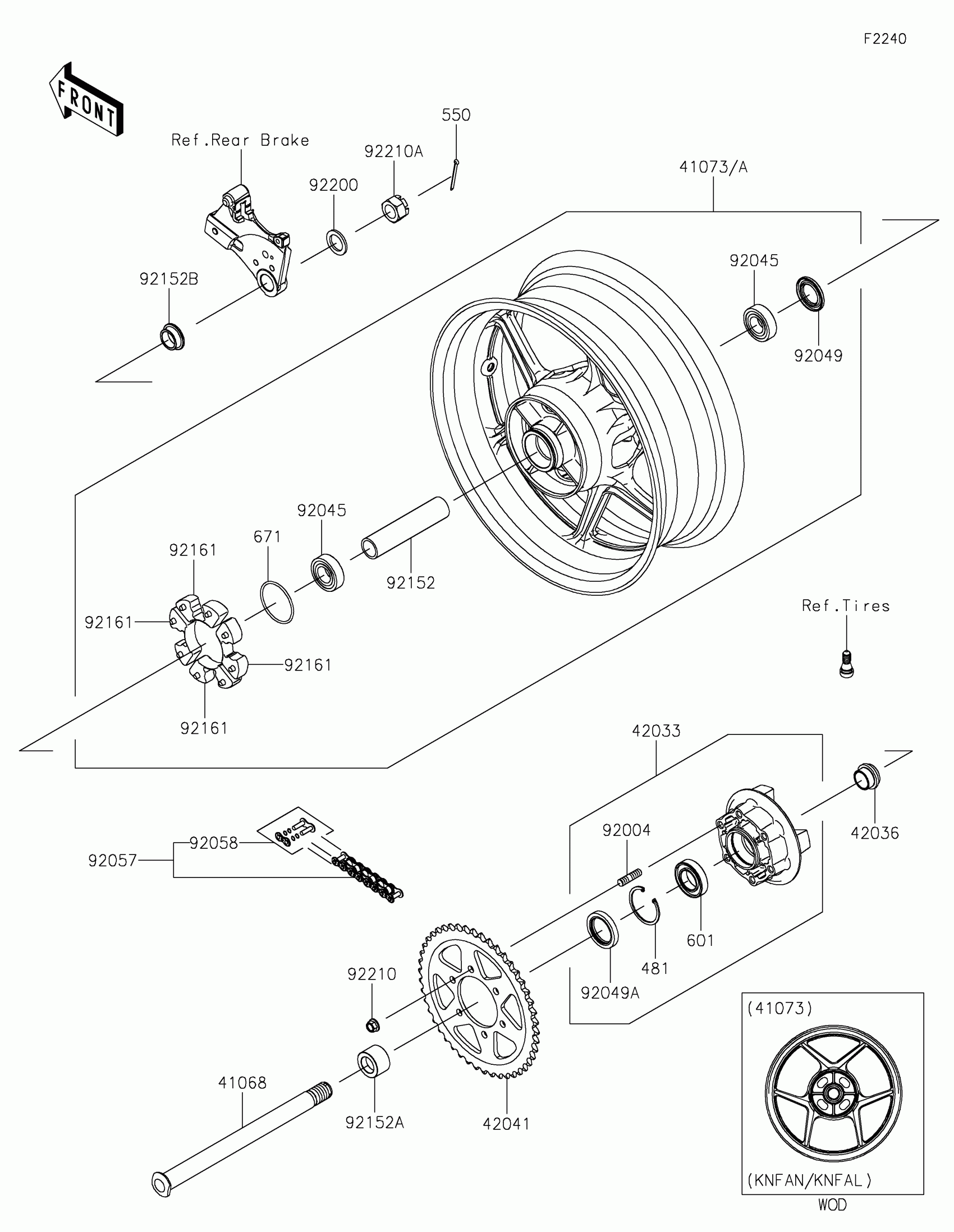

Kawasaki Z H2 Rear Wheel/Chain Diagram
#
Description
Price
41068
AXLE,RR
41068-0655
$141.70
41073
WHEEL-ASSY,RR,G.BLACK
41073-0793-18F
$966.58
41073A
WHEEL-ASSY,RR,M.P.RED
41073-0793-796
$966.58
42033
COUPLING-ASSY
42033-0593
$237.91
42036
SLEEVE,RR HUB,L=22
42036-1279
$29.08
42041
SPROCKET-HUB,46T
42041-0179
$92.75
92004
STUD,10X19
92004-0028
$8.92
92045
BEARING-BALL,25X52X15
92045-0804
$20.09
92049
SEAL-OIL,31X52X5
92049-0722
$19.92
92049A
SEAL-OIL,PJN 40 55 8
92049-1376
$17.95
92057
CHAIN,DRIVE,EK525HZX,118L
92057-0790
$382.45
92058
JOINT-CHAIN
92058-0067
$9.39
92152
COLLAR,25.2X32X144.5
92152-2639
$22.10
92152A
COLLAR,RR AXLE,LH
92152-2640
$22.55
92152B
COLLAR,RR AXLE,RH
92152-2641
$24.22
92161
DAMPER,SHOCK,RR HUB
92161-0342
$26.13
92200
WASHER,25.5X38X3.2
92200-0278
$2.61
92210
NUT,LOCK,FLANGED,10MM
92210-0276
$2.61
92210A
NUT,CASTLE,24MM
92210-0280
$13.60
481
CIRCLIP
481J5500
$8.84
550
PIN-COTTER,4.0X45
550AA4045
$1.20
601
BEARING-BALL,#6006G
601B6006G
$29.13
671
O RING,60MM
671B2560
$6.91
