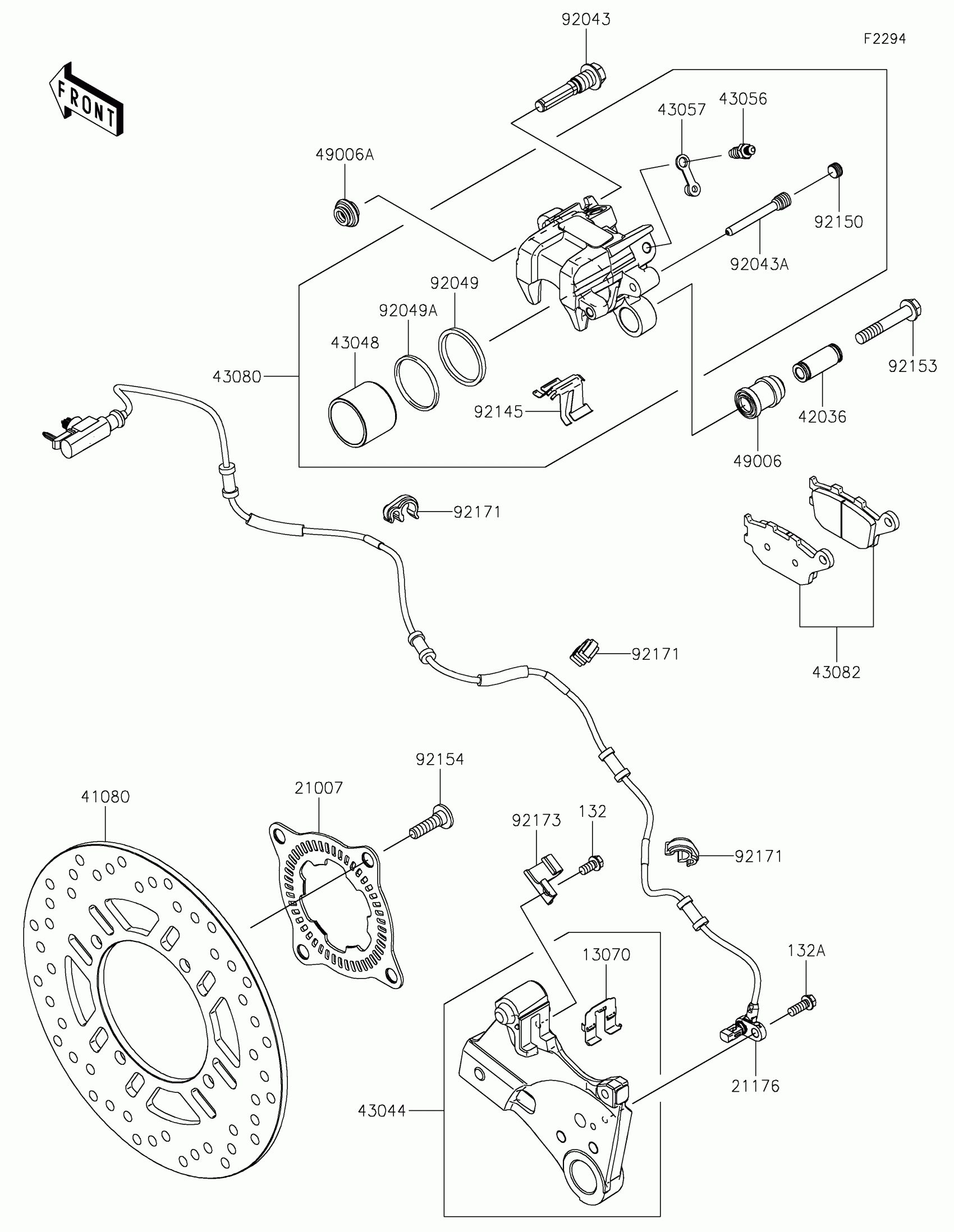

Kawasaki Z H2 Rear Brake Diagram
#
Description
Price
13070
GUIDE,BRAKE PAD
13070-0076
$11.82
21007
ROTOR,SENSOR,RR
21007-0141
$89.65
21176
SENSOR,RR,SPEED
21176-0928
$108.38
41080
DISC,RR
41080-0718
$344.95
42036
SLEEVE
42036-0050
$7.75
43044
HOLDER-COMP-CALIPER
43044-0093
$164.12
43048
PISTON-CALIPER
43048-0008
$30.46
43056
BREATHER
43056-1055
Unavailable
43057
CAP-BREATHER
43057-1001
$4.91
43080
CALIPER-SUB-ASSY,RR,BLACK
43080-0050-DJ
$341.13
43082
PAD-ASSY-BRAKE
43082-0185
$52.51
49006
BOOT
49006-0058
$13.48
49006A
BOOT,CALIPER
49006-1242
$5.46
92043
PIN
92043-0137
$13.60
92043A
PIN,HANGER
92043-1520
$7.98
92049
SEAL-OIL
92049-1449
$5.00
92049A
SEAL-OIL
92049-1450
$4.31
92145
SPRING,PAD
92145-0493
$7.69
92150
BOLT,PLUG
92150-1692
$7.84
92153
BOLT,FLANGED
92153-1826
$10.30
92154
BOLT,SOCKET,8X30
92154-1865
$4.69
92171
CLAMP,BRAKE HOSE
92171-1819
$5.54
92173
CLAMP
92173-1798
$3.57
132
BOLT-FLANGED-SMALL,6X12
132BB0612
$2.06
132A
BOLT-FLANGED-SMALL,6X16
132BB0616
$2.49
