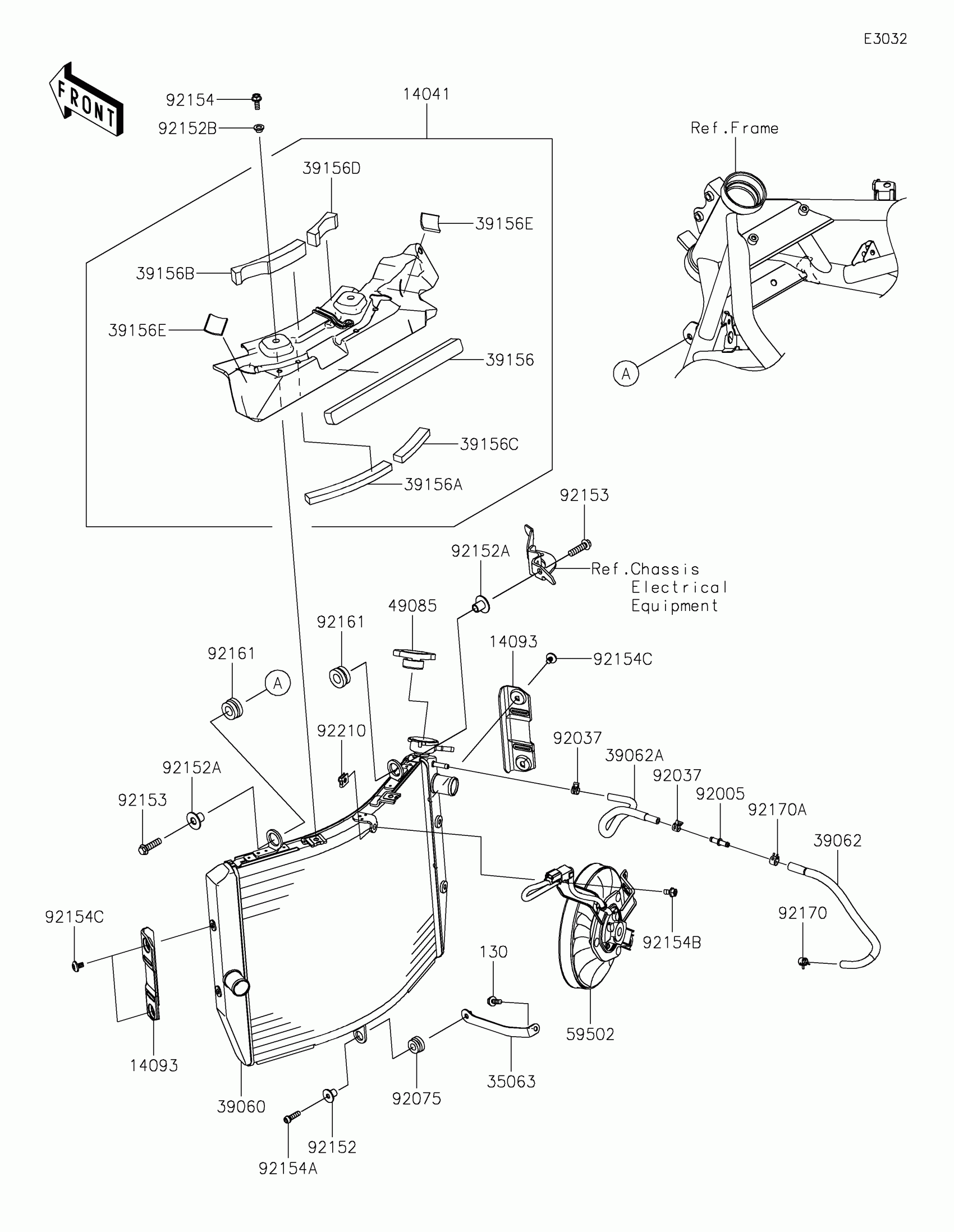

Kawasaki Z H2 Radiator Diagram
#
Description
Price
14041
COVER-COMP,HEAT
14041-0620
$89.55
14093
COVER
14093-0984
$13.48
35063
STAY
35063-1507
$3.58
39060
RADIATOR
39060-0740
$1,119.64
39062
HOSE-COOLING
39062-0869
$15.87
39062A
HOSE-COOLING
39062-0878
$12.74
39156
PAD,20X285X15
39156-1840
$3.96
39156A
PAD,141X15X10
39156-2250
$2.68
39156B
PAD
39156-2251
$4.98
39156C
PAD,80X15X10
39156-2327
$1.52
39156D
PAD
39156-2328
$2.68
39156E
PAD,27X27X3
39156-2525
$0.95
49085
CAP-ASSY-PRESSURE
49085-0006
$50.52
59502
FAN-ASSY
59502-0629
$598.57
92005
FITTING
92005-0721
$9.09
92037
CLAMP,TUBE
92037-1461
$3.88
92075
DAMPER,RUBBER
92075-1123
$5.00
92152
COLLAR,6.5X10X13.1
92152-0332
$5.65
92152A
COLLAR
92152-0439
$3.90
92152B
COLLAR
92152-2111
$5.98
92153
BOLT,FLANGED,8X30
92153-1086
$2.90
92154
BOLT,FLANGED,6X16
92154-0887
$1.63
92154A
BOLT,SOCKET,6X22
92154-1456
$1.48
92154B
BOLT
92154-1648
$1.19
92154C
BOLT,SOCKET,6X10
92154-4209
$2.10
92161
DAMPER
92161-0304
$2.97
92170
CLAMP
92170-1493
$5.00
92170A
CLAMP
92170-1872
$3.98
92210
NUT
92210-1323
$4.18
130
BOLT-FLANGED,6X16
130CC0616
$1.94
