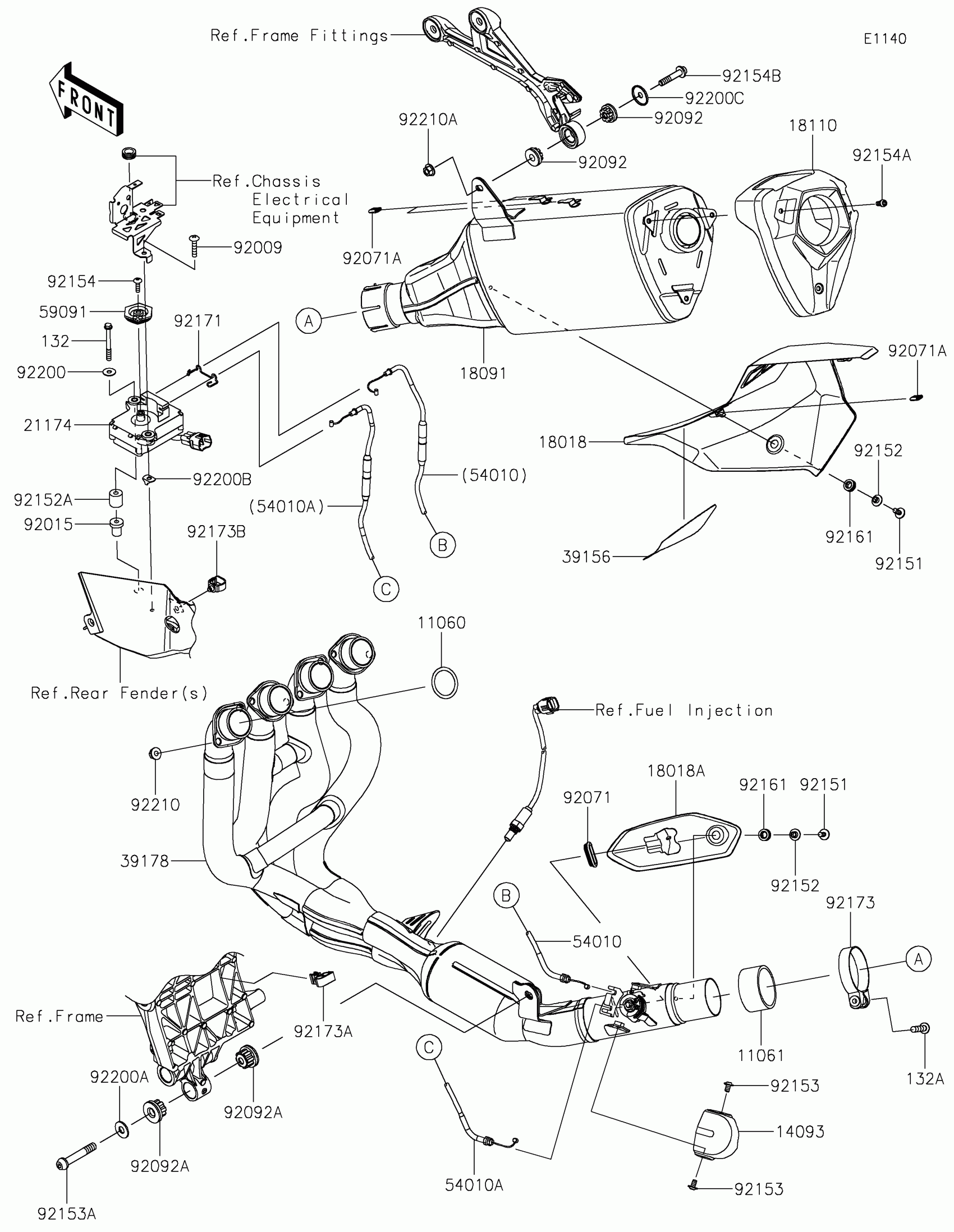

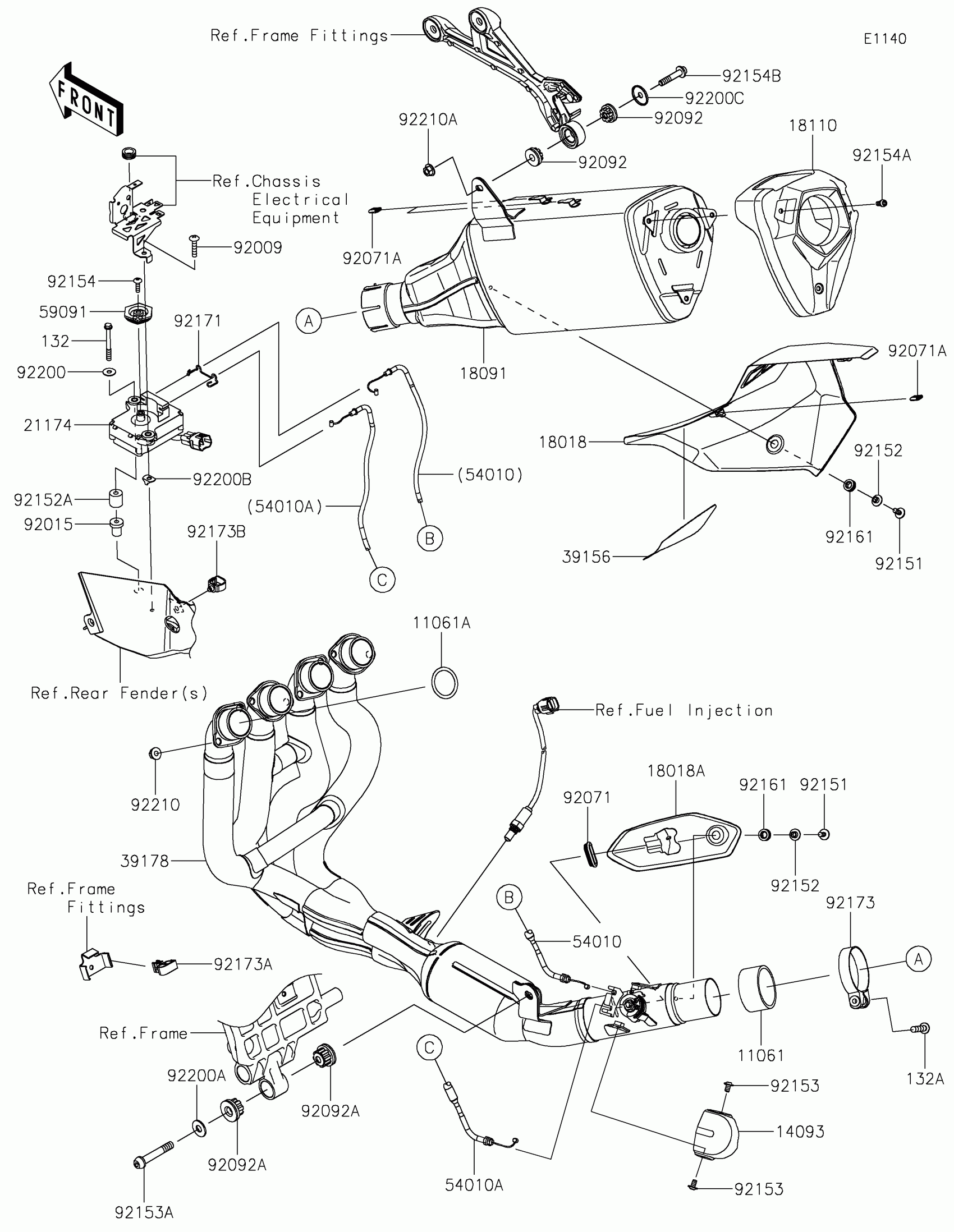

Kawasaki Z H2 Muffler(s) Diagram
#
11061
GASKET,MUFFLER JOINT
11061-0980
$29.85
11061A
GASKET,EXHAUST PIPE
11061-1387
$10.80
14093
COVER
14093-0975
$26.65
18018
PLATE-HEAT GUARD,RR
18018-0618
$493.15
18018A
PLATE-HEAT GUARD,FR
18018-0621
$97.38
18091
BODY-COMP-MUFFLER
18091-1246
$1,676.86
18110
BODY END-MUFFLER
18110-0217
$161.00
21174
MOTOR-ELECTRIC
21174-0012
$337.67
39156
PAD,HEAT GUARD,RR
39156-2593
$5.62
39178
MANIFOLD-COMP-EXHAUST
39178-0400
$1,945.00
54010
CABLE,OPEN
54010-0647
$55.77
54010A
CABLE,CLOSE
54010-0648
$53.01
59091
PULLEY
59091-0007
$22.29
92009
SCREW,TAPPING,6X30
92009-1481
$4.69
92015
NUT,RUBBER,6MM
92015-1692
$7.34
92071
GROMMET
92071-0752
$16.09
92071A
GROMMET
92071-1270
$7.22
92092
BUSHING-RUBBER
92092-0018
$11.54
92092A
BUSHING-RUBBER
92092-1081
$24.82
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92152
COLLAR
92152-2671
$9.47
92152A
COLLAR,6.5X18X18.9
92152-2704
$10.92
92153
BOLT,SOCKET,6X10
92153-1527
$1.78
92153A
BOLT,SOCKET,10X60
92153-1837
$13.60
92154
BOLT,TORX,5X18
92154-0217
$3.71
92154A
BOLT,SOCKET,6X12
92154-1453
$1.19
92154B
BOLT,SOCKET,8X40
92154-2808
$17.80
92161
DAMPER
92161-0306
$5.65
92171
CLAMP
92171-0292
$10.11
92173
CLAMP,64.5MM
92173-0284
$32.48
92173A
CLAMP,CLIP
92173-0799
$14.90
92173B
CLAMP,HOLDER CLIP
92173-0868
$3.02
92200
WASHER
92200-0078
$2.12
92200A
WASHER,10.5X25X2.0
92200-1377
$4.18
92200B
WASHER
92200-1746
$11.51
92200C
WASHER
92200-1919
$4.60
92210
NUT,8MM
92210-0076
$5.48
92210A
NUT,8MM
92210-0121
$2.26
132
BOLT-FLANGED-SMALL,6X55
132BA0655
$2.80
132A
BOLT-FLANGED-SMALL,8X40
132BC0840
$3.72
