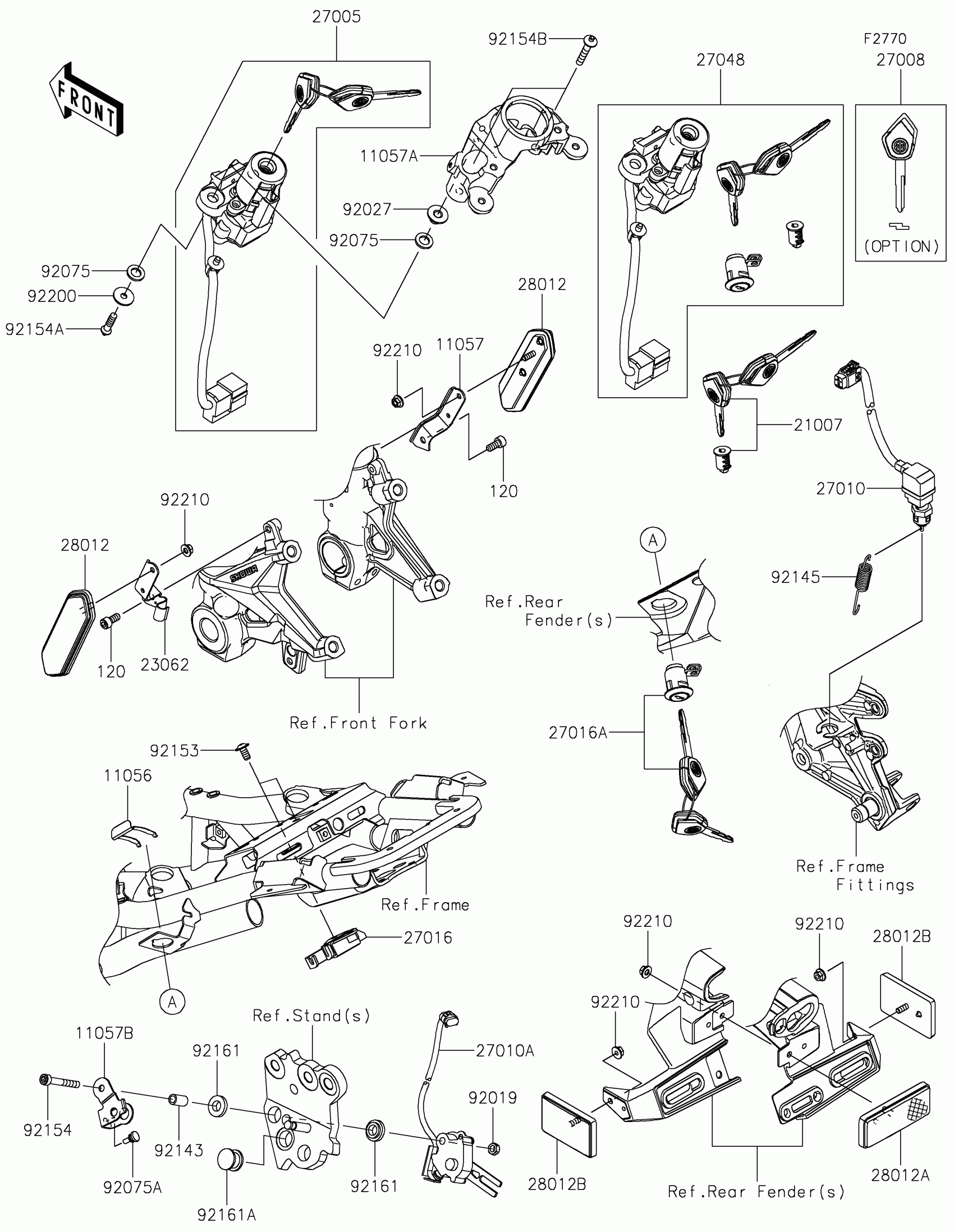

Kawasaki Z H2 Ignition Switch/Locks/Reflectors Diagram
#
Description
Price
11056
BRACKET,CLASP
11056-0238
$6.00
11057
BRACKET,REFLECTOR,RH
11057-1301
$6.38
11057A
BRACKET,IGNITION SWITCH
11057-3840
$74.79
11057B
BRACKET,SIDE STAND SWITCH
11057-4105
$6.28
21007
ROTOR,LOCK,TANK CAP
21007-5079
$97.55
23062
BRACKET-COMP,REFLECTOR,LH
23062-1291
$13.10
27005
SWITCH-ASSY-IGNITION
27005-0711
$343.65
27008
KEY-LOCK,BLANK
27008-0590
$81.11
27010
SWITCH,STOP
27010-0924
$79.03
27010A
SWITCH,SIDE STAND
27010-0934
$116.23
27016
LOCK-ASSY,SEAT STRIKER
27016-1115
$28.59
27016A
LOCK-ASSY,SEAT
27016-5389
$96.64
27048
SWITCH-ASSY
27048-5258
$704.61
28012
REFLECTOR-REFLEX,CCC
28012-0045
$16.53
28012A
REFLECTOR-REFLEX
28012-1077
$23.25
28012B
REFLECTOR-REFLEX
28012-1088
$22.46
92019
NUT,LOCK,6MM
92019-008
$4.26
92027
COLLAR
92027-1045
$5.52
92075
DAMPER
92075-1564
$5.48
92075A
DAMPER,6X10X15
92075-1808
$1.39
92143
COLLAR,6.5X9.5X17
92143-1408
$4.76
92145
SPRING
92145-1908
$8.44
92153
BOLT,SOCKET,6X12
92153-1617
$1.34
92154
BOLT,SOCKET,6X45
92154-0508
$2.67
92154A
BOLT,TORX,6X22
92154-1858
$3.94
92154B
BOLT,E TYPE TORX,6X35
92154-2207
$3.57
92161
DAMPER
92161-0117
$2.90
92161A
DAMPER
92161-0118
$2.90
92200
WASHER,6X20X1.6
92200-0212
$3.35
92210
NUT,FLANGED,5MM
92210-0007
$2.70
120
BOLT-SOCKET,6X14
120CC0614
$2.61
