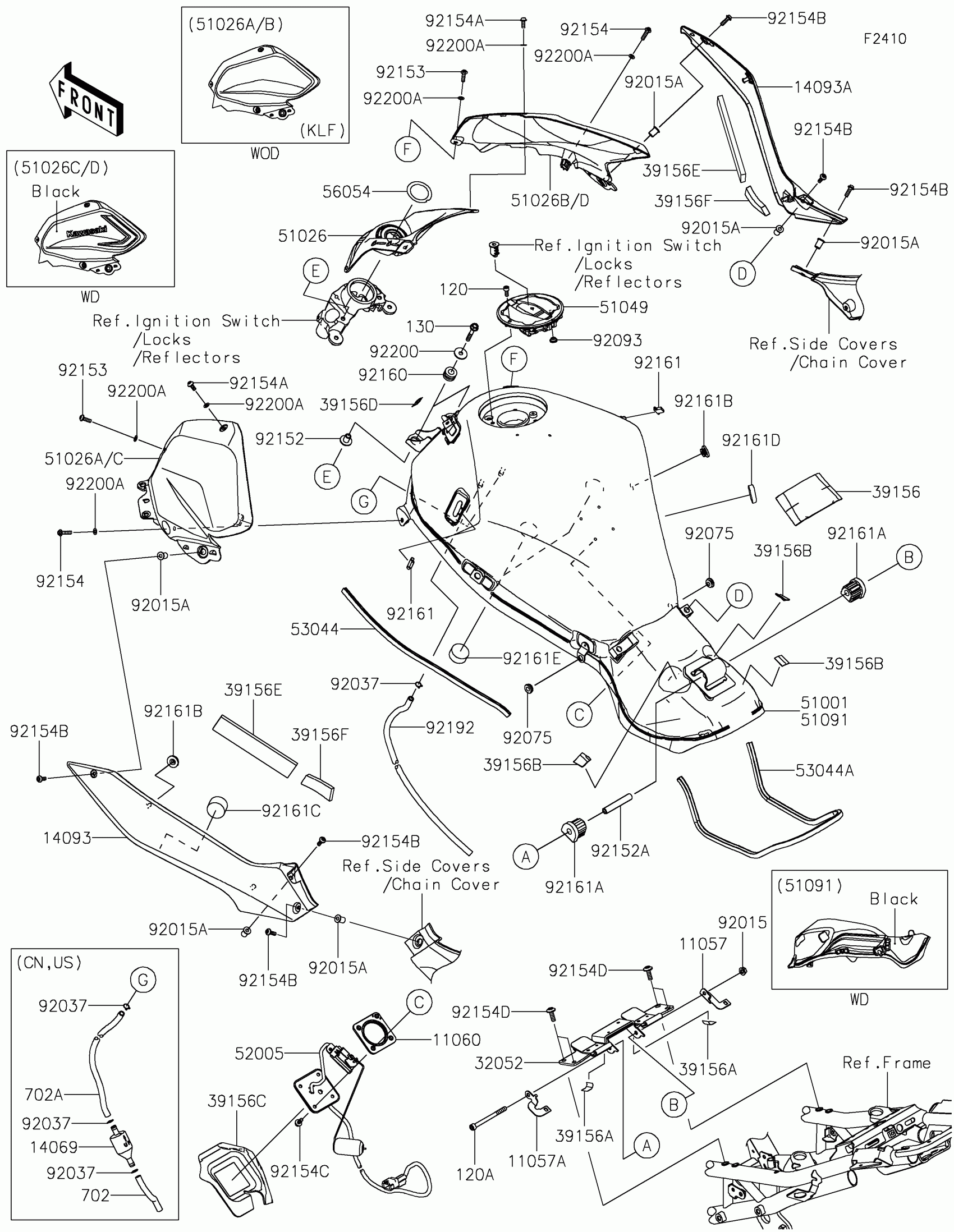

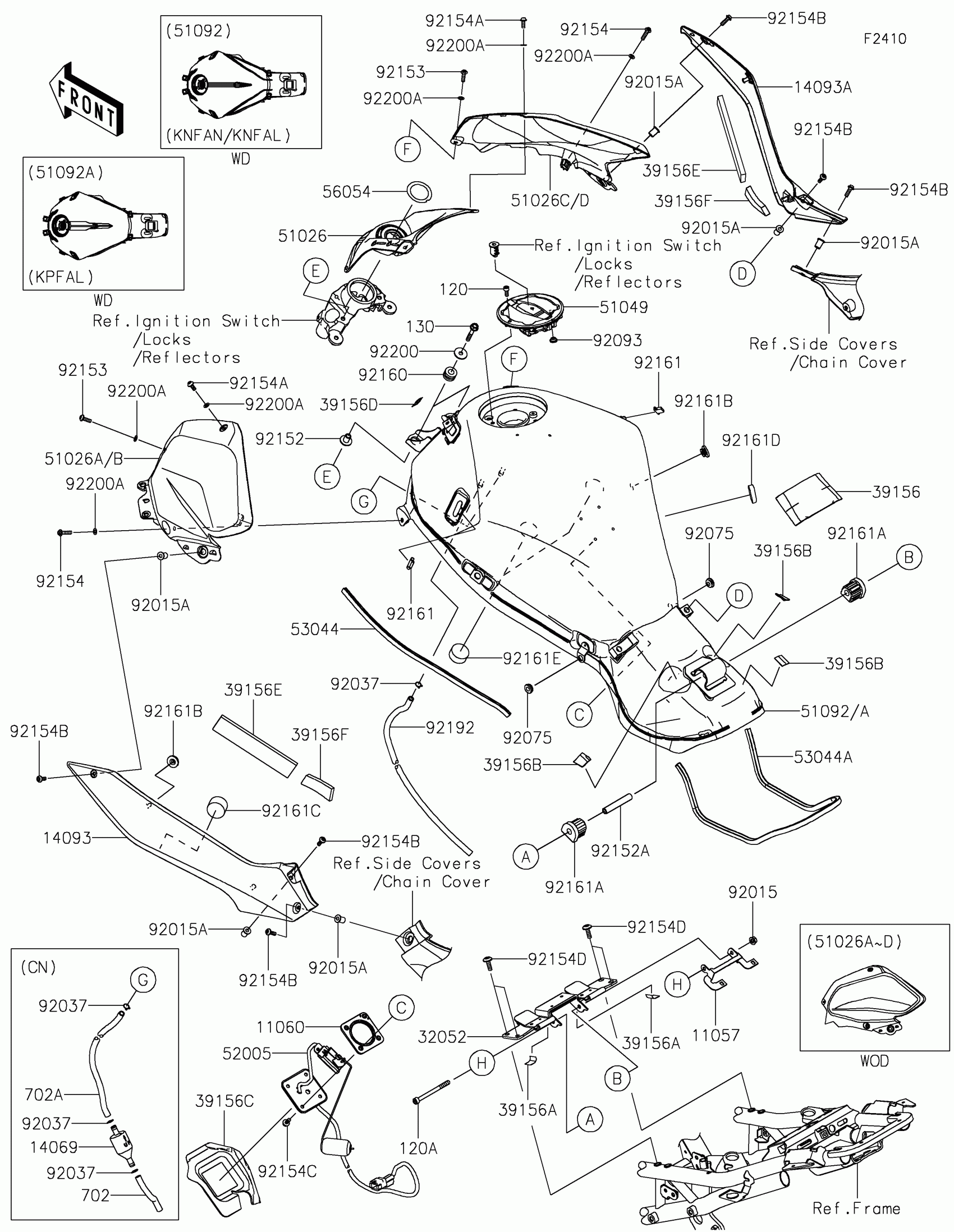

Kawasaki Z H2 Fuel Tank Diagram
#
11057
BRACKET,FUEL GAUGE CONNECTOR
11057-7412
$19.75
11060
GASKET,FUEL GAUGE
11060-1952
$21.19
14093
COVER,KNEE GRIP,LH
14093-0968
$52.47
14093A
COVER,KNEE GRIP,RH
14093-0969
$52.47
32052
BRACKET-TANK
32052-0823
$82.07
39156
PAD,RR FRM
39156-1778
$5.08
39156A
PAD,15X20X0.2
39156-1784
$1.02
39156B
PAD,20X20X1
39156-2288
$0.98
39156C
PAD,FUEL TANK
39156-2570
$12.40
39156D
PAD,22X13X0.2
39156-2591
$0.81
39156E
PAD,30X150X8
39156-2612
$5.62
39156F
PAD
39156-2659
$16.34
51026
COVER TANK,CNT
51026-0020
$19.94
51026A
COVER TANK,LH,M.D.BLACK
51026-0023-17K
$106.83
51026B
COVER TANK,LH,M.P.SILVER
51026-0023-GU
$106.83
51026C
COVER TANK,RH,M.D.BLACK
51026-0024-17K
$106.61
51026D
COVER TANK,RH,M.P.SILVER
51026-0024-GU
$106.61
51049
CAP-TANK
51049-0735
$136.31
51092
TANK-COMP-FUEL,M.D.BLACK+GRY
51092-5137-62Y
$1,388.20
51092A
TANK-COMP-FUEL,M.C.GRAY
51092-5411-51A
$1,072.24
52005
GAUGE,FUEL
52005-0772
$210.02
53044
TRIM
53044-1211
$17.95
53044A
TRIM,L=760
53044-1240
$23.89
56054
MARK,IG. SWITCH
56054-2963
$16.77
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,WELL,5MM
92015-1757
$7.29
92037
CLAMP,TUBE
92037-010
$3.92
92075
DAMPER,6X16X7
92075-1011
$7.33
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92152
COLLAR,6.3X9.5X14.1
92152-1847
$6.52
92152A
COLLAR,6X10X60.2
92152-1964
$18.44
92153
BOLT,SOCKET,5X16
92153-1244
$2.41
92154
BOLT,SOCKET,5X20
92154-0210
$2.12
92154A
BOLT,SOCKET,5X12
92154-1421
$0.95
92154B
BOLT,SOCKET,5X16
92154-1701
$1.19
92154C
BOLT,FLANGED,5X12
92154-1856
$1.78
92154D
BOLT,SOCKET,6X18
92154-2438
$2.23
92160
DAMPER,10X20X12
92160-1167
$4.69
92161
DAMPER
92161-0365
$5.33
92161A
DAMPER,FUEL TANK
92161-1737
$5.69
92161B
DAMPER,6X20X7.5
92161-1937
$1.94
92161C
DAMPER,30X20
92161-2328
$2.80
92161D
DAMPER,30X8
92161-2329
$1.83
92161E
DAMPER
92161-3790
$4.65
92192
TUBE,DRAIN,6X9X808
92192-1669
$10.62
92200
WASHER,6.5X22X1.6
92200-1087
$3.94
92200A
WASHER,5.2X10X0.5
92200-1730
$0.63
120
BOLT-SOCKET,5X12
120CA0512
$1.57
120A
BOLT-SOCKET,6X75
120CA0675
$3.29
130
BOLT-FLANGED,6X35
130BA0635
$0.94
