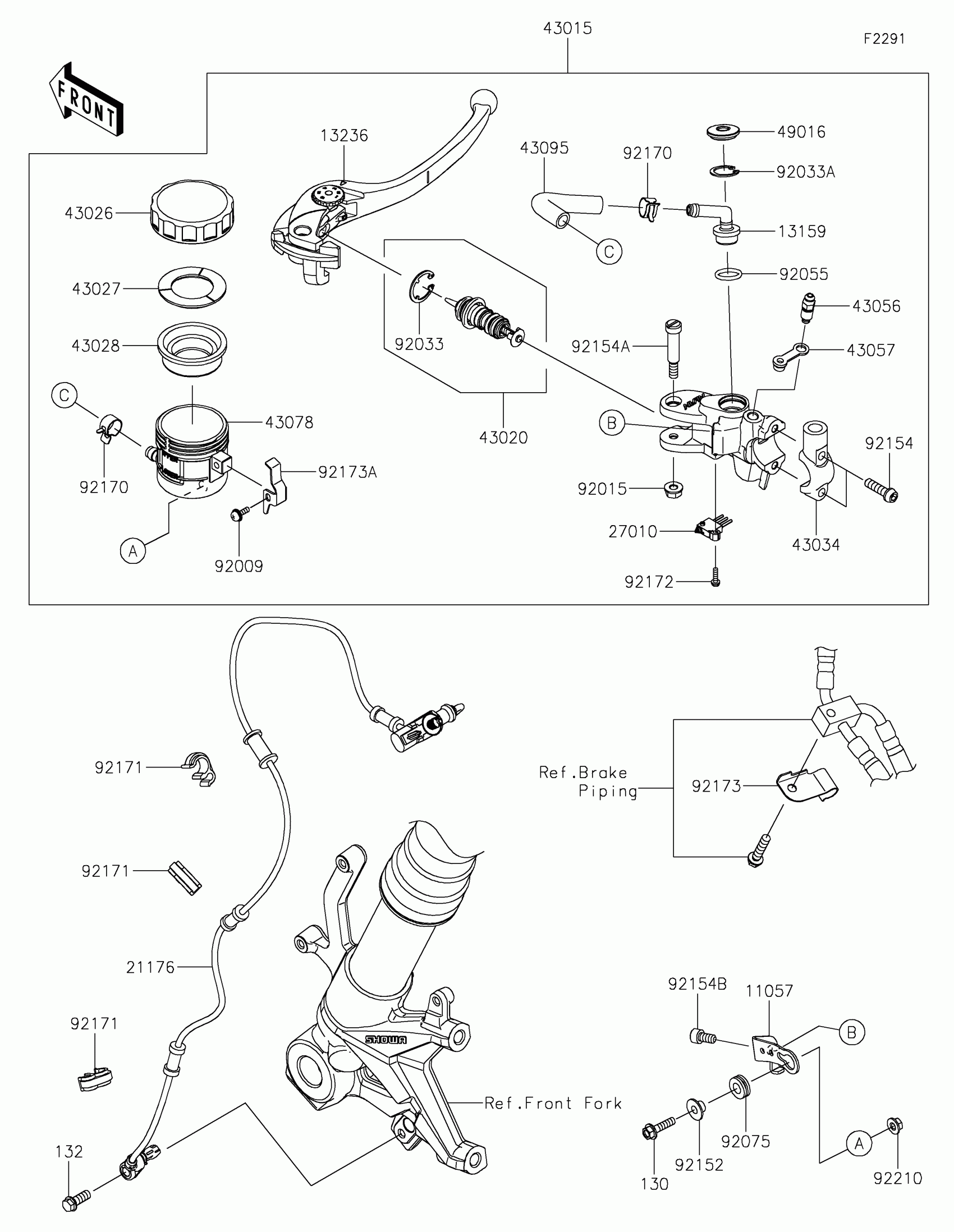

Kawasaki Z H2 Front Master Cylinder Diagram

#

Description
Price

11057

BRACKET,RESERVOIR TANK

11057-2930

$4.90

130

BOLT-FLANGED,5X20

130BB0520

$1.69

13159

CONNECTOR

13159-1061

$10.27

132

BOLT-FLANGED-SMALL,6X16

132BB0616

$2.05

13236

LEVER-COMP,FR BRAKE

13236-0802

$65.41

21176

SENSOR,FR,SPEED

21176-0927

$110.68

27010

SWITCH,CRUISE CONTROL CANCEL

27010-0931

$24.27

43015

CYLINDER-ASSY-MASTER,BRAKE

43015-0761

$443.13

43020

PISTON-COMP-BRAKE

43020-0028

$60.54

43026

CAP-BRAKE

43026-1051

$31.36

43027

PLATE-DIAPHRAGM

43027-1051

$4.22

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$15.01

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0057

$22.24

43056

BREATHER-BRAKE

43056-1056

$11.32

43057

CAP-BREATHER

43057-1001

$3.89

43078

RESERVOIR

43078-0591

$31.48

43095

HOSE-BRAKE

43095-1713

$21.19

49016

COVER-SEAL

49016-1147

$4.98

92009

SCREW

92009-1570

$2.49

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92033

RING-SNAP

92033-0034

$4.07

92033A

RING-SNAP,20.5MM

92033-1186

$3.94

92055

RING-O,14.8X2.4

92055-0741

$2.95

92075

DAMPER

92075-161

$3.72

92152

COLLAR

92152-0017

$2.29

92154

BOLT,SOCKET,6X22

92154-1724

$2.05

92154A

BOLT,LEVER

92154-1912

$7.69

92154B

BOLT,SOCKET,6X8

92154-2914

$1.81

92170

CLAMP,HOSE

92170-1091

$3.97

92171

CLAMP,BRAKE HOSE

92171-1819

$4.85

92172

SCREW

92172-1243

$0.69

92173

CLAMP

92173-0086

$4.46

92173A

CLAMP

92173-1790

$11.07

92210

NUT,FLANGED,5MM

92210-0007

$2.20
