Description

Price

11065

CAP,FORK,LH

11065-1336

$127.34

11065A

CAP,FORK,RH

11065-1337

$127.34

13235

GUIDE-COMP

13235-0014

$91.70

44008

PIPE-FORK OUTER

44008-0094

$503.26

44013

PIPE-FORK INNER,LH

44013-0349

$733.24

44013A

PIPE-FORK INNER,RH

44013-0350

$719.55

44023

CYLINDER-SET-FORK

44023-0157

$578.17

44023A

CYLINDER-SET-FORK

44023-0158

$328.87

44026

SPRING-FRONT FORK

44026-0240

$71.93

44037

HOLDER-FORK UNDER

44037-0195

$924.75

44039

HOLDER-FORK UPPER

44039-0197

$321.19

44065

BUSHING-FRONT FORK

44065-0026

$25.51

44065A

BUSHING-FRONT FORK,SLIDE

44065-0038

$9.64

44065B

BUSHING-FRONT FORK

44065-0039

$6.57

44065C

BUSHING-FRONT FORK

44065-0040

$19.99

44071

DAMPER-ASSY,FORK,LH

44071-1399

$1,757.69

44071A

DAMPER-ASSY,FORK,RH

44071-1400

$1,469.09

92026

SPACER

92026-0165

$3.65

92033

RING-SNAP

92033-0729

$7.78

92049

SEAL-OIL

92049-0119

$26.40

92055

RING-O

92055-0215

$5.33

92055A

RING-O,FORK CAP

92055-1497

$5.93

92093

SEAL,DUST

92093-0042

$24.99

92152

COLLAR

92152-0930

$10.60

92152A

COLLAR

92152-2654

$17.14

92153

BOLT

92153-0853

$7.83

92153A

BOLT,SOCKET,8X35

92153-0854

$7.83

92153B

BOLT

92153-0855

$5.65

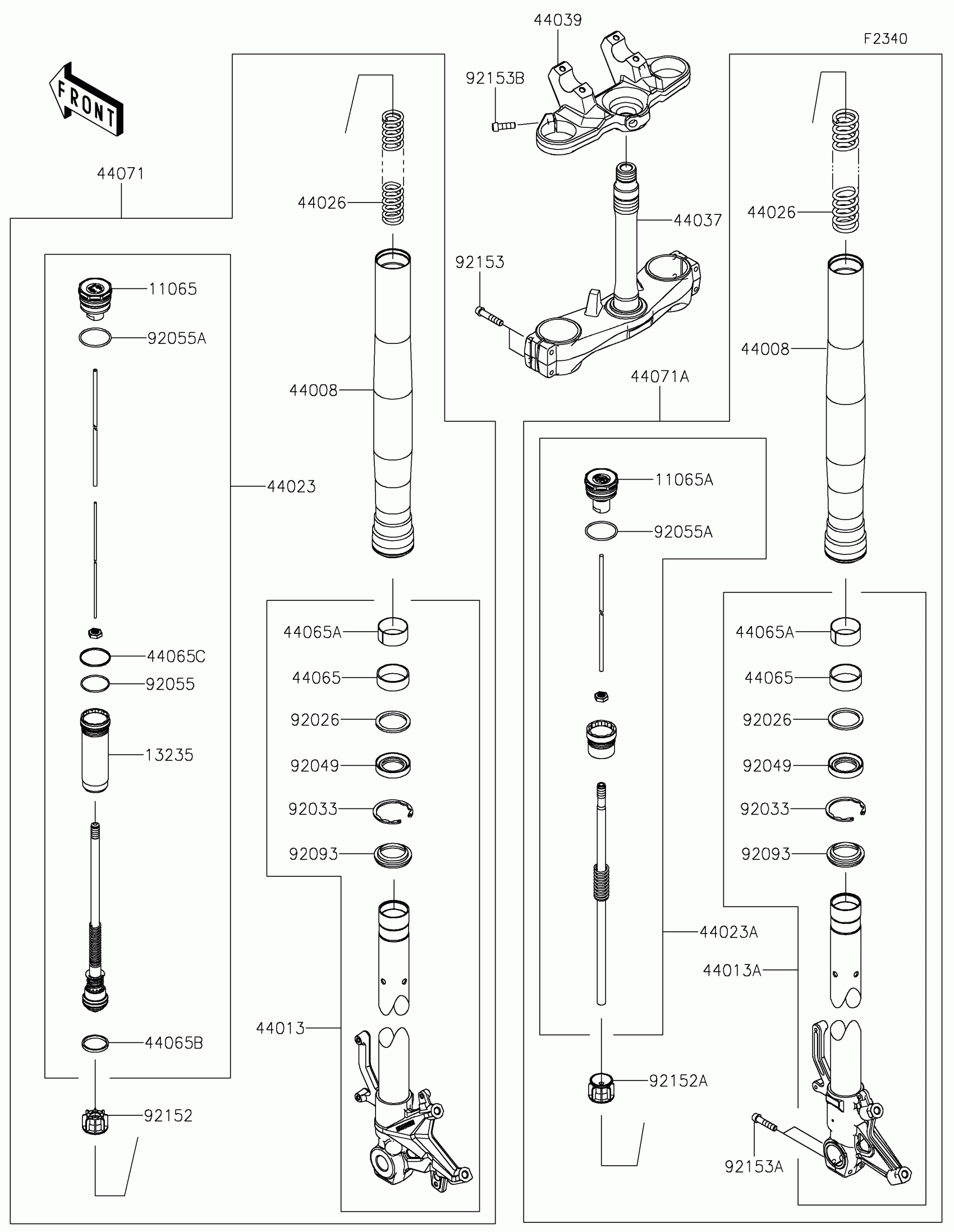

Kawasaki Z H2 Front Fork Diagram

CAP,FORK,LH

CAP,FORK,RH

GUIDE-COMP

PIPE-FORK OUTER

PIPE-FORK INNER,LH

PIPE-FORK INNER,RH

CYLINDER-SET-FORK

CYLINDER-SET-FORK

SPRING-FRONT FORK

HOLDER-FORK UNDER

HOLDER-FORK UPPER

BUSHING-FRONT FORK

BUSHING-FRONT FORK,SLIDE

BUSHING-FRONT FORK

BUSHING-FRONT FORK

DAMPER-ASSY,FORK,LH

DAMPER-ASSY,FORK,RH

SPACER

RING-SNAP

SEAL-OIL

RING-O

RING-O,FORK CAP

SEAL,DUST

COLLAR

COLLAR

BOLT

BOLT,SOCKET,8X35

BOLT
