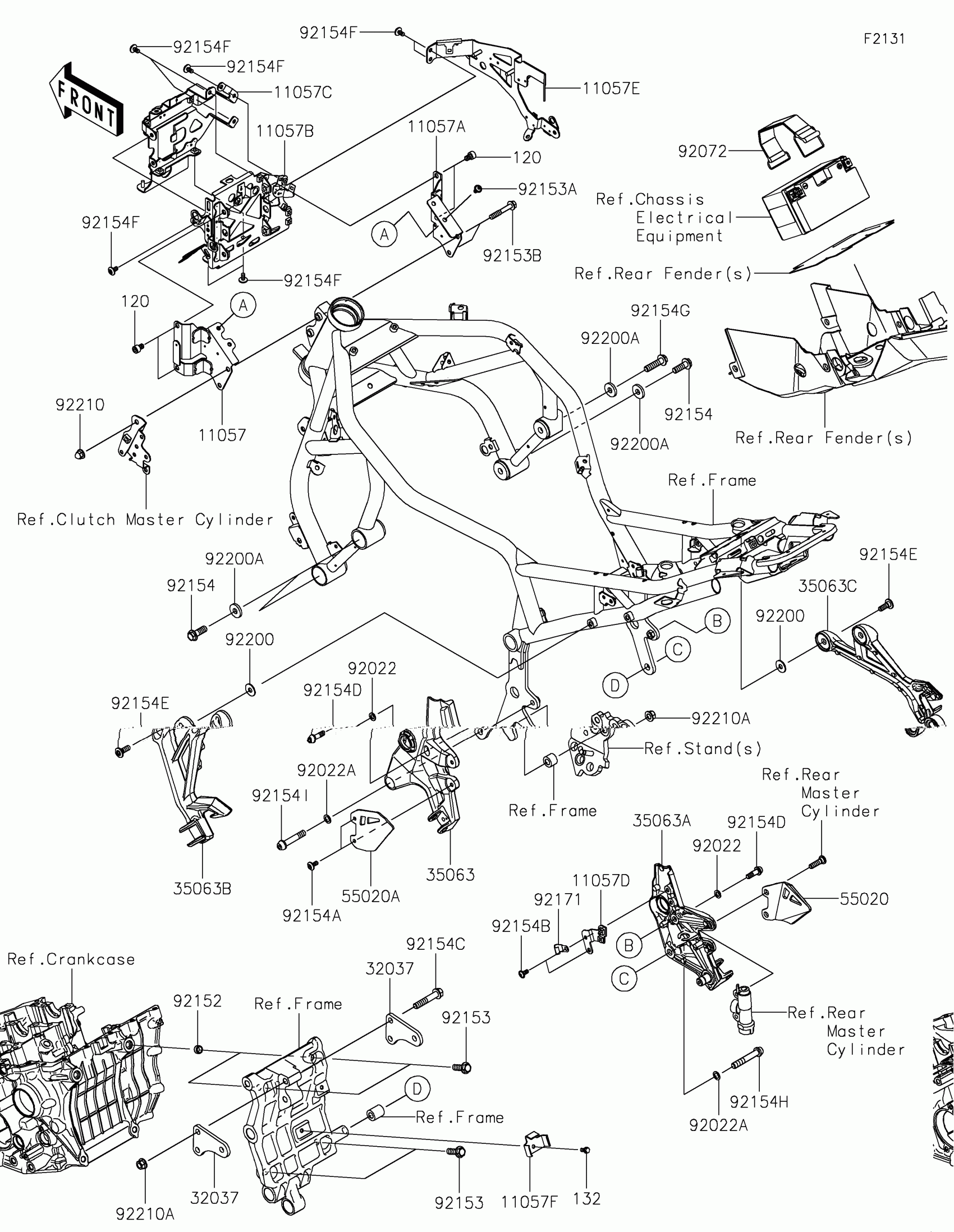

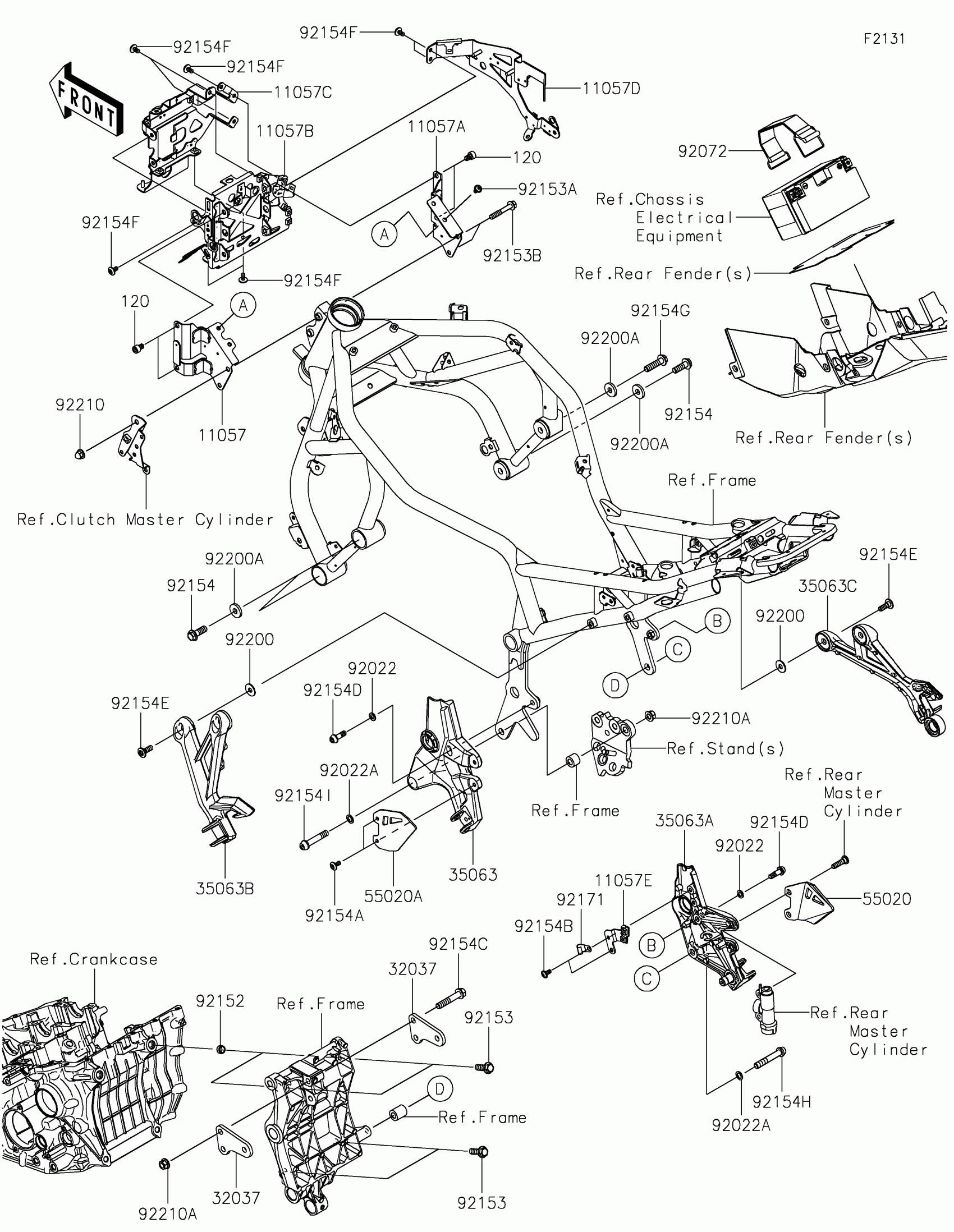

Kawasaki Z H2 Frame Fittings Diagram

#

Description
Price

11057

BRACKET,HEAD LAMP,RR,LH

11057-2920

$72.73

11057A

BRACKET,HEAD LAMP,RR,RH

11057-2921

$69.75

11057B

BRACKET,HEAD LAMP,MID

11057-2922

$135.70

11057C

BRACKET,HEAD LAMP,FR

11057-2923

$103.23

11057D

BRACKET,SHROUD,LH

11057-2924

$94.94

11057E

BRACKET,RR RESERVOIR TANK

11057-2925

$4.90

120

BOLT-SOCKET,8X12

120CA0812

$3.48

32037

BRACKET-SHOCKABSORBER

32037-0429

$20.53

35063

STAY,STEP,FR,LH,F.S.BLACK

35063-1495-18R

$91.69

35063A

STAY,STEP,FR,RH,F.S.BLACK

35063-1496-18R

$104.49

35063B

STAY,STEP,RR,LH,F.S.BLACK

35063-1497-18R

$83.51

35063C

STAY,STEP,RR,RH,F.S.BLACK

35063-1498-18R

$87.06

55020

GUARD,FR STEP,RH

55020-1944

$44.77

55020A

GUARD,FR STEP,LH

55020-2284

$43.29

92022

WASHER,8.5X14.5X1.6

92022-1470

$3.29

92022A

WASHER,10.2X16X1

92022-1829

$3.29

92072

BAND,BATTERY

92072-0878

$22.80

92152

COLLAR,DOWEL PIN

92152-0679

$5.80

92153

BOLT,FLANGED,10X30

92153-0801

$3.16

92153A

BOLT,SOCKET,6X12

92153-1617

$1.04

92153B

BOLT,8X50

92153-7073

$1.88

92154

BOLT,FLANGED,10X30

92154-0543

$7.18

92154A

BOLT,SOCKET,6X14

92154-0745

$1.66

92154B

BOLT,SOCKET,6X14

92154-0856

$1.43

92154C

BOLT,FLANGED,10X54

92154-0903

$7.32

92154D

BOLT,SOCKET,8X25

92154-1557

$14.58

92154E

BOLT,SOCKET,8X23

92154-1901

$2.75

92154F

BOLT,SOCKET,6X12

92154-2706

$1.32

92154G

BOLT,FLANGED,10X40

92154-2924

$5.56

92154H

BOLT,SOCKET,10X60

92154-4044

$14.24

92154I

BOLT,SOCKET,10X52

92154-4045

$11.41

92171

CLAMP

92171-0813

$8.46

92200

WASHER,8.5X23X1.6

92200-1936

$2.02

92200A

WASHER,10.5X26X4

92200-3798

$3.54

92210

NUT,CAP,8MM

92210-1132

$3.19

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
