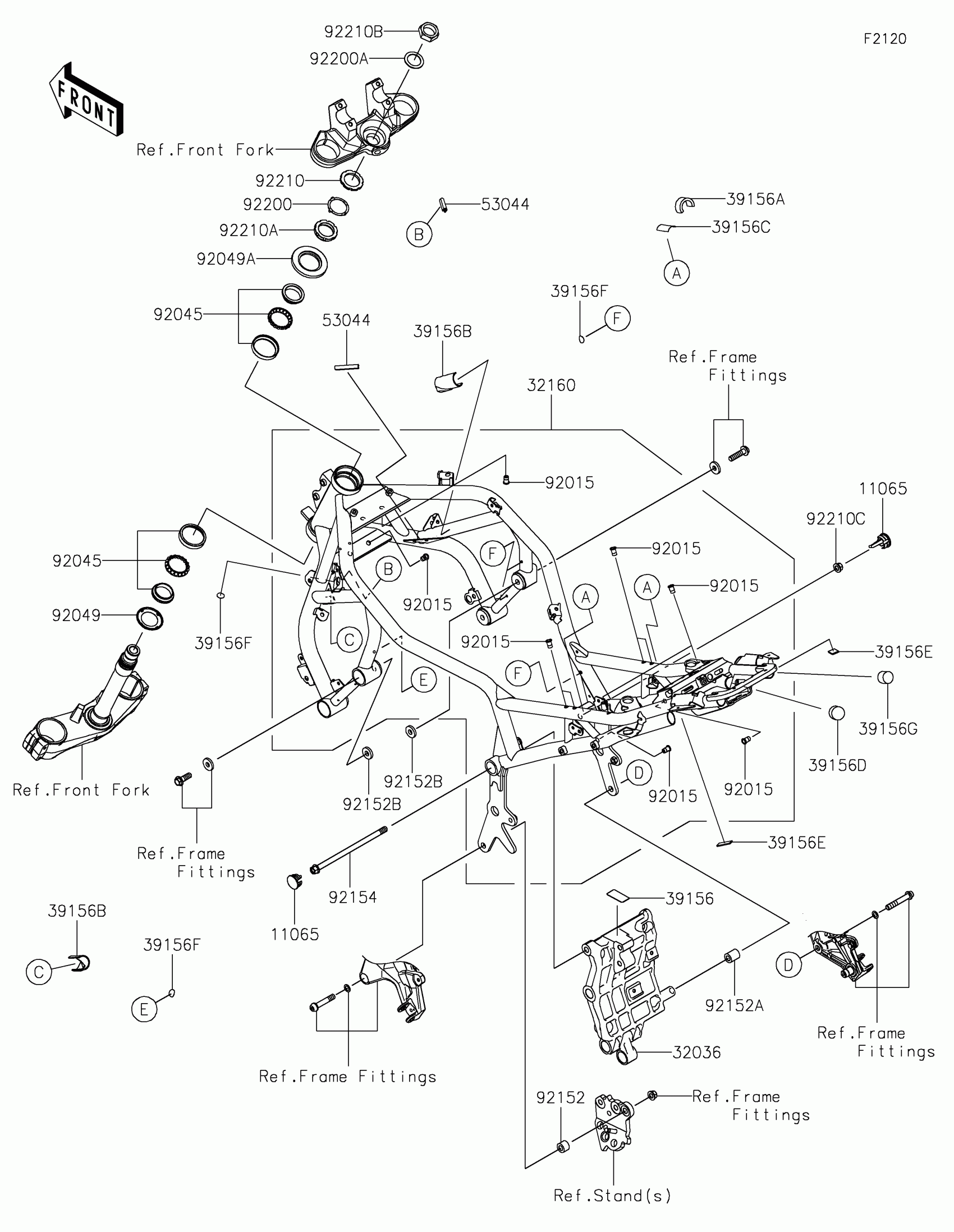

Kawasaki Z H2 Frame Diagram
#
Description
Price
11065
CAP,27.4MM
11065-0987
$9.66
32036
BRACKET-SWINGARM,M.F.S.BLACK
32036-0406-46R
$560.35
32160
FRAME-COMP,M.P.RED
32160-1914-796
$4,129.21
39156
PAD,22X45
39156-1896
$7.32
39156A
PAD,20X50X5
39156-2191
$1.27
39156B
PAD,50X50X2
39156-2235
$1.81
39156C
PAD,35X25X0.2
39156-2449
$1.52
39156D
PAD,27X20
39156-2500
$4.70
39156E
PAD,30X14X2
39156-2568
$1.21
39156F
PAD
39156-2747
$3.91
39156G
PAD,24.2X20
39156-2777
$3.05
53044
TRIM,L=48
53044-1324
$3.69
92015
NUT,POP,6MM,L=15
92015-1791
$4.69
92045
BEARING-BALL,SF07A17PX1V1
92045-1384
$45.69
92049
SEAL-OIL,DS35X55X4
92049-0022
$17.39
92049A
SEAL-OIL,XMH 43 75 6.4J
92049-1382
$24.41
92152
COLLAR,10.2X20X14.7
92152-2642
$10.70
92152A
COLLAR,10.2X20X23.7
92152-2643
$12.14
92152B
COLLAR,10.5X25X4.5
92152-2644
$9.23
92154
BOLT,FLANGED,10X200
92154-1660
$31.97
92200
WASHER
92200-0036
$5.00
92200A
WASHER,28.5X40X1.6
92200-0595
$4.10
92210
NUT,35MM
92210-0095
$18.25
92210A
NUT,35MM
92210-0096
$19.83
92210B
NUT,28MM
92210-0209
$18.57
92210C
NUT,LOCK,FLANGED,10MM
92210-1139
$4.18
